Imagine a growing company that runs customer applications, databases, internal business software, virtual machines, and storage systems inside its data centre. A year ago, a few racks handled everything. Today, the IT team keeps adding servers to keep up with demand.
As the estate grows, these systems talk to each other far more often. The order system queries a database. The database reads from storage. A virtual machine moves to another host. Users start to notice slower applications, and the IT team sees more traffic flowing between servers. Every new rack also makes network planning a little harder.
Many businesses focus on server capacity and storage when they expand. The connections between those systems matter just as much. A network has to move information efficiently today and leave room for growth tomorrow.
That raises a practical question: How can a data centre connect more servers without making the network unnecessarily complicated or creating traffic bottlenecks?
Spine-leaf architecture is one popular answer. It organises data centre connectivity into two switch layers with a clear, repeatable pattern. This guide explains how it works in plain language.
One caution first. Not every slow application points to a network problem. Server resources, storage performance, software, and application design all play a part. Check those before you redesign anything.
What Is Spine-Leaf Architecture?
Spine-leaf architecture is a data centre network design built around two main switch layers: leaf switches and spine switches.
Think of a transport network. Leaf switches are like local stations where passengers (your servers and storage) get on and off. Spine switches are like the main interchanges that link those stations to each other. Anyone travelling from one local station to another passes through an interchange.
The analogy helps you picture the design, but it has limits. Real networks forward traffic according to their configuration and routing behaviour, not like trains on a timetable.
Here are the two components:
- Leaf switches: Connect servers, storage systems, and other endpoints to the network.
- Spine switches: Connect the leaf switches and provide paths for traffic moving between them.

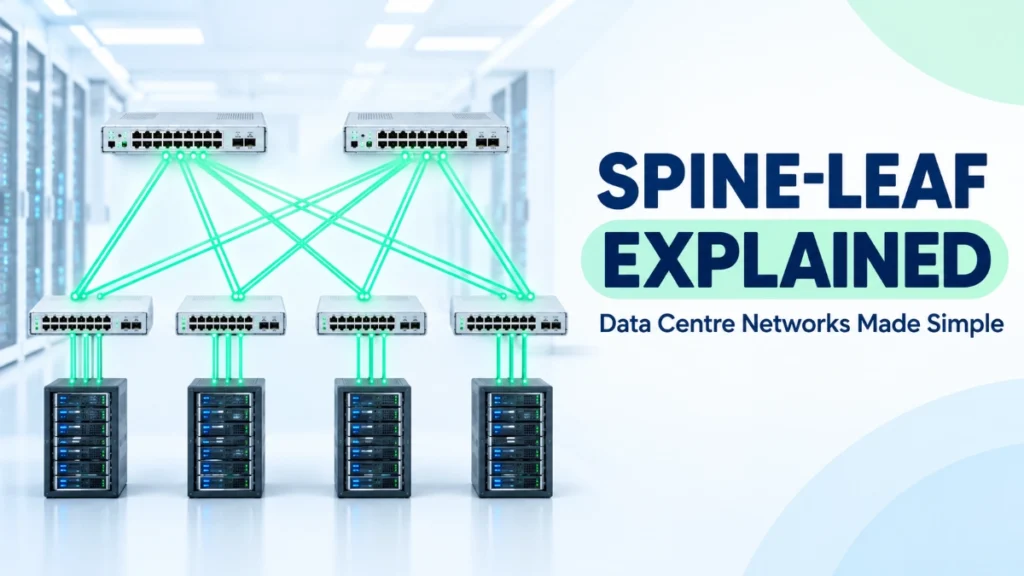

In a typical routed spine-leaf fabric, each leaf switch connects to each spine switch. (A “fabric” is simply the interconnected set of switches that carries traffic.) This creates multiple available paths between leaf switches and supports predictable connectivity as the network grows.
Implementation details vary. Some designs use Layer 3 routing and equal-cost multipath routing to spread traffic across the available paths. Others make different choices. We will cover the deeper details in the sections below.
What Are Leaf Switches and Spine Switches?
The two roles are easy to confuse at first, so let’s take them one at a time.
Leaf switches: connecting servers and devices
Leaf switches sit closest to your workloads. They connect to servers, storage systems, hypervisors (the software that runs virtual machines), and other data centre endpoints. They act as the entry and exit points for traffic within the fabric.
Here is an example. An application server connected to one leaf switch needs data from a database server connected to a different leaf switch. The network must provide a path between them, and the leaf switches start and finish that journey.
Choosing leaf switches depends on several factors:
- How many endpoints you need to connect.
- The port speeds those endpoints require.
- Uplink capacity towards the spine layer.
- Interface compatibility.
- Supported features.
Spine Switches: Connecting the leaf layer
Spine switches connect to the leaf switches and carry traffic across the network. In a common full-mesh leaf-spine design, every leaf switch connects to every spine switch.
That arrangement gives traffic multiple paths between any two leaf switches. If one path is busy, others may be available. If one spine switch goes offline, the remaining spines can still connect the leaves, although capacity may drop.
A simple comparison sums it up: leaf switches connect endpoints, and spine switches connect the leaf layer.
Two clarifications matter here. Spine switches do not always connect directly to external networks, and not every network uses exactly the same physical arrangement. External connectivity depends on the overall design.
How Does Spine-Leaf Architecture Work?
A realistic example makes this clearer than any definition. Imagine an application server connected to Leaf Switch A and a database server connected to Leaf Switch B.
- The application server sends a request for information.
- Leaf Switch A forwards the traffic towards an appropriate spine switch.
- The spine switch forwards the traffic towards Leaf Switch B.
- Leaf Switch B delivers the traffic to the database server.
- The database response travels back through the network, following the routing and forwarding decisions in place.
Notice that the traffic crosses one spine layer between two leaf switches. In common designs, that pattern repeats for traffic between any pair of leaf switches.
Now consider two servers connected to the same leaf switch. Their traffic may stay local and never cross the spine layer.
The exact forwarding path depends on your network configuration. Do not assume every packet follows one fixed route.
This is where multiple paths come in. In many routed designs, Equal-Cost Multipath (ECMP) lets network devices use several available routes that have the same cost. In plain language, it spreads traffic across more than one equal route instead of forcing everything down a single one. ECMP is common in routed fabrics, but it is not mandatory in every design. The IETF’s ECMP analysis (RFC 2992) describes the underlying idea.
You do not need to memorise protocols to follow the journey. Remember the pattern: endpoint, leaf, spine, leaf, endpoint.
What Is East-West Traffic, and Why Does It Matter?
East-west traffic is communication between systems inside a data centre. North-south traffic generally describes traffic entering or leaving the data centre, such as a customer reaching your website.
A single user request shows why east-west traffic matters. A web application may need to contact an application server, a database, a cache, and a storage system before it can respond. One click outside can trigger many conversations inside.
Several trends raise the importance of this internal traffic:
- Modern applications often rely on multiple servers and services.
- Virtualised environments can generate frequent communication between workloads.
- Distributed applications may move data between several systems.
- Network congestion or limited capacity can affect application performance.
Spine-leaf architecture suits this pattern because it can provide multiple paths and support predictable connectivity between leaf switches. Servers on different leaves reach each other through the spine layer in a consistent way.
Be realistic about the limits, though. Spine-leaf does not automatically eliminate congestion or guarantee low latency. Actual results depend on capacity, traffic distribution, oversubscription, routing, configuration and the workloads involved.
Why Do Data Centres Use Spine-Leaf Architecture?
Data centre teams choose this design for practical reasons. None of these benefits is automatic, and each one depends on good design.
- Predictable network paths: Traffic between different leaf switches commonly crosses a consistent number of switch layers. That makes behaviour easier to reason about.
- Scalability: Teams can add leaf switches to connect more endpoints, subject to available spine capacity and design limits.
- Multiple paths: Connecting each leaf to multiple spine switches can provide path diversity.
- Support for east-west traffic: The design suits environments where servers frequently talk to other servers.
- Simpler expansion patterns: A well-planned design can make growth more systematic than an improvised collection of connections.
These benefits come with responsibilities. A spine-leaf fabric still needs suitable routing, monitoring, capacity planning, and failure handling. RFC 7938, which documents routing practices for large-scale data centres, shows how much operational thinking goes into running these fabrics.
Spine-leaf is also not universally superior to other designs. It is a strong fit for certain workloads, and other architectures remain valid for different needs.
How Does Spine-Leaf Architecture Scale as a Data Centre Grows?
Picture a business that starts with a handful of racks. Over two years, it adds virtualisation hosts, a new database cluster, and more storage. With spine-leaf, the team can often add leaf switches to connect the new endpoints.
But each new leaf brings requirements. It needs enough uplink capacity, and the spine layer needs enough ports and forwarding capacity to support the extra connections and traffic. Adding leaf switches alone does not guarantee the network can handle more load.
Plan around these factors:
- Spine port availability
- Leaf-to-spine link speeds
- Oversubscription between endpoint-facing ports and uplinks
- Traffic patterns and peak workloads
- Redundancy and future expansion requirements
Oversubscription means the total potential capacity of the connected endpoint ports exceeds the capacity available through their shared uplinks. Some oversubscription is normal and acceptable. Too much for your workload can create bottlenecks at peak times.
This is why universal port-count rules and fixed formulas rarely help. The right numbers depend on your actual network, so scaling works best when you plan the spine layer’s headroom before you need it.
Spine-Leaf vs Three-Tier Architecture
A three-tier architecture commonly uses access, aggregation (or distribution), and core layers. Spine-leaf uses leaf and spine layers and is often designed to provide consistent paths between leaf switches.
Here is a simple comparison:
| Factor | Spine-leaf | Three-tier |
|---|---|---|
| Basic structure | Leaf and spine layers, commonly with each leaf connected to each spine | Access, aggregation or distribution, and core layers |
| Typical traffic patterns supported | Suits substantial east-west traffic | Suits traffic that flows mainly between users and central resources (north-south) |
| Network expansion | Often grows by adding leaf switches, within spine capacity | Often grows by extending access and aggregation layers |
| Design considerations | Oversubscription, spine ports, routing and ECMP design | Uplink capacity at aggregation and core, loop prevention |
| Suitable environments | Data centres with frequent server-to-server communication and regular expansion | Established environments and other network requirements |
Spine-leaf often suits data centres with heavy east-west traffic and frequent expansion. A three-tier design can still work well for many established environments.
Neither architecture wins in every situation. The right choice depends on scale, workloads, operational requirements, budget, and existing infrastructure.
Common Spine-Leaf Design Mistakes
Most problems come from planning gaps, not from the architecture itself. Watch for these:
- Adding leaf switches without checking spine port availability. Confirm free spine ports before you order hardware.
- Underestimating east-west traffic. Measure internal traffic, not just internet-facing traffic.
- Ignoring uplink oversubscription. Check the ratio between endpoint capacity and uplink capacity.
- Choosing link speeds without considering workloads. Match speeds to what your applications need.
- Failing to plan for link or switch failures. Ask what happens to capacity when one spine goes down.
- Overlooking routing and ECMP configuration. Poor configuration can leave available paths underused.
- Neglecting monitoring, documentation, and troubleshooting. You cannot fix what you cannot see.
- Assuming faster switches automatically improve application performance. Applications may be limited elsewhere.
The practical takeaway: design for how your traffic actually behaves, then verify it after deployment.
A Simple Spine-Leaf Planning Example
This is a hypothetical example, not a recommended design.
An Indian enterprise is expanding its data centre to run more business applications and databases. Here is how its IT team might approach planning:
- Identify communication needs. List which servers and storage systems must talk to each other.
- Estimate traffic. Measure normal and peak loads.
- Size the endpoints. Count endpoint connections and choose suitable link speeds.
- Plan leaf-to-spine connectivity. Decide how leaf switches will connect to the spine layer.
- Evaluate capacity. Check oversubscription and available headroom.
- Consider failure scenarios. Plan redundant paths and test what happens when a link or switch fails.
- Prepare to operate and grow. Set up monitoring and write a future expansion plan.
Notice what the example leaves out: switch counts, port speeds, and products. Those choices need real workload data. The goal is to show how to approach planning, not to present a universal design.
Frequently Asked Questions
It is a data centre network design with two switch layers. Leaf switches connect servers and storage, and spine switches connect the leaf switches to each other.
A leaf switch connects endpoints such as servers and storage to the network. A spine switch connects the leaf switches and carries traffic between them.
East-west traffic is communication between servers and workloads inside the data centre. Examples include an application server querying a database or a virtual machine accessing storage.
Teams can often add leaf switches to connect more endpoints. This works only if the spine layer has enough ports and forwarding capacity, and the leaf uplinks have enough bandwidth.
No. It can provide useful paths and capacity options, but congestion still depends on design, oversubscription, traffic distribution, and configuration.
Conclusion
Spine-leaf architecture connects servers and other endpoints through leaf switches, while spine switches provide connectivity between those leaf switches. That simple pattern explains why the design attracts attention in modern data centres. It can support east-west traffic, provide multiple paths, and offer a systematic way to expand when designed correctly.
Good results still depend on capacity planning, suitable link speeds, routing, redundancy, monitoring, and workload requirements. Before choosing any network architecture, understand how your applications communicate today and how your data centre may grow.
At Comxus, an industrial networking OEM, we know that reliable networks start with understanding real traffic needs.
