In Ethernet networking, the physical connection between two devices has traditionally depended on using the correct cable type. A straight-through cable was generally used to connect different types of devices, while a crossover cable was used when connecting similar devices.
Modern Ethernet networks have largely removed this concern through technologies such as Auto MDI and Auto MDI-X.
Auto MDI allows an Ethernet interface to automatically detect the required transmit and receive pair configuration. This means network devices can establish a connection without the installer having to manually determine whether a straight-through or crossover cable is required.
For industrial Ethernet networks, this feature can simplify installation and commissioning of managed switches, PLCs, SCADA systems, IP cameras, servers, access-control devices, and other Ethernet-enabled equipment.
What Is Auto MDI?
Auto MDI (Automatic Medium-Dependent Interface) is an Ethernet interface feature that automatically determines how the transmit and receive pairs should be used for communication.
In traditional Ethernet connections, devices could have different interface wiring arrangements.
But when connecting similar interfaces, a crossover cable could traditionally be required:
Auto MDI/MDI-X removes much of this manual cable-selection requirement by allowing the Ethernet port to automatically detect the connected device and adjust its transmit and receive configuration.

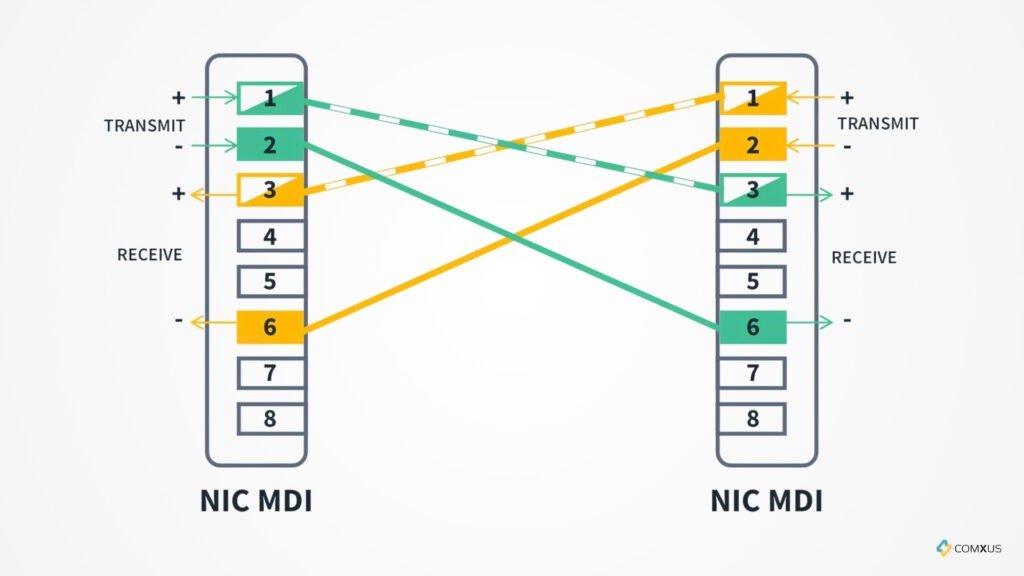

What Is MDI and MDI-X?
MDI
MDI refers to the interface configuration traditionally associated with end devices such as computers.
MDI-X
MDI-X refers to the crossover interface arrangement traditionally associated with Ethernet switches and hubs. The transmit and receive pairs are arranged differently between these interfaces. With older Ethernet equipment, connecting two devices with the same interface type could require a crossover cable.
Auto MDI-X allows the port to automatically compensate for these differences.
How Does Auto MDI-X Work?
When an Ethernet cable is connected, an Auto MDI-X capable interface can detect the electrical characteristics of the connection and determine the appropriate transmit and receive pair configuration.
The installer therefore does not normally need to worry about whether the connected device requires a traditional straight-through or crossover arrangement.
This is particularly useful in networks containing equipment from different manufacturers.

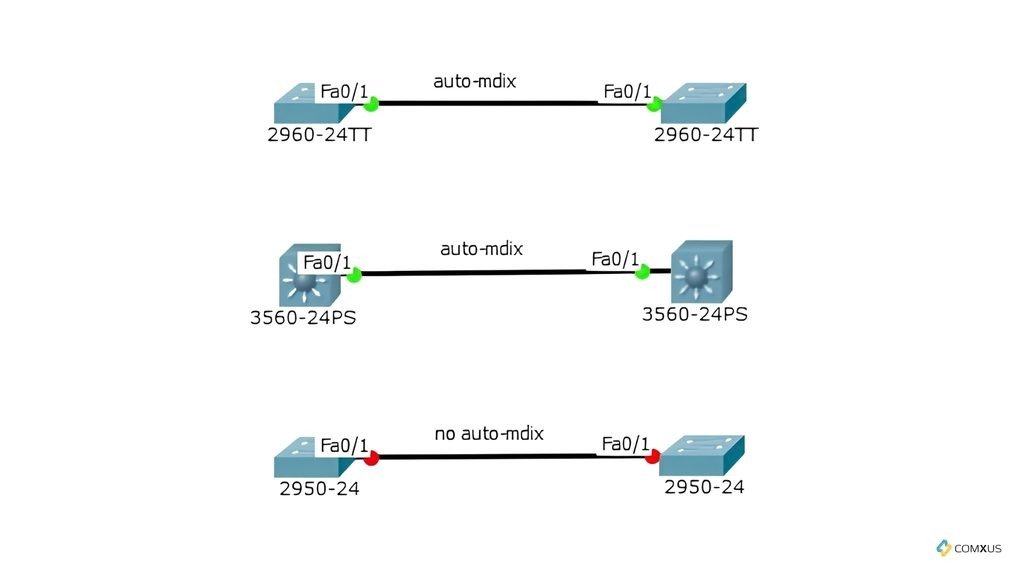

Auto MDI vs Auto MDI-X
The terms are closely related, but Auto MDI-X is the more commonly referenced implementation in modern Ethernet equipment.
| Feature | MDI | MDI-X | Auto MDI-X |
| Interface type | End-device arrangement | Crossover arrangement | Automatically detects |
| Cable selection | May matter | May matter | Usually simplified |
| Manual crossover requirement | Possible | Possible | Generally unnecessary |
| Common in modern switches | Less relevant | Less relevant | Very common |
In modern Ethernet networks, Auto MDI-X support is widely available on network switches and other Ethernet interfaces.
Why Is Auto MDI-X Important for Industrial Networking?
Industrial networks can contain hundreds of Ethernet-connected devices distributed across production areas, control rooms, substations, warehouses, and utility systems.
During installation, engineers and technicians may need to connect devices from different vendors. Auto MDI-X reduces one potential source of configuration error.
If the interfaces support Auto MDI-X, the ports can automatically handle the required pair configuration.
Auto MDI-X vs Auto-Negotiation
These technologies are related to Ethernet connectivity but perform different functions.
Auto MDI-X determines the appropriate transmit/receive pair configuration.
Auto-Negotiation allows Ethernet interfaces to negotiate supported parameters such as link speed and duplex mode.
Frequently Asked Questions
Does Auto MDI-X eliminate crossover cables?
For compatible Ethernet equipment, Auto MDI-X generally eliminates the need to manually use crossover cables for common Ethernet connections.
Do industrial switches support Auto MDI-X?
Many modern industrial Ethernet switches support Auto MDI-X, but the exact feature should always be verified in the manufacturer’s technical specifications.
Is Auto MDI-X related to VLAN?
No. Auto MDI-X operates at the physical Ethernet interface level, while VLAN is primarily a Layer 2 network segmentation technology. They solve different networking problems.
