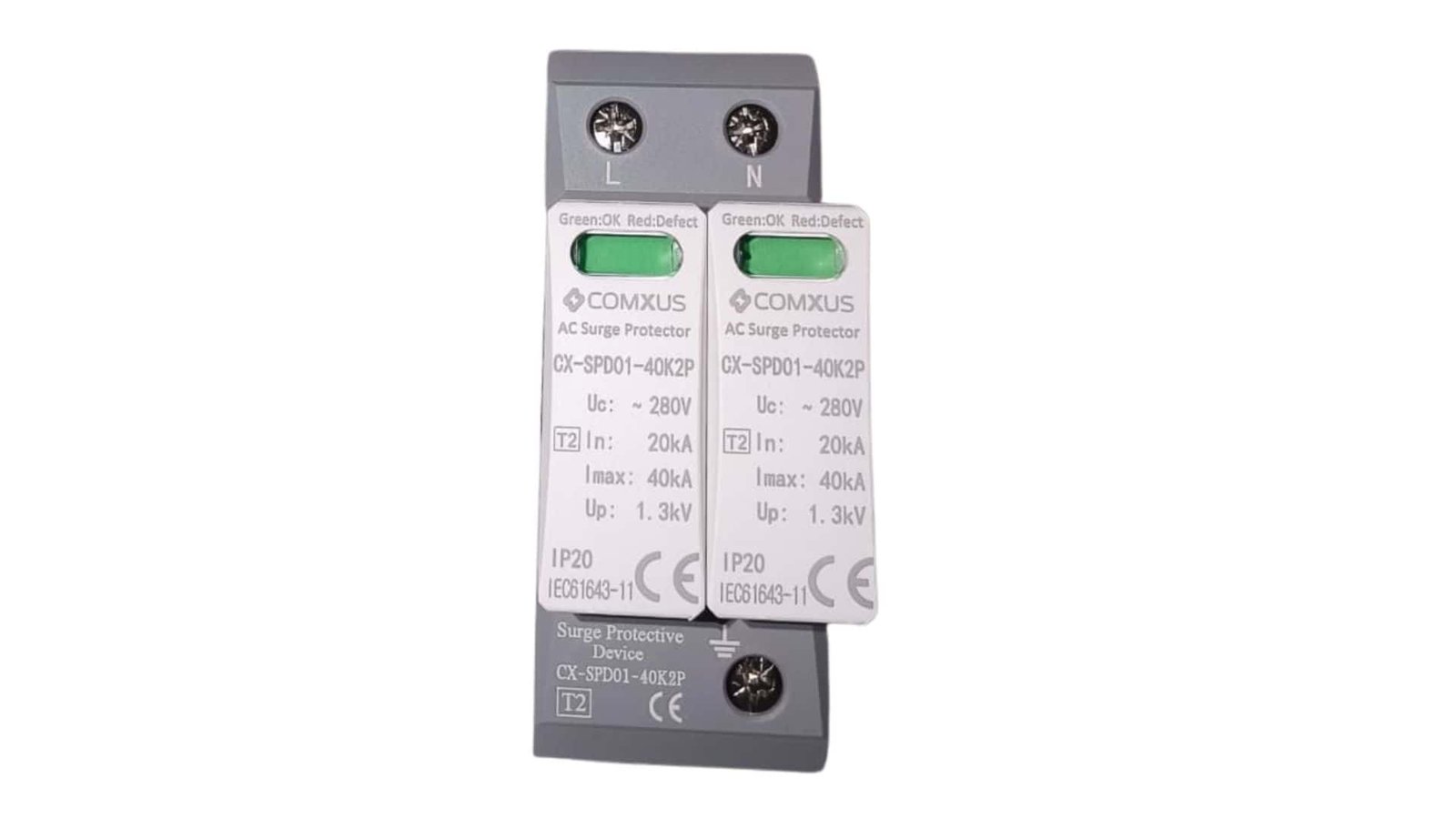

The COMXUS CX-SPD01-40K2P is a Type 2 AC Surge Protection Device designed to protect low-voltage power distribution systems against lightning-induced surges and transient over voltages. It features a pluggable module design, DIN rail mounting, and visual status indication.
| Product Type | Type 2 AC Surge Protection Device |
| Model | CX-SPD01-40K2P |
| SPD Classification | 2P |
| Nominal Voltage | 230V AC |
| Maximum Continuous Operating Voltage (Uc) | 275V AC |
| Frequency | 50/60Hz |
| Nominal Discharge Current (In) | 20kA (8/20µs) |
| Maximum Discharge Current (Imax) | 40kA (8/20µs) |
| Voltage Protection Level (Up) | ≤1.5kV |
| Response Time | <25ns |
| Leakage Current | <0.5mA |
| Protection Mode | L–N |
| Protection Technology | MOV |
| Status Indicator | Green: Normal / Red: Fault |
| Remote Signaling | Optional |
| Mounting | 35mm DIN Rail |
| Connection | Screw Terminal |
| Ingress Protection | IP20 |
| Operating Temperature | -40°C to +80°C |
| Humidity | ≤95% Non-condensing |
| Housing | Flame Retardant Thermoplastic |
