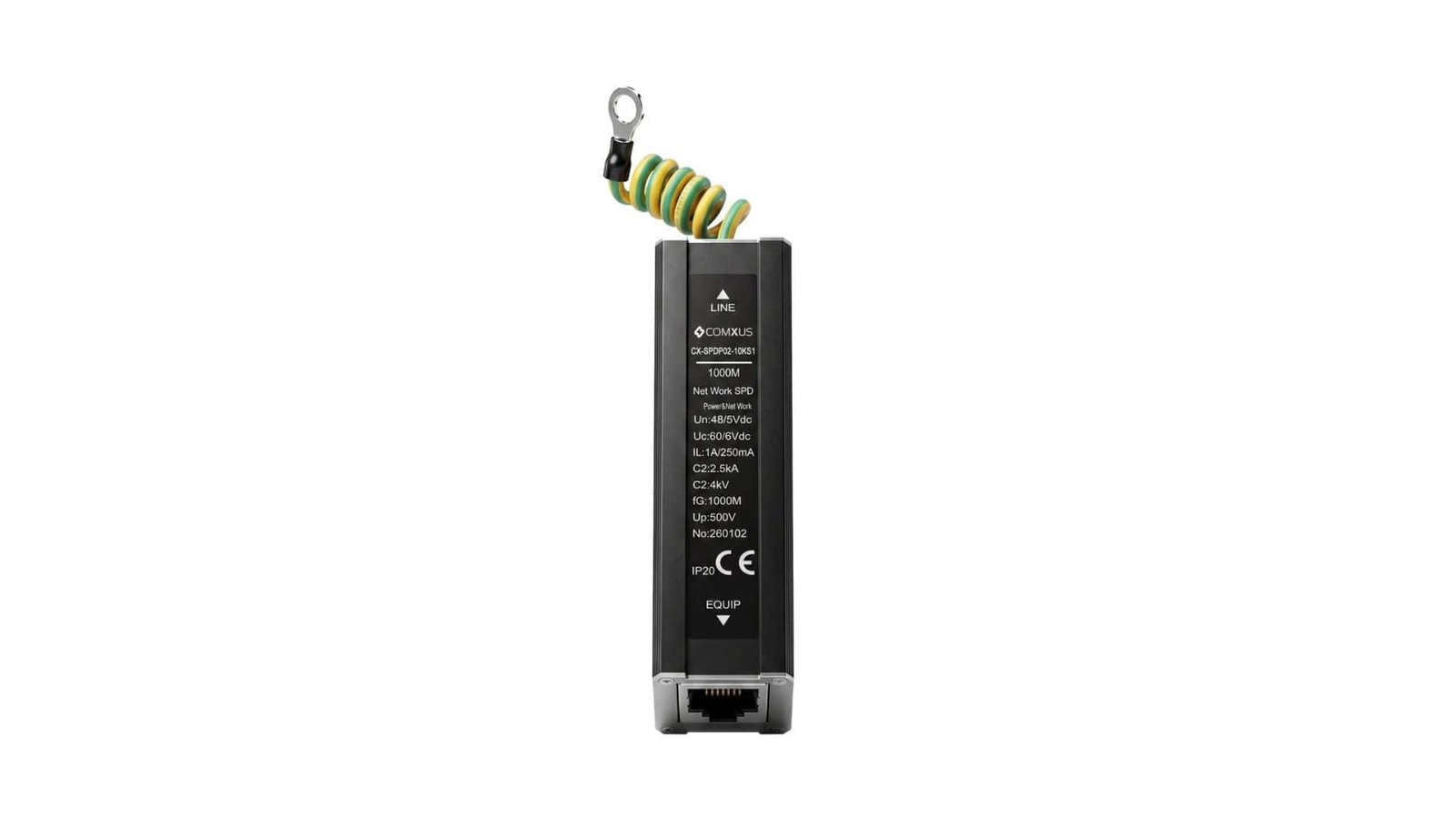

The CX-SPDP02-10KS1 is a high-performance Gigabit PoE Surge Protection Device designed to protect Ethernet communication and Power over Ethernet (PoE) equipment from lightning-induced surges and transient overvoltages. Supporting 10/100/1000Mbps data transmission and IEEE 802.3af/at PoE, it provides reliable protection for IP cameras, wireless access points, PoE switches, and other outdoor networking devices. The compact DIN Rail design enables easy installation in industrial control panels and network cabinets.
| Parameter | Specification |
| Product Type | Gigabit PoE Surge Protection Device |
| Model | CX-SPDP02-10KS1 |
| Network Nominal Voltage (Uo/Un) | 5V DC |
| Power Nominal Voltage (Uo/Un) | 48V DC |
| Maximum Continuous Operating Voltage (Uc) | 6.8V DC (Network), 60V DC (Power) |
| Rated Current | 250mA (Network), 1A (Power) |
| D1 Impulse Current (10/350µs) | 1kA |
| C2 Surge Current | 4kV / 2.5kA |
| B2 Surge Rating | 4kV (10/700µs) |
| Voltage Protection Level (Network X-X @ C2) | ≤25V |
| Voltage Protection Level (Network C-C @ C2) | ≤500V |
| Voltage Protection Level (Power @ C2) | ≤300V |
| Response Time | <1ns (Data), <25ns (Power) |
| Pin Configuration | Data: 1-2, 3-6; PoE: (4,5)+ / (7,8)- |
| Connection | RJ45 Input / RJ45 Output |
