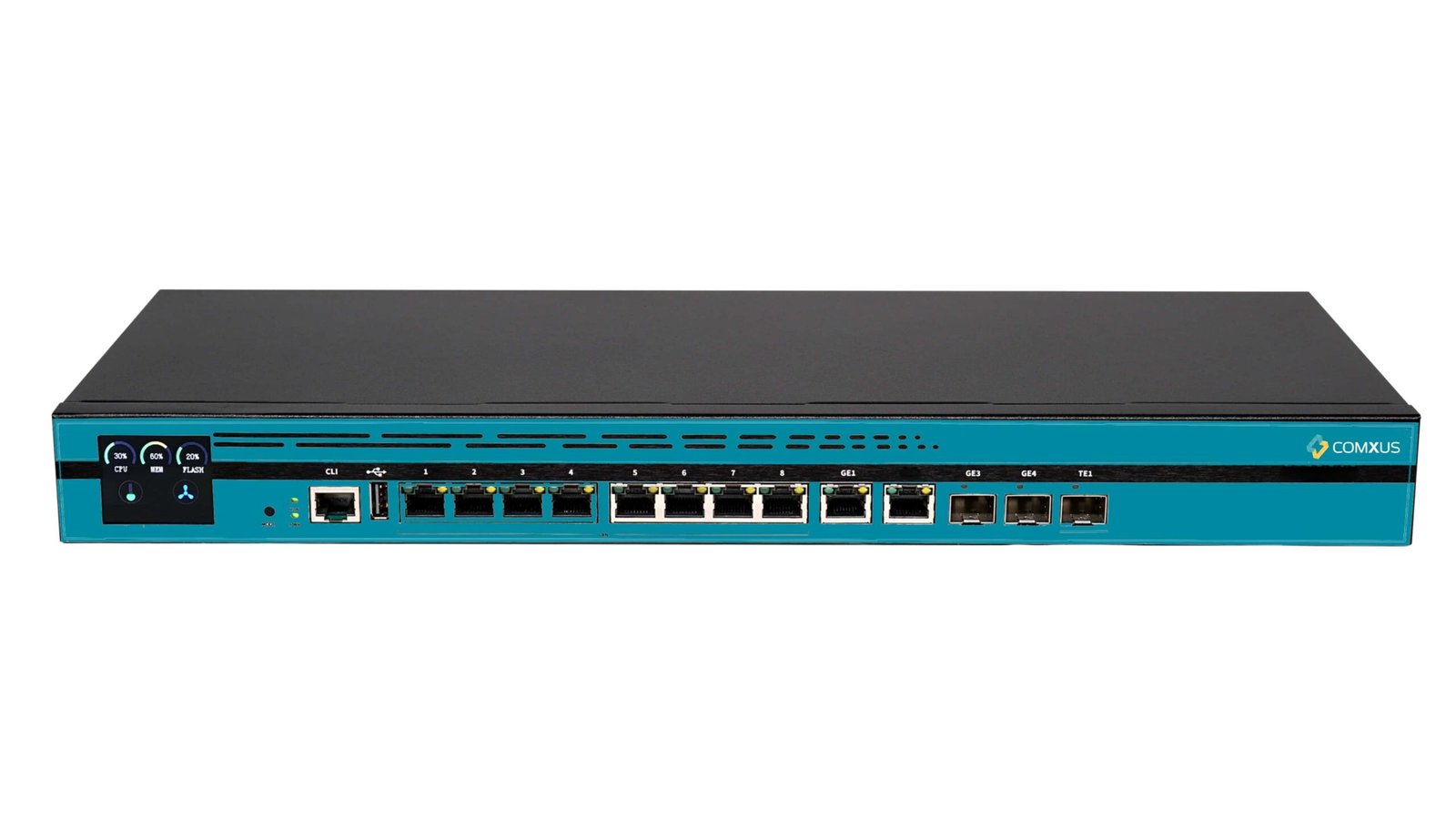

Multi-service Integrated Gateway (Router)

CX-NR-8GSF2S10I

  • Industrial-Grade Design
  • 1GbE Ports
  • 10 GbE SFP Slots
  • Web-Based Management
  • High Availability
    Scalability

Certifications:

CE

The COMXUS Router is a high-performance multi-service gateway built for Enterprises, Critical Industries, Campuses, Hotels, Hospitals, and Commercial networks. Powered by a 64-bit ARM architecture and a 10G non-blocking switching platform, it ensures seamless performance and efficiency.

  • Industrial-Grade Design: Built to withstand harsh industrial environments, ensuring reliable performance under extreme
  • 1GbE Ports: Equipped with multiple Gigabit ports for high-speed network
  • 10 GbE SFP Slots: Includes Gigabit SFP slots for flexible fiber optic connectivity
  • Web-Based Management: Features a web management interface for easy configuration and monitoring of network settings.
  • High Availability: Designed for high availability to minimize downtime and ensure continuous network
  • Scalability: Supports high scalability to accommodate growing network demands and expanding industrial
WAN PORTS 2×10/100/1000 Mbps RJ45 Ports,

2×1G SFP Ports

1×10G SFP+ Port

LAN PORTS 8×10/100/1000Mbps, RJ45 Ports
LCD 1
USB 1*USB2.0
BANDWIDTH 5Gbps
RESET 1Button
THROUGHPUT 5Mpps
NAT CONCURRENT SESSION 2M
FLASH 16GB
RAM 4GB
POWER CONSUMPTION Standby Power Consumption≤13W;

Network Full-Load power consumption≤20W;

TOTAL OUTPUT BTU 68.25
POWER INPUT 1
OPERATING TEMPERATURE/HUMIDITY -20℃~60℃/ 5%~95% (non-condensing)
FAN 2
NOISE @1AT 40dB
POWER SUPPLY 100-240V AC
ACCESSORY Console cable, Power adaptor, Rackmount-kit, Rubber Pads
PRODUCT DIMENSIONS 440x180x44 mm
WEIGHT 2.3Kg

CX-NR-8GSF2S10I Datasheet Download
