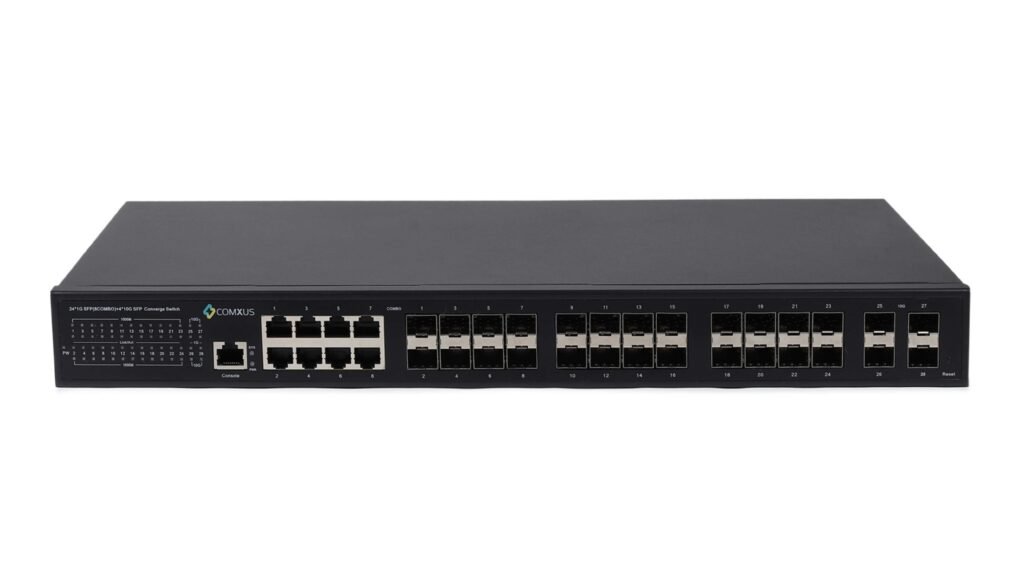

24 sfp front image
comxus 24 port switch with 4 sfp port side image

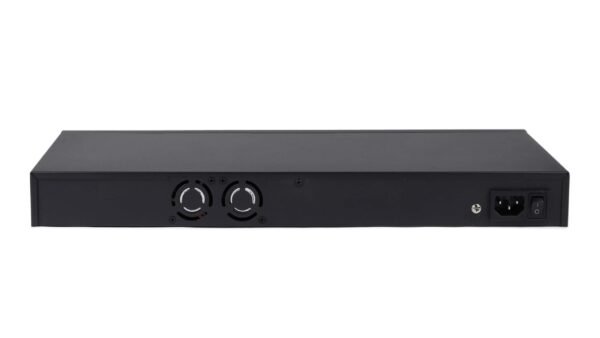

comxus 24 port image with 4 sfp port back side

L3 Managed Fiber Switch​

8GSF24S40-L3

    • High Port Density: Includes 8 Gigabit Ethernet BaseT Combo ports and 24 SFP ports, providing extensive connectivity options for various industrial devices and applications.
    • 10G Uplink SFP Ports: Equipped with 4x10G SFP+ uplink ports, offering high-speed data transfer and seamless integration with core network infrastructure.
    • Redundant Power Supply: Supports redundant power inputs to ensure continuous operation and minimize downtime in case of power failures.
    • Layer 3 Switching: Enables advanced routing capabilities, including static and dynamic routing protocols, for efficient network traffic management and segmentation.
    • Enhanced Security: Implements comprehensive security features such as Access Control Lists (ACLs), 802.1x authentication, and port security to protect against unauthorized access and ensure data integrity.
    • Quality of Service (QoS): Advanced QoS features prioritize critical traffic, ensuring reliable performance for latency-sensitive applications.
    • User-Friendly Management: Offers an intuitive web interface, SNMP support, and Command Line Interface (CLI) for easy configuration, monitoring, and management.

Get A Quote

Certifications:

CE

Comxus 24 Port L3 Managed Stackable Switch with 4 Port 10G Uplink SFP is a powerful and versatile networking solution designed for enterprises and industrial networks demanding high-speed connectivity, scalability, and advanced management capabilities. Built to handle intensive data traffic, this switch delivers top-notch performance for growing networks.



NETWORK PORT

  24×10/100/1000Mbps SFP Ports

08×10/100/1000Mbps 1000Base-TX RJ45 Ports

(Combo) 4x10G SFP Ports

(Uplink)

1xConsole RJ45 Port
RESET KEY  1xReset Key
ENVIRONMENT DETECTION  1 group of input detection of environment temperature and humidity
CPU  MIPS-34Kc with MMU Up to 800MHz CPU
DDR  2G DDR3 1333MHz
PORT SPECIFICATION  1-24 port 10/100/1000SFP (X)auto detection
TRANSMISSION MODE  Store and Forward (full wire speed)
BANDWIDTH  512Gbps
PACKET FORWARDING  92.32Mpps
BUFFER  12Mbit SRAM Packet Buffer


TRANSMISSION DISTANCE

  10BASE-T : Cat3,4,5 UTP (≤250 meter)

100BASE-TX : Cat5 or later UTP (≤100 meter)

1000BASE-TX : Cat6 or later UTP (≤1000 meter) 10000BASE-FX : Determined by optical module
FLASH  4GB
RAM  8GB
WATT

Standby power consumption

Network full load power consumption≤25W Full load power consumption ≤240W


LED INDICATOR

  PWR: Power LED

SYS:(System LED

1~24: Link/ACT LED+ 1G LED

4-24: LINK/ATC+10G LED


POWER INPUT

 Redundant dual power input

Built-in power AC 100~240V

50/60HZ MAX

POWER ≤36W
OPERATING TEMPERATURE/HUMIDITY  -30° C +75° C; 5%~95% RH
INGRESS PROTECTION  IP30
LIGHTNING PROTECTION LEVEL  6KV
WEIGHT  3.4kg
DIMENSION  440mm x 210mm x 45mm

8GSF24S40-L3 Datasheet Download
