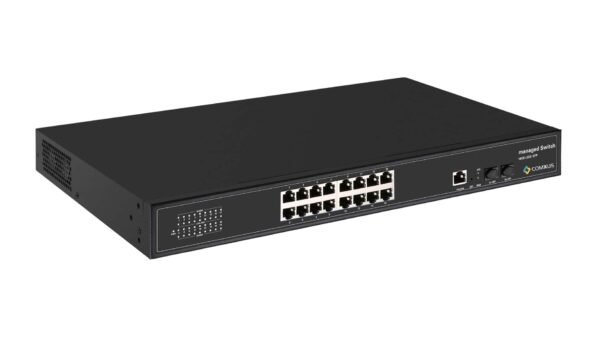

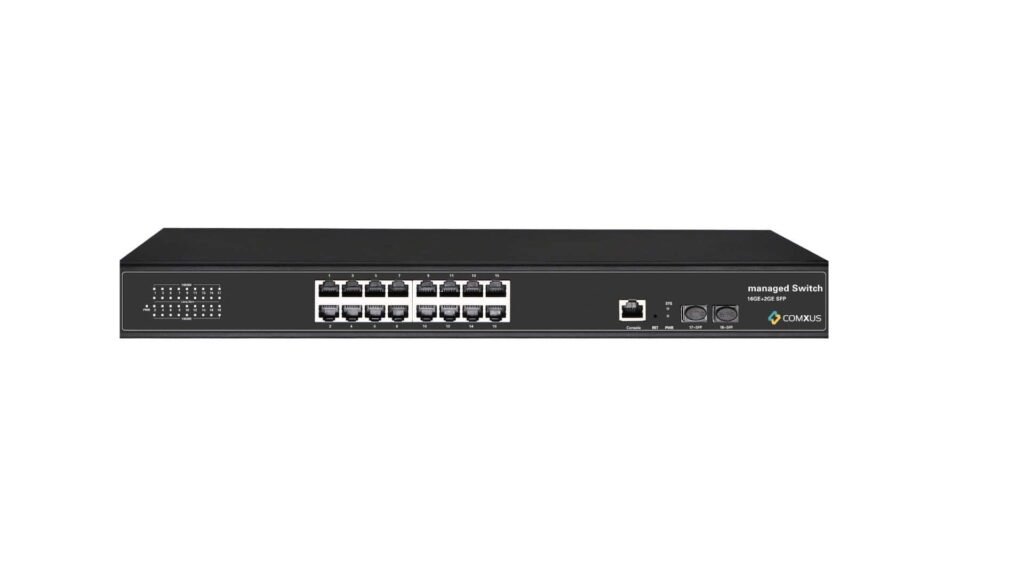

L2 16 PORT NETWORK MANAGED SWITCH WITH 2G Upink SFP

CX-NA-16GS2D-L2

  • IEEE 802.3at Compliance
  • 1GbE Downlink Ports
  • 1GbE SFP Slots
  • Layer 2 Switching
  • Web-Based Management
  • High Availability

Certifications:

CE

The Comxus CX-NA-16GS2D-L2 is designed to deliver robust and reliable network performance. Featuring 1GbE ports and supporting 1GbE uplinks, this switch is engineered for industrial environments where high durability and performance are critical. The CX-NPA-16GS2I-L2 provides efficient power distribution to connected devices while ensuring seamless data transmission, making it an ideal choice for demanding industrial applications.

  • IEEE 802.3at Compliance: Supports IEEE 802.3at standards, providing efficient power delivery to connected devices.
  • 1GbE Downlink Ports: Equipped with multiple Gigabit downlink ports for high-speed network connectivity.
  • 1GbE: Offers reliable Gigabit uplink ports for seamless data transmission to higher-level network infrastructures.
  • 1GbE SFP Slots: Includes Gigabit SFP slots for flexible fiber optic connectivity options.
  • Layer 2 Switching: Operates at Layer 2 of the OSI model, ensuring efficient data packet forwarding and network management.
  • Web-Based Management: Features a web management interface for easy configuration and monitoring of network settings and performance.
  • High Availability: Designed for high availability to minimize downtime and ensure continuous network operation.
  • Scalability: Supports high scalability to accommodate growing network demands and expanding industrial setups.


NETWORK PORT

16×10/100/1000Mbps 1000Base-TX RJ45 PoE Ports 2x1G SFP Ports

1x Console RJ45 Port

ENVIRONMENT DETECTION 1 group of input detection of environment temperature and humidity
PORT SPECIFICATION 1-16 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X
TRANSMISSION MODE Store and Forward (full wire speed)
BANDWIDTH 56G/128G Gbps
PACKET FORWARDING 41.67Mpps
BUFFER 4.1M




TRANSMISSION DISTANCE

10BASE-T . Cat3,4,5 UTP(≤250 meter)

100BASE-TX . Cat5 or later UTP(150 meter) 1000BASE-TX . Cat6 or later UTP(150 meter)

SFP: 1000M single and multimode optical module with maximum distance ≤ 120km (depending on the optical module)

FLASH 128M
RAM 128M


WATT

Standby power consumption≤15W Full-load power consumption≤20W


LED INDICATOR

PWR: Power LED SYS: System LED

1-16:10/100.1000M Network connection indicator 17-18:SFP connection indicator

POWER INPUT Built-in power AC.100-240Vac 50-60Hz 0.3A max 20W
OPERATING TEMPERATURE/HUMIDITY -40 +75° C; 5%~95% RH
INGRESS PROTECTION IP30
LIGHTNING PROTECTION LEVEL 6KV
WEIGHT 2.0kg/ 2.7kg
DIMENSION 440mm*200mm*45mm 515mm*300mm*95mm

CX-NA-16GS2D-L2 Datasheet Download
