INDUSTRIAL GRADE PoE MEDIA CONVERTER

Gigabit Performance: Supports 10/100/1000 Mbps Ethernet for high-speed data transfer and seamless connectivity.
PoE Capability: Complies with IEEE 802.3af/at standards, delivering up to 30W of power per port to connected devices such as IP cameras &amp; other network devices.
Industrial-Grade Design: Built to withstand harsh conditions, with a rugged metal enclosure, wide operating temperature range, and excellent resistance to electromagnetic interference.
Flexible Connectivity: Features one RJ45 copper port and one SFP fiber port, providing versatile options for network deployment and expansion.
Plug-and-Play Operation: Easy to install and configure with no need for complex setup, allowing for quick integration into existing network infrastructures.

Overview
Specifications

Introduction

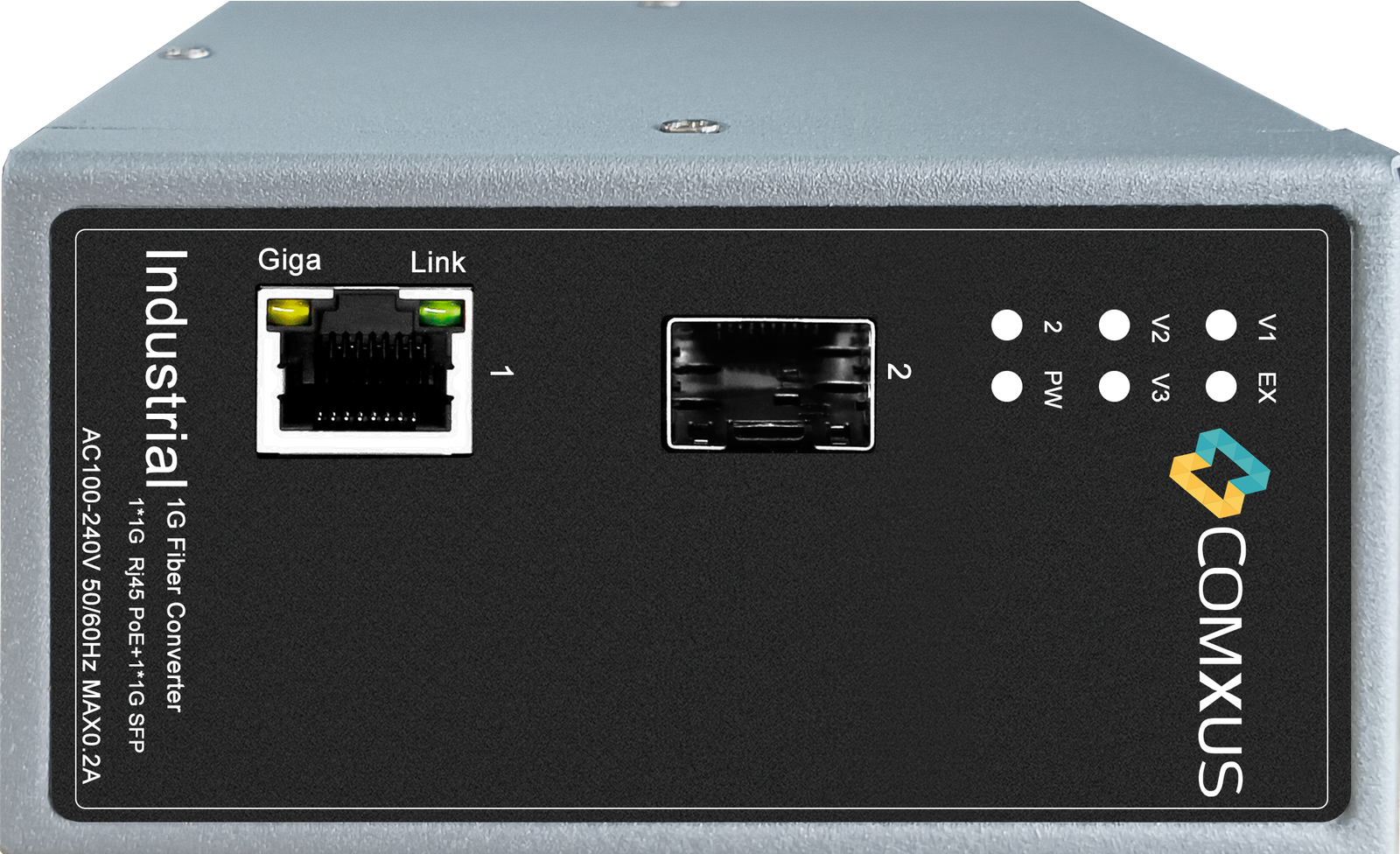

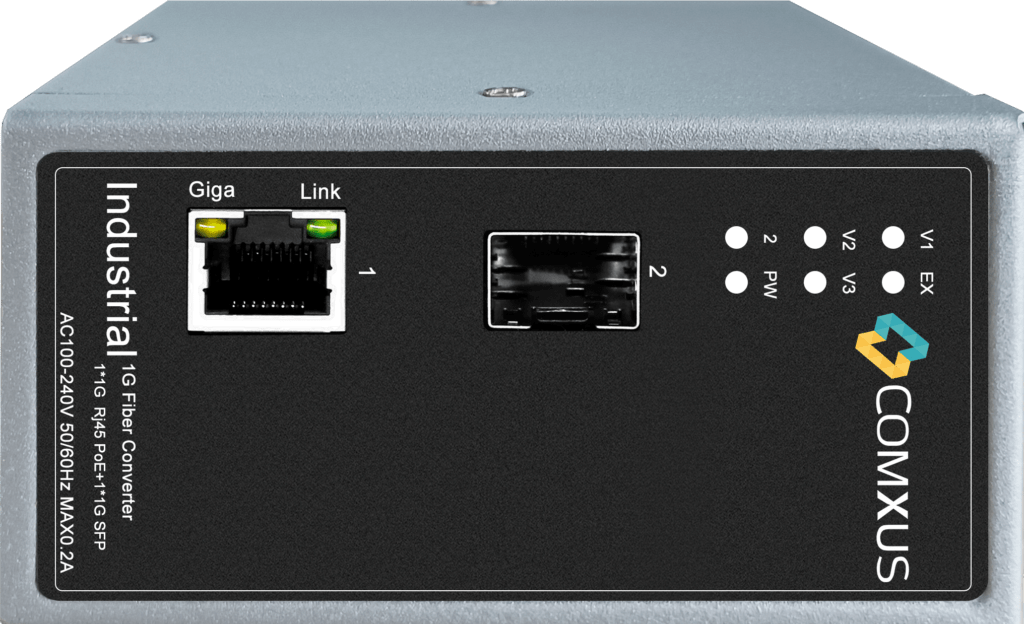

The ComXus CX-NPA-1GS1I-MC is a high-performance industrial-grade Power over Ethernet (PoE) media converter designed to provide reliable and efficient network connectivity in demanding environments. This robust device seamlessly converts Gigabit Ethernet media between copper and fiber, ensuring superior data transmission and network stability.

NETWORK PORT	1x10/100/1000Mbps 1000Base-TX RJ45 Port IEEE802.3af/at,Maxt 30W 1x1G SFP Ports
PoE Port	1 port IEEE802.3af/at,Maxt 30W
PoE data in	DC 12V - 36V
MAC Address	2K
PoE DOG	Support
High Cache	2.5M
TRANSMISSION MODE	Store and Forward (full wire speed)
BANDWIDTH	2Gbps
PACKET FORWARDING	2.98Mpps
HIGH CACHE	2.5M
TRANSMISSION DISTANCE	10M : Cat3,4,5 UTP(≤250m) 100M : Cat5 or later UTP (150m) 1000M : Cat6 or later UTP (150m) SFP : Support 1000M Single mode multimode optical module, MAXT≤120km
LED INDICATOR	PW: Power indicator (green) 1 : 10/100/1000M network connecting (green) 2 : Fiber connector (green) V1 : Main power indicator (green) V2 : Slave power LED (green) V3 : DC power (green) PoE : PoE connecting (orange)
POWER INPUT	2 sets of independent power input POE: DC 37-57V AC 90-230V
OPERATING TEMPERATURE/HUMIDITY	-40 +80°C 10% 90% RH Non coagulation
INGRESS PROTECTION	IP40
LIGHTNING PROTECTION LEVEL	6KV
WEIGHT	0.3kg/0.4kg
PRODUCT SIZE/PACKING SIZE LWH	105mm90mm58mm
Installation	DIN
Storage Temperature/Humidity	-40～+85°C；5%～95% RH Non coagulation
Lightning protection level	6KV 8/20us；
Level	IP30
STANDARDS
EMI	CISPR 32, FCC Part 15B Class A
CE, FCC & RoHS	CE, FCC complaint, RoHS Compliant (pb free)
EMS STANDARDS	IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11
ENVIRONMENTAL	IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-3
EMC	EN55032/35, EN61000-6-2/-6-4, NEMA TS2
SHOCK	IEC 60068-2-27
FREEFALL	IEC 60068-2-31
VIBRATION	IEC 60068-2-6
