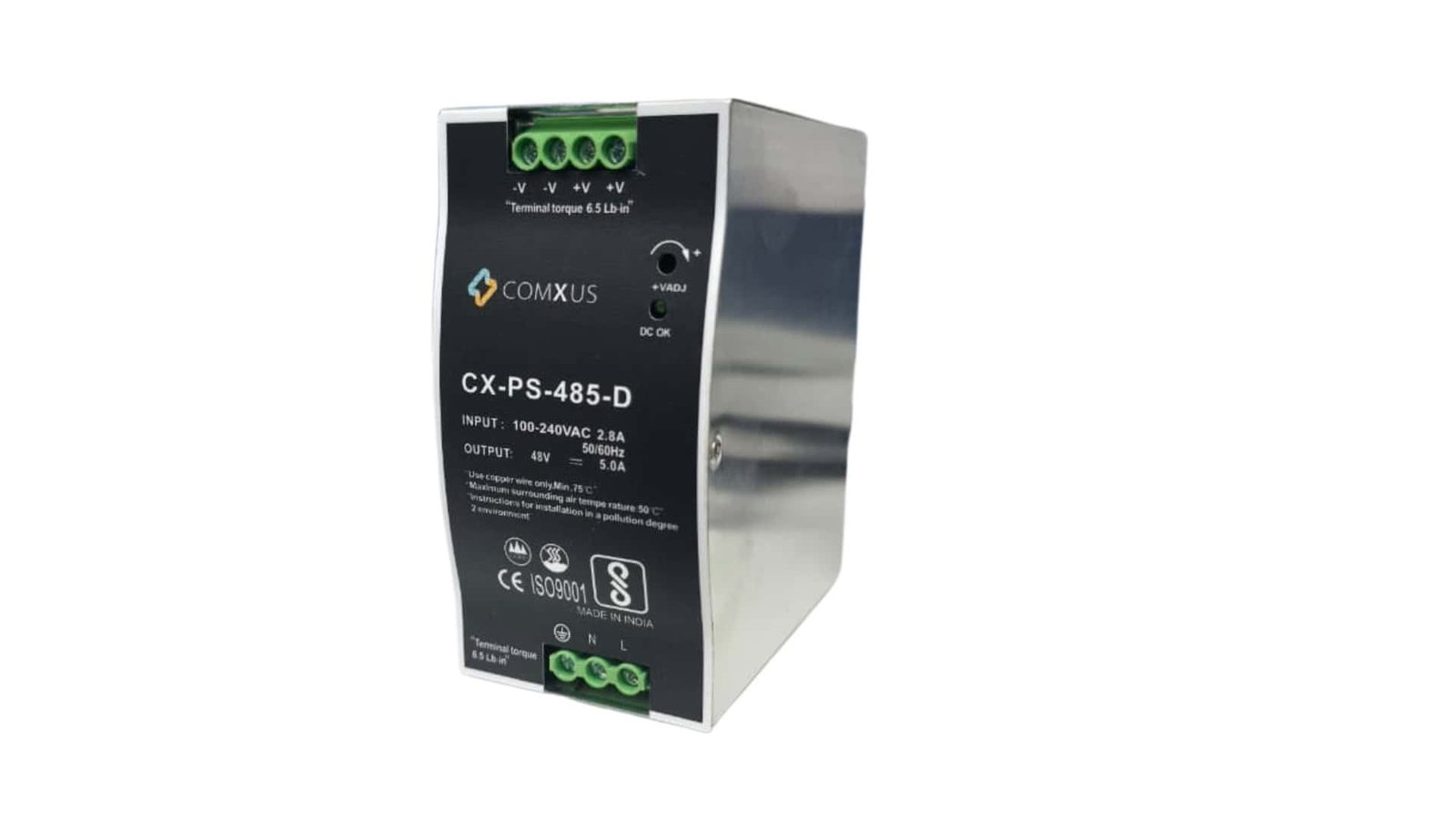

The CX-PS-485-D is an industrial-grade DIN-rail mounted power supply designed to deliver stable and reliable 48V DC output for industrial control, automation, and networking applications. The power supply features a slim form factor, high efficiency, and comprehensive protection mechanisms, ensuring safe and continuous operation in harsh industrial environments.
| OUTPUT | |
| DC VOLTAGE | 48V DC |
| OUTPUT VOLTAGE ADJUSTMENT RANGE: | 48–55V DC |
| RATED CURRENT | 5A |
| RATED POWER | 240W |
| RIPPLE AND NOISE ① | ≤150mVp-p |
| VOLTAGE ACCURACY | ±1.0% |
| LENEAR ADJUSTMENT RATE | ±1.0% |
| LOAD ADJUSTMENT RATE | ±0.5% |
| STARTING AND RISING TIME | 1500ms、50ms/230VAC 1500ms、50ms/115VAC(full load) |
| RETENTION TIME | 16ms/230VAC 12ms/115VAC (full load) |
| INPUT | |
| VOLTAGE RANGE / FREQUENCY | 90–264VAC / 127–370VDC |
| INPUT FREQUENCY: | 47–63Hz |
| AC CURRENT (TYP.): | 2.5A @115VAC, 1.3A @230VAC |
| INRUSH CURRENT (TYP.): | 20A @115VAC, 35A @230VAC |
| EFFICIENCY (TYPICAL) ② | ＞88.5% |
| WORKING CURRENT | 2.5A/115VAC 1.3A/230VAC |
| IMPULSE CURRENT | Cold start：20A/115VAC 35A/230VAC |
| LEAKAGE CURRENT | <1mA @240VAC |
| POWER FACTOR: | PF >0.95 @230VAC (Typical) |
