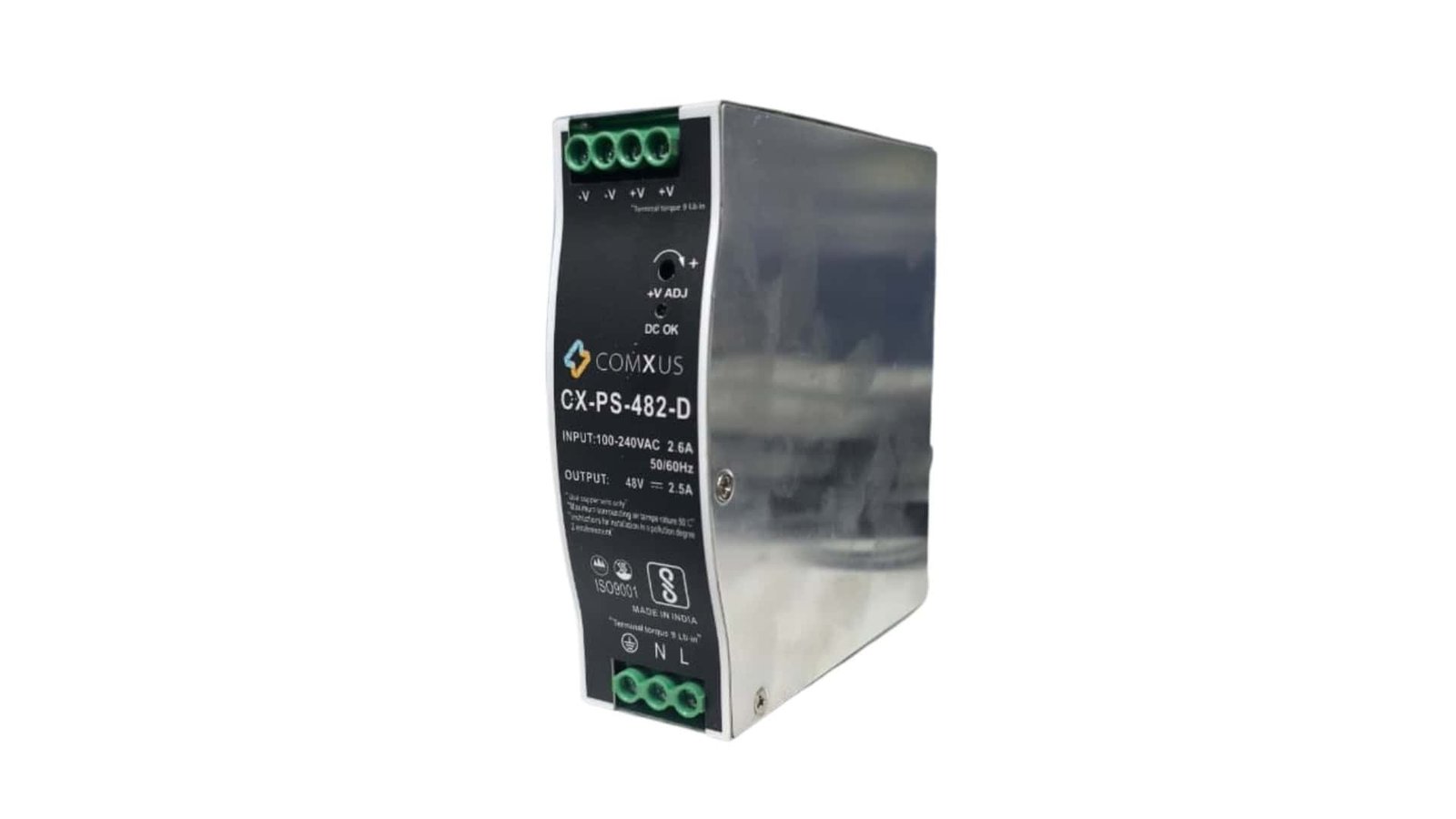

The CX-PS-482-D is a slim and economical 120W DIN-rail power supply with a compact 40mm width for space-saving installation. It supports a 90~264Vac full range input, fits TS-35/7.5 or TS-35/15 rails and delivers reliable performance for industrial applications.
| DC VOLTAGE | 48V |
| RATED CURRENT | 2.5A |
| RATED POWER | 120W |
| RIPPLE AND NOISE ① | ＜150mV |
| VOLTAGE ACCURACY | ±1% |
| OUTPUT VOLTAGE REGULATION RANGE | ±10% |
| LOAD ADJUSTMENT RATE | ±1% |
| LINEAR ADJUSTMENT RATE | ±0.5% |
| INPUT | |
| VOLTAGE RANGE | 85-264VAC 47hz-63hz (120vdc-370vdc: DC input can be realized by connecting AC / L +, AC / N (-)) |
| EFFICIENCY (TYPICAL) ② | ＞89% |
| WORKING CURRENT | ＜2.25A 110VAC ＜1.3A 220VAC |
| IMPULSE CURRENT | 110VAC 20A， 220VAC 35A |
| START, RISE, HOLD TIME | 500ms、70ms、32ms ：110VAC/500ms、70ms、36ms ：220VAC |
| PROTECT | |
| OVERLOAD PROTECTION | 105% – 150% type: protection mode: automatic recovery after removing the abnormal condition of constant current mode |
| OVERVOLTAGE PROTECTION | When the output voltage is more than 135%, the output will be turned off. It will recover automatically after the abnormal conditions are removed |
| SHORT CIRCUIT PROTECTION | +VO When the abnormal condition of output is released, it will recover automatically |
| ENVIRONMENTAL | |
| WORKING TEMPERATURE AND HUMADITY | -40℃～+85℃；20%～90RH |
| STORAGE TEMPERATURE AND HUMADITY | -20℃～+85℃；10%～95RH |
