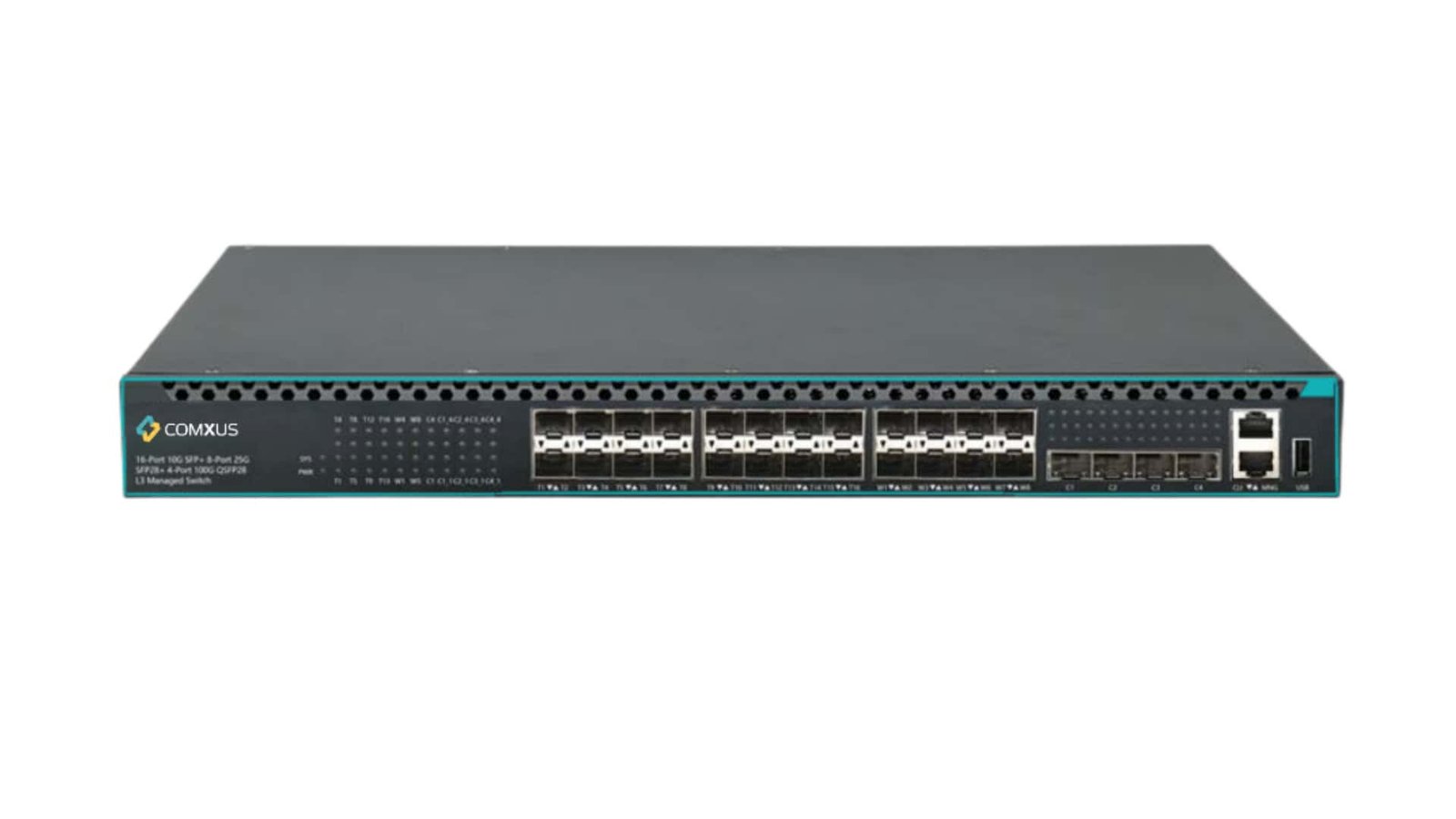

The CX-ND-0GSF24S20-L3 is a high-performance Layer 3 Managed Stackable Core Switch engineered to provide robust and scalable network solutions for demanding various environments. With its advanced features and durable design, this switch ensures optimal network performance and reliability.
| NETWORK PORT | Â 16Ă—10G SFP+, 8Ă—25G SFP28, 4Ă—100G QSFP28
1* RJ45 Console Port, 1*RJ45 Management Port, 1*USB 2.0 Port |
| RESET KEY | Â 1x Reset Key |
| ENVIRONMENT DETECTION | Â 1 Group of Input Detection of Environment Temperature and Humidity |
| CPU | Â Multi-Core |
| DDR | Â DRAM |
| PORT SPECIFICATION | Â 1-16 port 100/1G/10G SFP (X) auto detection + 17-24 port 100/1G/10G/25G SFP (X) auto detection |
| TRANSMISSION MODE | Â Store and Forward (Full Wire Speed) |
| BANDWIDTH | Â 1.9Tbps |
| PACKET FORWARDING | Â 1250Mpps |
| BUFFER | Â 16 MB |
| TRANSMISSION DISTANCE | Â 100BASE-TX: Cat5 or later UTP (150 meter) 1000BASE-TX: Cat6 Or Later UTP (150 meter)
SFP & QSFP: 100M/1G/10G/100G Single-Mode Multi-Mode & Optical Module, The Maximum Distance Is  ≤120km (Depending on The Optical Module) |
| FLASH | Â 8GB |
| RAM | Â 8GB |
| WATT | Â Standby Power Consumption
Network Full Load Power Consumption≤45W Full Load Power Consumption ≤70W |
| LED INDICATOR | Â PWR: Power LED
SYS: System LED 1–16: 10/100/1000/10000M Network Connection Indicator 17–24: 10G/25G SFP28 Network Connection Indicator 25–28: 100G QSFP28 Network Connection Indicator |
| POWER INPUT |  AC 100–240 V, 50 Hz ±10 % |
| FAN SLOT | Â 4 (built-in) |
| OPERATING TEMPERATURE/HUMIDITY | –30 °C ~ +60 °C, 5 %–95 % RH non-condensing |
| INGRESS PROTECTION | Â IP30 |
| LIGHTNING PROTECTION LEVEL | Â 6KV |
| WEIGHT | Â 6.1kg |
| DIMENSION | Â 442 Ă— 280 Ă— 44 mm |
