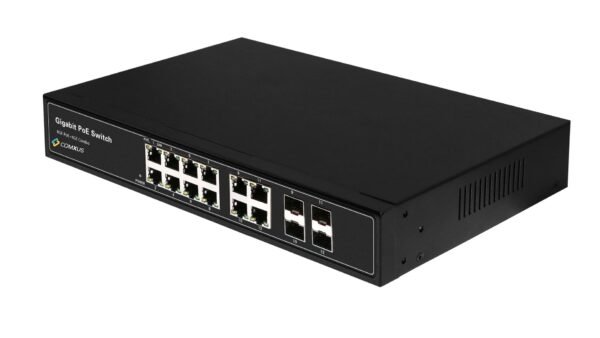

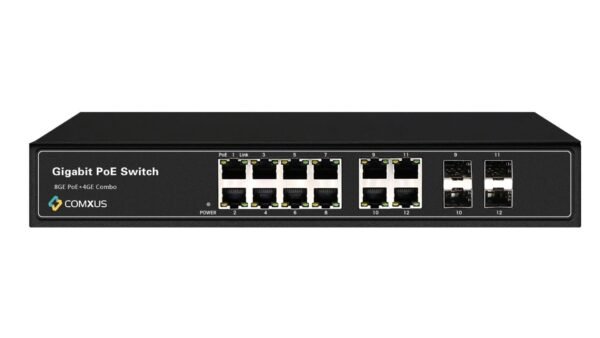

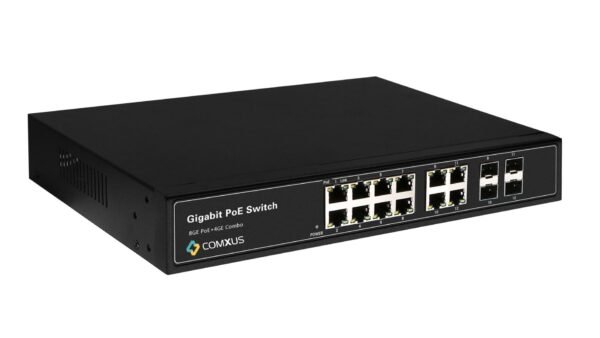

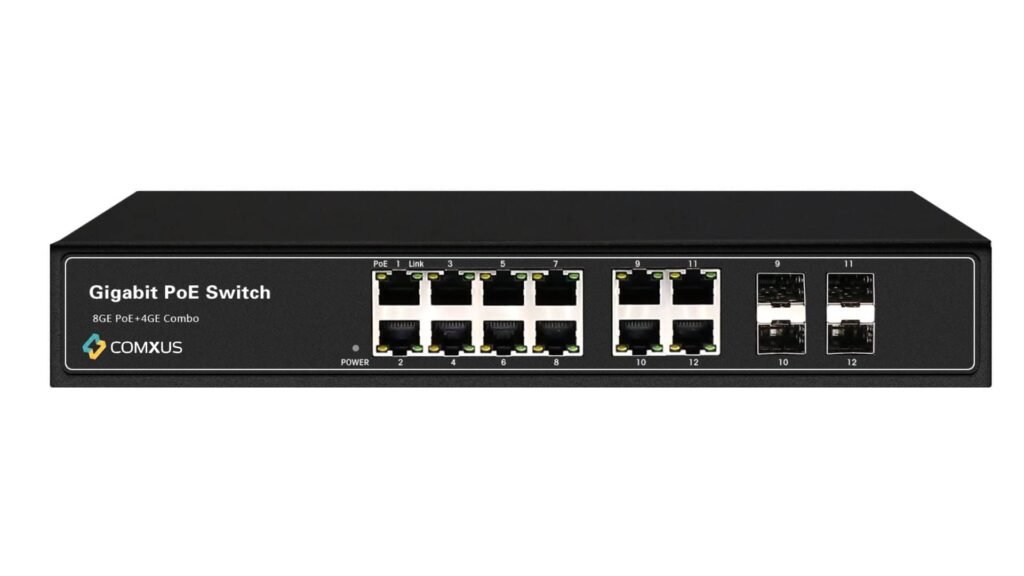

The Comxus CX-NPG-8GS4D is an 8 Port Unmanaged PoE Network Switch with 4G Uplink SFP designed for industrial environments requiring high durability and reliable network performance. This rugged switch combines Power over Ethernet (PoE) with high-speed data connectivity, providing a cost-effective solution for connecting devices such as IP cameras, access points and industrial controllers.
With 1GbE ports and 1GbE uplinks, the switch delivers efficient power distribution and seamless data transmission, making it ideal for mission-critical industrial applications.
1. IEEE 802.3at/af/bt Compliance: Supports standard PoE protocols, ensuring efficient power delivery to connected devices without the need for additional power supplies.
2. 1GbE Downlink Ports: Multiple Gigabit downlink ports provide high-speed connectivity for all connected industrial devices.
3. 1GbE Uplink Ports: Reliable uplinks guarantee seamless data transmission to higher-level network infrastructures, maintaining network stability.
4. 1GbE SFP Slots: Flexible SFP slots allow fibre optic connections for long-distance, high-speed network expansion.
5. Power over Ethernet (PoE): Delivers power and data over a single cable, simplifying installation and reducing infrastructure costs.
6. High Availability: Designed for continuous operation to minimise downtime and maintain reliable network performance in demanding industrial environments.
7. Scalability: Supports network growth with flexible port configuration, allowing easy expansion for larger industrial setups.
The 8 Port Unmanaged PoE Network Switch with 4G Uplink SFP offers reliable connectivity, efficient PoE power delivery and flexible network expansion. Its robust design ensures continuous operation even in harsh industrial conditions.
This switch is ideal for factories, manufacturing plants, transportation hubs and automation systems. It allows IT teams to deploy cost-effective and scalable networks without compromising reliability or performance.
| NETWORK PORT | 8×10/100/1000Mbps 1000Base-TX RJ45 PoE Ports
Port 1~8 support PoE (single port power MAX 30W) 4×1GSFP/RJ45 (Combo) Ports |
| ENVIRONMENT DETECTION | 1 group of input detection of environment temperature and humidity |
| PORT SPECIFICATION | 1-8 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X |
| TRANSMISSION MODE | Store and Forward (full wire speed) |
| BANDWIDTH | 56Gbps |
| PACKET FORWARDING | 41.67Mpps |
| BUFFER | 4.1M |
| TRANSMISSION DISTANCE | 10BASE-T ： Cat3,4,5 UTP (≤250 meter)
100BASE-TX ： Cat5 or later UTP (150 meter) 1000BASE-TX ： Cat6 or later UTP (150 meter) SFP: 1000M single and multimode optical module with maximum distance ≤ 120km (depending on the optical module) |
| FLASH | 4GB |
| RAM | 6GB |
| WATT | Standby power consumption≤5W;
Network Full-load power consumption≤10W; |
| LED INDICATOR | POWER: Power LED
Uplink:(10/100M=Green Link、1000M=Orange Link） Downlink:(10/100M=Green Link、1000M=Orange Link） |
| POWER INPUT | Built-in power AC：100-240Vac
50-60Hz 2A Max 165W |
| OPERATING TEMPERATURE/HUMIDITY | -30 °C ~ + 60°C 5% 95% RH No coagulation |
| INGRESS PROTECTION | IP30 |
| LIGHTNING PROTECTION LEVEL | 6KV 8/20us |
| WEIGHT | 1.6kg/2.3kg |
| DIMENSION | 293mm*190mm*45mm
410mm*278mm*95mm |
