Comxus 8 port l2 managed switch with 2 sfp port
08 Port Network Managed Switch With 4G Upink SFP - Image 2
08 Port Network Managed Switch With 4G Upink SFP - Image 3
Comxus 8 port l2 managed switch with 2 sfp port

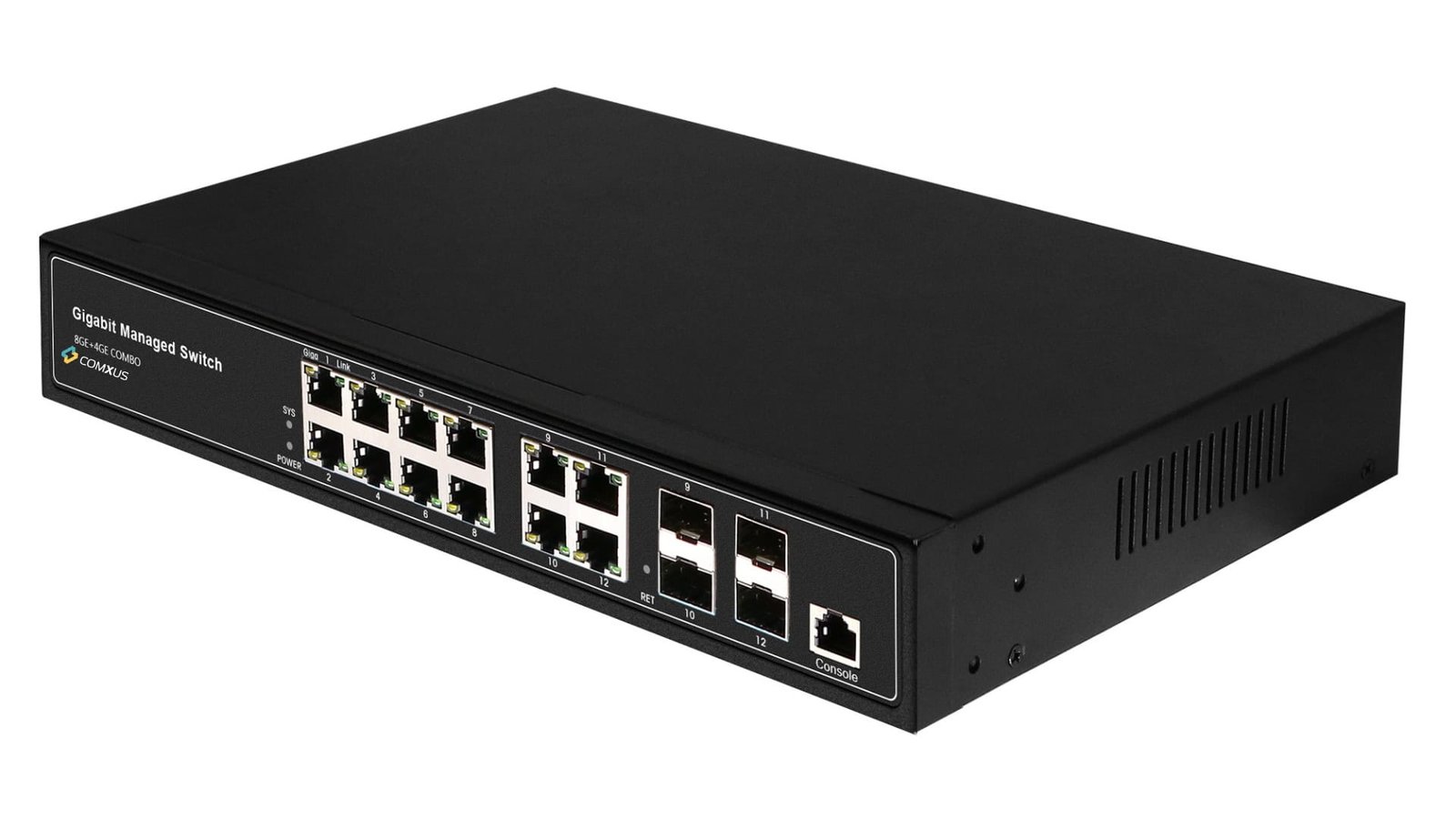

08 Port Network Managed Switch With 4G Upink SFP

CX-NA-8GS4D-L2

  • Industrial-Grade Design
  • High Availability
  • 1GbE Downlink Ports
  • 1GbE SFP Slots
  • Web-Based Management
  • Layer 2 Switching
Get A Quote

Certifications:

CE

The CX-NA-8GS4D-L2 is designed to deliver robust and reliable network performance. Featuring 1GbE ports and supporting 1Gb durability and performance are critical. The CX-NA-8GS4D-L2 provides efficient power distribution to connected devices while ensuring seamless data transmission, making it an ideal choice for demanding industrial applications.

  • Industrial-Grade Design: Built to withstand harsh industrial environments, ensuring reliable performance under extreme conditions.
  • IEEE 802.3: Supports IEEE 802.3 providing efficient power delivery to connected devices.
  • 1GbE Downlink Ports: Equipped with multiple Gigabit downlink ports for high-speed network connectivity.
  • 1GbE: Offers reliable Gigabit uplink ports for seamless data transmission to higher-level network infrastructures.
  • 1GbE SFP Slots: Includes Gigabit SFP slots for flexible fiber optic connectivity options.
  • Layer 2 Switching: Operates at Layer 2 of the OSI model, ensuring efficient data packet forwarding and network management.
  • Web-Based Management: Features a web management interface for easy configuration and monitoring of network settings and performance.
  • High Availability: Designed for high availability to minimize downtime and ensure continuous network operation.
  • Scalability: Supports high scalability to accommodate growing network demands and expanding industrial setups.

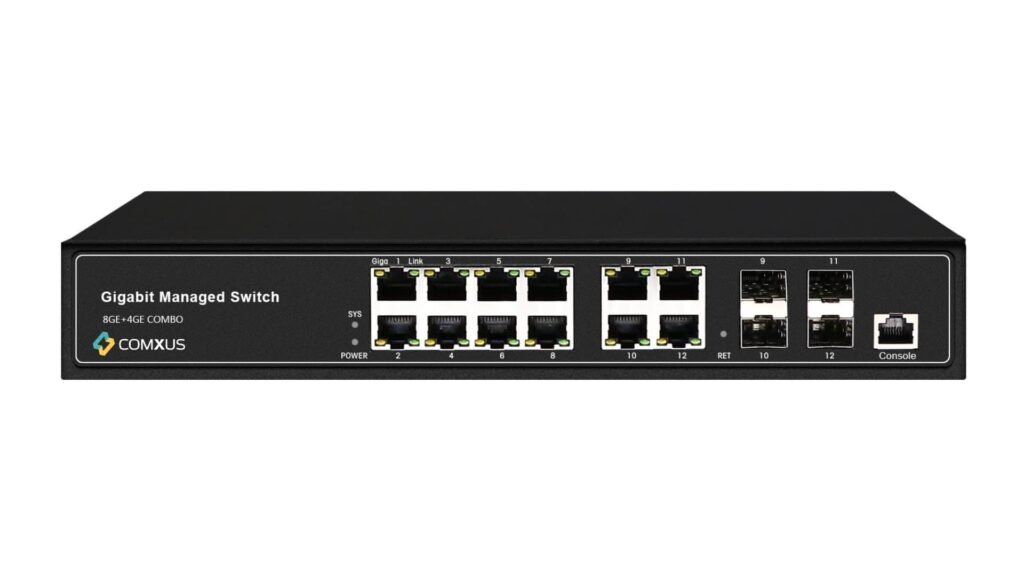

NETWORK PORT

 8×10/100/1000Mbps 1000Base-TX RJ45 Ports 4x1G SFP Ports

1x Console RJ45 Port
ENVIRONMENT DETECTION  1 group of input detection of environment temperature and humidity
PORT SPECIFICATION  1-8 port 10/100/1000BaseT(X)auto detection, AUTO- MDI/MDI-X
TRANSMISSION MODE  Store and Forward (full wire speed)
BANDWIDTH  20Gbps
PACKET FORWARDING  40.88Mpps
BUFFER  4.1M






TRANSMISSION DISTANCE

 10BASE-T. Cat3,4,5 UTP(≤250 meter)

100BASE-TX. Cat5 or later UTP(150 meter) 1000BASE-TX. Cat6 or later UTP(150 meter)

SFP: 1000M single and multimode optical module

with maximum distance ≤ 120km (depending on the

optical module)
FLASH 4GB
RAM 6GB


WATT

 Standby power consumption

Network full load power consumption≤15W




LED INDICATOR

 POWER: Power LED

SYS: System LED

9-12: SFP connection indicator

Port: Network connection indicator Green LED/100M+Orange LED/1000M

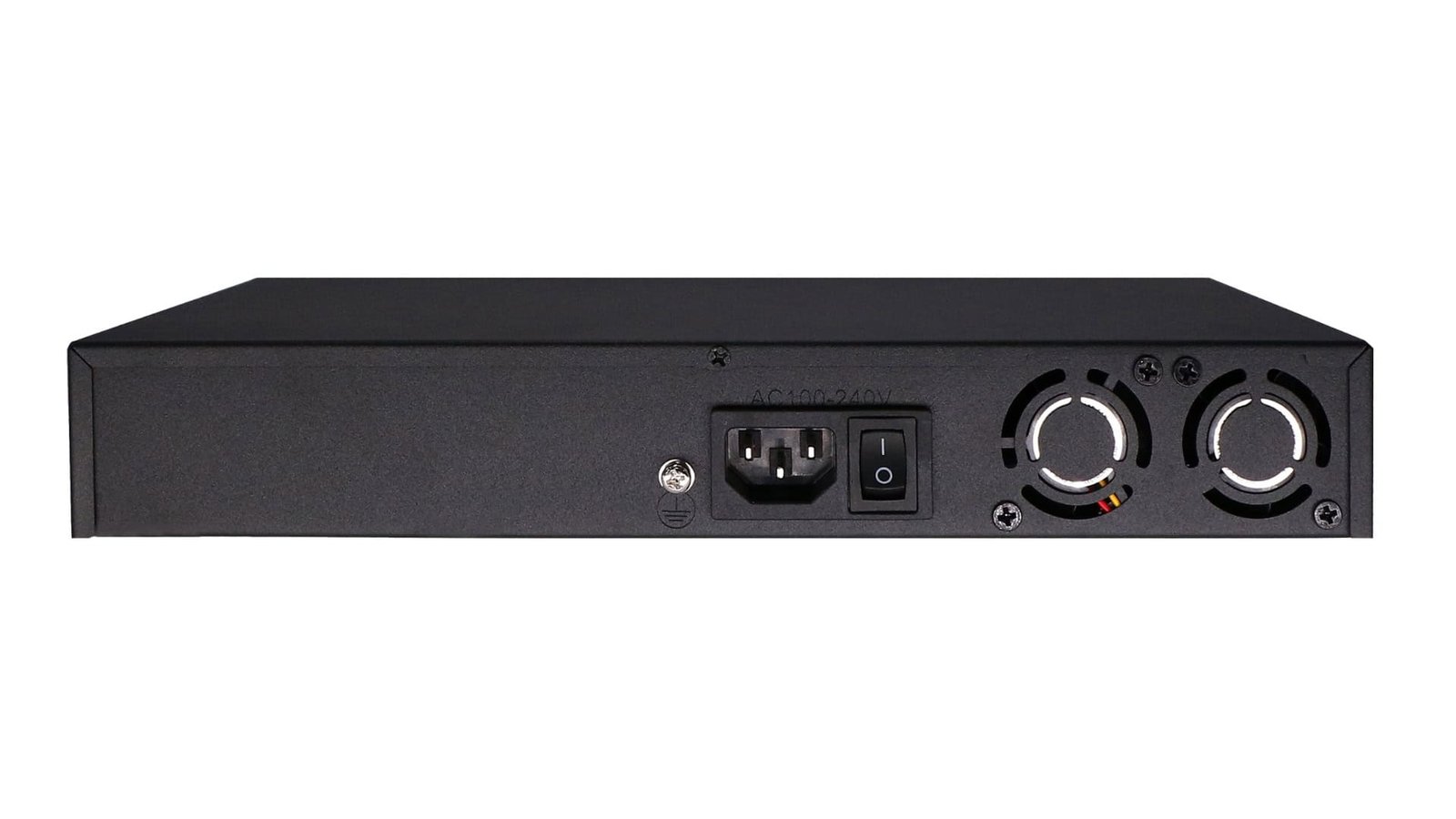

POWER INPUT Built-in power AC.100-240Vac 50-60Hz 0.2A max 15W
OPERATING TEMPERATURE/HUMIDITY -30 °C ~ + 60°C 5% 95% RH No coagulation
INGRESS PROTECTION IP30
LIGHTNING PROTECTION LEVEL 6KV
WEIGHT 1.3kg/ 2.0kg
DIMENSION 293mm*190mm*45mm 410mm*278mm*95mm
