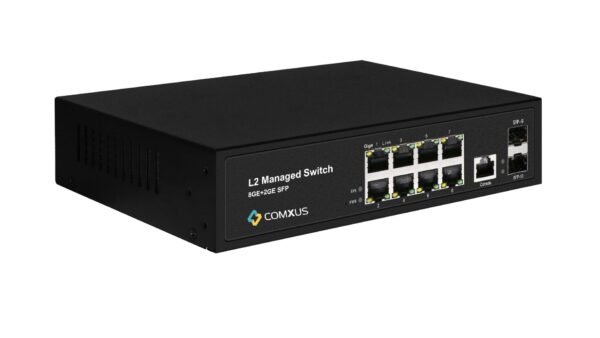

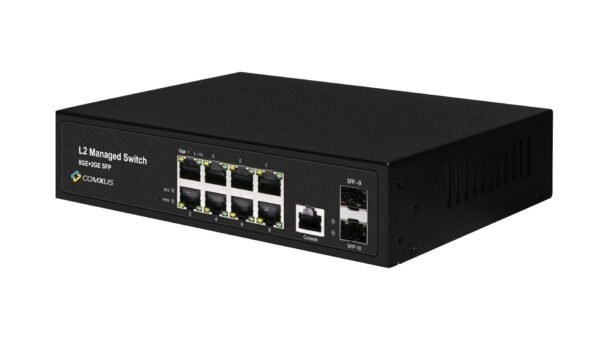

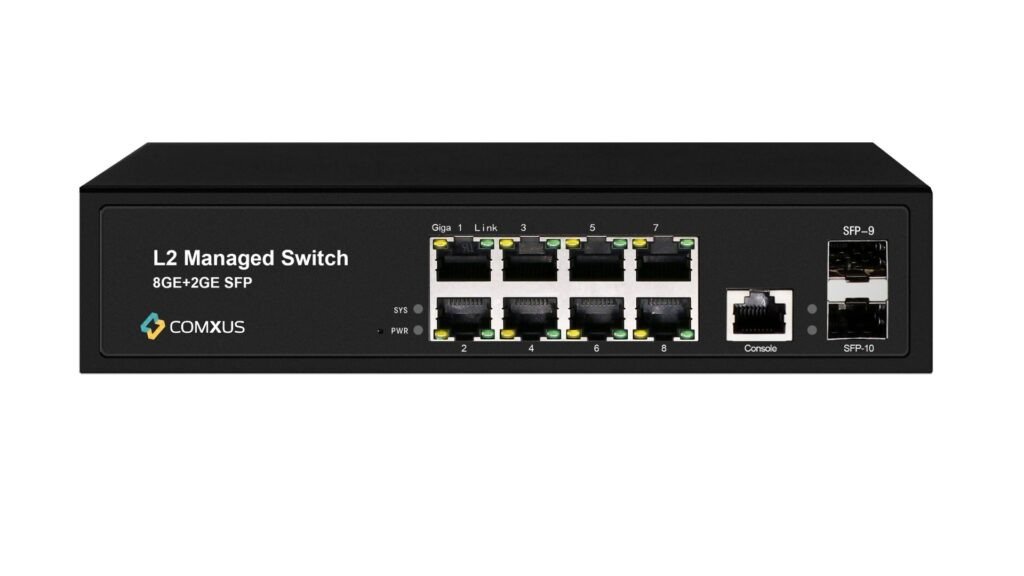

08 Port Network Managed Switch With 2G Upink SFP

CX-NA-8GS2D-L2

  • IEEE 802.3at Compliance
  • 1GbE SFP Slots
  • Layer 2 Switching
  • Web-Based Management
  • High Availability

Certifications:

CE

The Comxus CX-NA-8GS2D-L2 is an designed to deliver robust and reliable network performance. Featuring 1GbE ports and supporting 1GbE uplink durability and performance are critical. The CX-NA-8GS2D-L2 provides efficient power distribution to connected devices while ensuring seamless data transmission, making it an ideal choice for demanding industrial applications.

  • IEEE 802.3at Compliance: Supports IEEE 802.3at standards, providing efficient power delivery to connected devices.
  • 1GbE Downlink Ports: Equipped with multiple Gigabit downlink ports for high-speed network connectivity.
  • 1GbE: Offers reliable Gigabit uplink ports for seamless data transmission to higher-level network infrastructures.
  • 1GbE SFP Slots: Includes Gigabit SFP slots for flexible fiber optic connectivity options.
  • Layer 2 Switching: Operates at Layer 2 of the OSI model, ensuring efficient data packet forwarding and network management.
  • Web-Based Management: Features a web management interface for easy configuration and monitoring of network settings and performance.
  • High Availability: Designed for high availability to minimize downtime and ensure continuous network operation.
  • Scalability: Supports high scalability to accommodate growing network demands and expanding industrial setups.
NETWORK PORT  8×10/100/1000Mbps 1000Base-TX RJ45 Ports

2x1G SFP Ports

1xConsole RJ45 Port

ENVIRONMENT DETECTION  1 group of input detection of environment temperature and humidity
PORT SPECIFICATION  1-8 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X
TRANSMISSION MODE  Store and Forward (full wire speed)
BANDWIDTH  20Gbps
PACKET FORWARDING  14.88Mpps
BUFFER  4.1M
TRANSMISSION DISTANCE  10BASE-T . Cat3,4,5 UTP(≤250 meter)

100BASE-TX . Cat5 or later UTP(150 meter)

1000BASE-TX . Cat6 or later UTP(150 meter)

SFP: 1000M single and multimode optical

module with maximum

distance ≤ 120km (depending on the optical module)

FLASH   4GB
RAM   8GB
WATT  Standby power consumption

Network full load power consumption≤15W

LED INDICATOR  Port:1-8 LINK LED

Port:1-8 1G SPEED LED

Port:9-10 SFP LED

V1: DC 1 IN. V2: DC 2 IN

PW: POWER+SYS LED

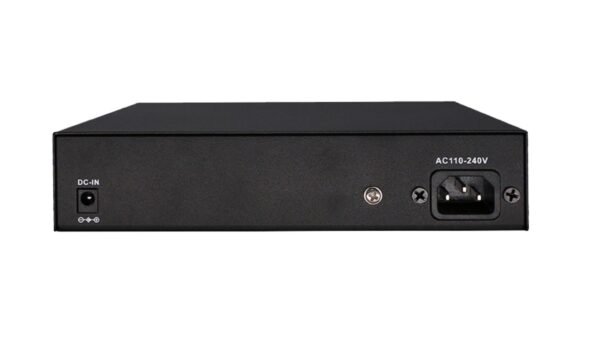

POWER INPUT  Built-in power AC.100-240Vac 50-60Hz 0.2A max 15W
OPERATING TEMPERATURE/HUMIDITY  -30 °C ~ +60°C 5% 95% RH No coagulation
INGRESS PROTECTION  IP30
LIGHTNING PROTECTION LEVEL  6KV
WEIGHT  1.0kg/ 1.3KG
DIMENSION  206mm*140mm*45mm

265mm*220mm*68mm

CX-NA-8GS2D-L2 Datasheet Download
