8 Port Managed PoE Switch With 2 Giga Uplink SFP

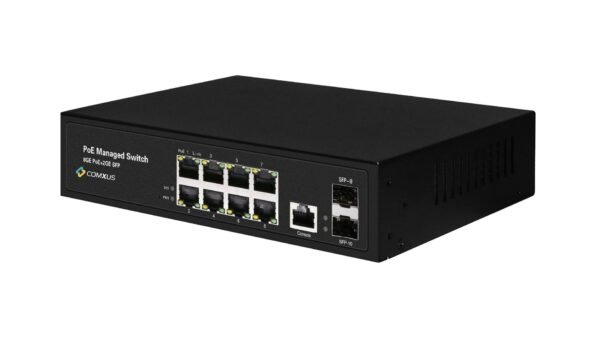

l2 8 port switch with 2 sfp side view

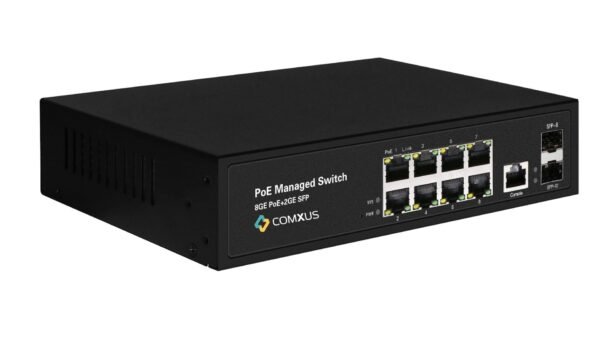

l2 8 port switch with 2 sfp side view
l2 8 port switch with 2 sfp back view

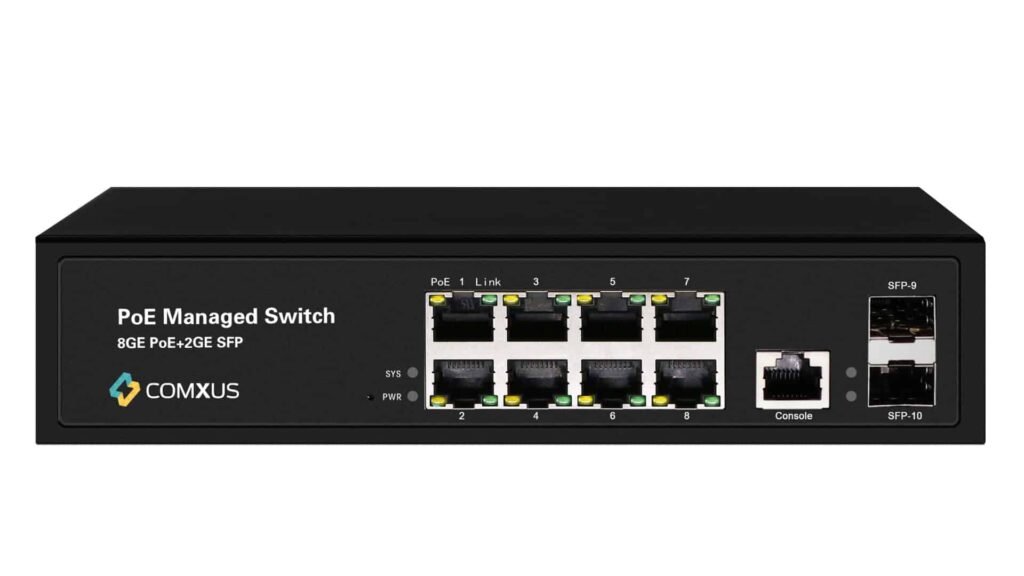

08 PORT NETWORK MANAGED POE SWITCH WITH 2G Upink SFP

CX-NPA-8GS2D-L2

  • IEEE 802.3at/af Compliance
  • 1GbE Downlink Ports
  • 1GbE SFP Slots
  • Layer 2 Switching
  • Power over Ethernet (PoE)
  • Web-Based Management
Get A Quote

Certifications:

CE

The Comxus CX-NPA-8GS2D-L2 is designed to deliver robust and reliable network performance. Featuring 1GbE ports and supporting 1Gb durability and performance are critical. The Comxus CX-NPA-8GS2D-L2 provides efficient power distribution to connected devices while ensuring seamless data transmission, making it an ideal choice for demanding industrial applications.

  • IEEE 802.3at/af Compliance: Supports IEEE 802.3at/af PoE standards, providing efficient power delivery to connected devices.
  • 1GbE Downlink Ports: Equipped with multiple Gigabit downlink ports for high-speed network connectivity.
  • 1GbE: Offers reliable Gigabit uplink ports for seamless data transmission to higher-level network infrastructures.
  • 1GbE SFP Slots: Includes Gigabit SFP slots for flexible fiber optic connectivity options.
  • Layer 2 Switching: Operates at Layer 2 of the OSI model, ensuring efficient data packet forwarding and network management.
  • Power over Ethernet (PoE): Provides efficient power distribution to connected devices, reducing the need for separate power supplies.
  • Web-Based Management: Features a web management interface for easy configuration and monitoring of network settings and performance.
NETWORK PORT  8×10/100/1000Mbps 1000Base-TX RJ45 PoE Ports

Port 1 support 24V/48V PoE (single port power MAX 90W)

Port 2~8 support PoE (single port power MAX 30W)

2×1G SFP Ports

1x Console RJ45 Port
ENVIRONMENT DETECTION  1 group of input detection of environment temperature and humidity
PORT SPECIFICATION  1-8 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X
TRANSMISSION MODE  Store and Forward (full wire speed)
BANDWIDTH  20Gbps
PACKET FORWARDING  14.88Mpps
BUFFER  4.1M
TRANSMISSION DISTANCE  10BASE-T： Cat3,4,5 UTP (≤250 meter)

100BASE-TX： Cat5 or later UTP (150 meter)

1000BASE-TX： Cat6 or later UTP (150 meter)

SFP: 1000M single and multimode optical module with maximum distance ≤ 120km (depending on the optical module)
FLASH  4GB
RAM  6GB
WATT  Standby power consumption

Network full load power consumption≤15W
LED INDICATOR  PWR: Power LED

SYS: System LED

9-10: SFP connection   indicator

Port: Orange=PoE LED,

Green=LAN Link LED
POWER INPUT  Built-in power AC：100-240Vac 50-60Hz 2A   max 160W
OPERATING TEMPERATURE/HUMIDITY  -30 °C ~ + 60°C 5% 95% RH No coagulation
INGRESS PROTECTION  IP30
LIGHTNING PROTECTION LEVEL  6KV
WEIGHT  1.0kg/1.4kg
DIMENSION  206mm*140mm*45mm

265mm*220mm*68mm
