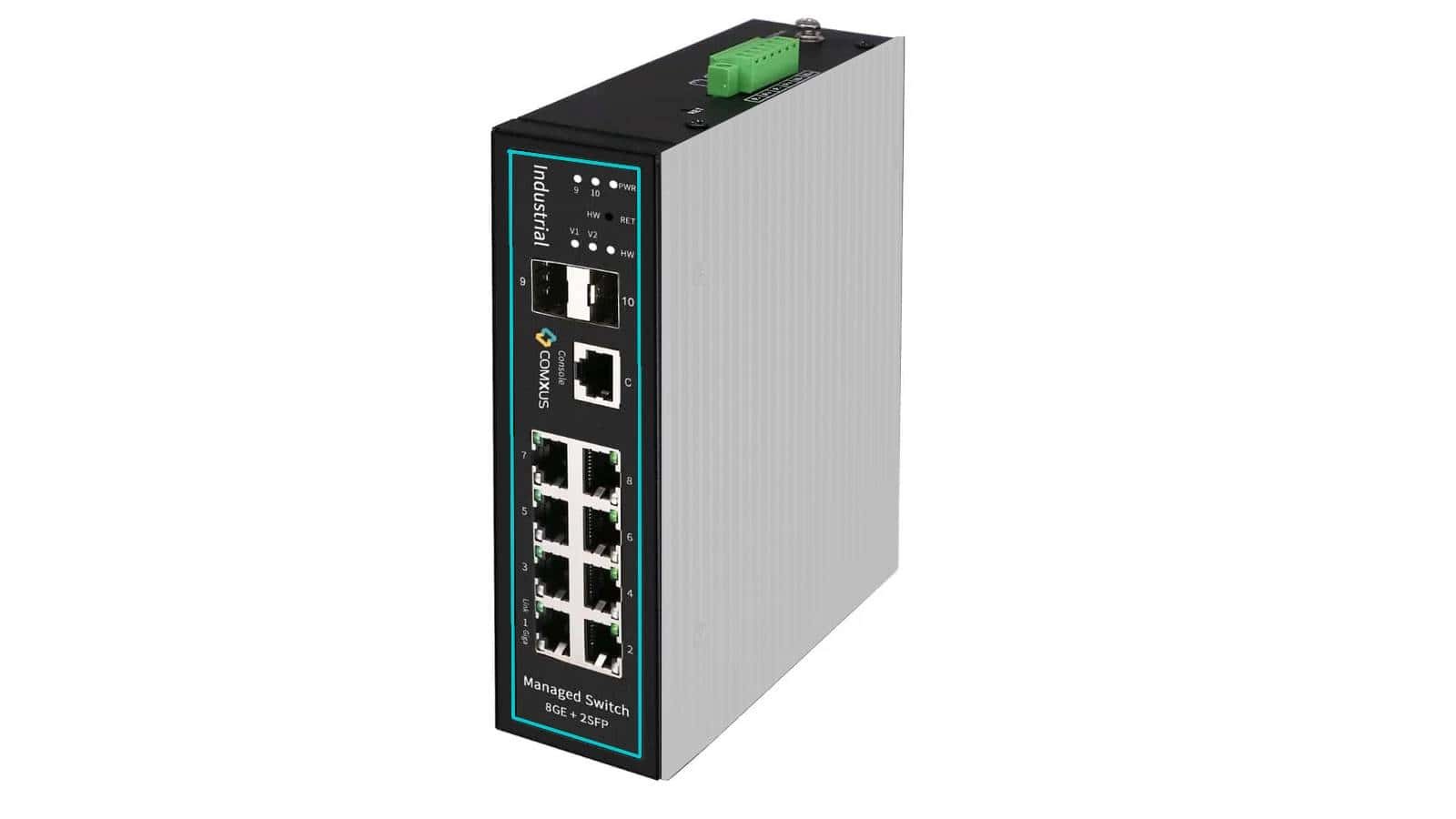

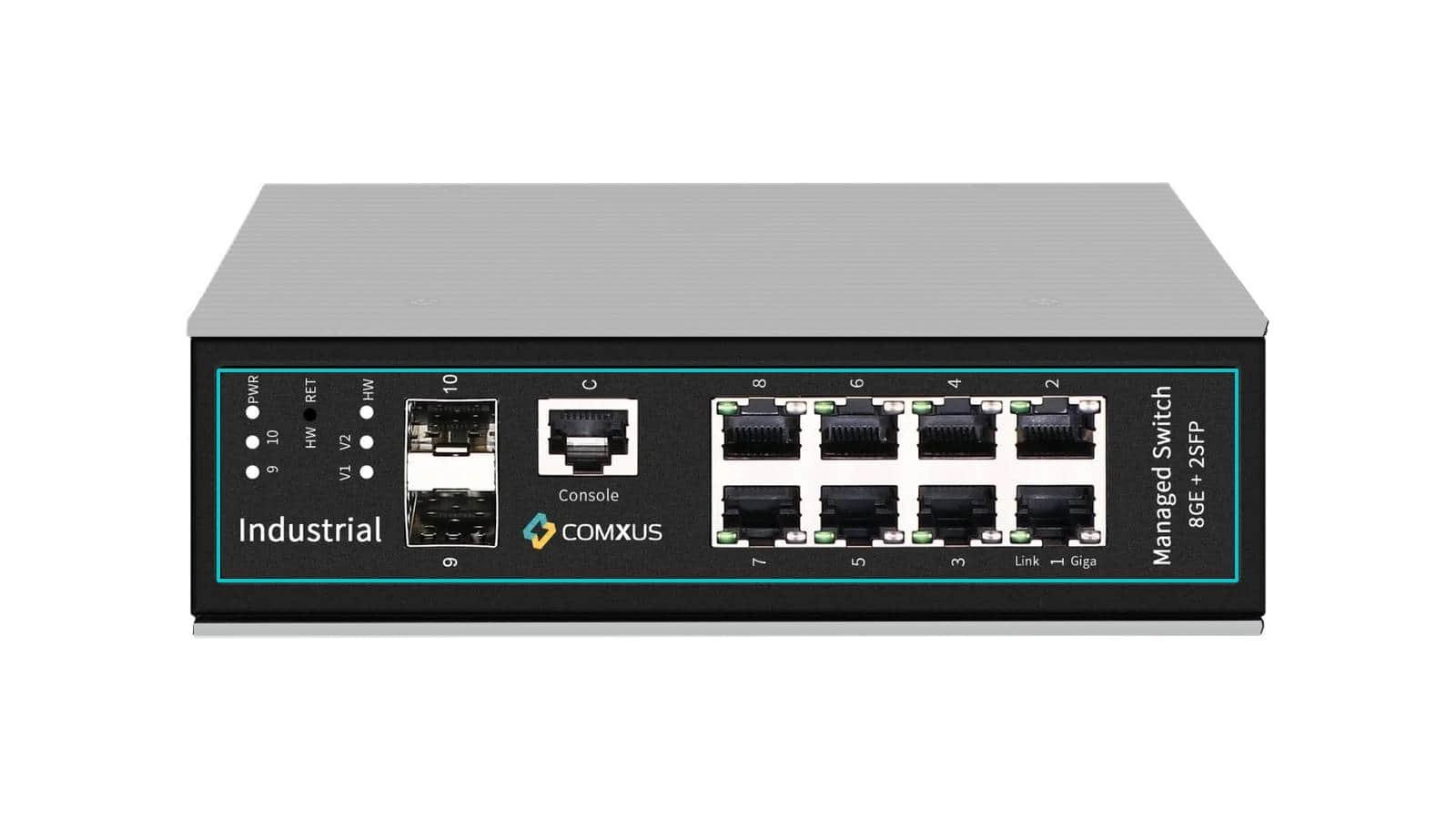

The Comxus CX-NA-8GS2I-L2 is an industrial-grade witch designed to deliver robust and reliable network performance. Featuring 1GbE ports and supporting 1GbE uplinks, this switch is engineered for industrial environments where high durability and performance are critical. The CX-NA-8GS2I-L2 provides efficient power distribution to connected devices while ensuring seamless data transmission, making it an ideal choice for demanding industrial applications.
| NETWORK PORT |  8×10/100/1000Mbps 1000Base-TX RJ45 Ports
2x1G SFP Ports 1x Console RJ45 Port |
| ENVIRONMENT DETECTION | Â 1 group of input detection of environment temperature and humidity |
| PORT SPECIFICATION | Â 1-8 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X |
| TRANSMISSION MODE | Â Store and Forward (full wire speed) |
| BANDWIDTH | Â 56Gbps |
| PACKET FORWARDING | Â 14.88Mpps |
| BUFFER | Â 4.1M |
| TRANSMISSION DISTANCE |  10BASE-TX: Cat3,4,5 UTP (≤250 meter)
100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-TX: Cat6 or later UTP (≤1000 meter) 1000BASE-SX: 62.5μm/50μm MMF(2m~550m) 1000BASE-LX: 62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) BIDI supported |
| FLASH | Â 4GB |
| RAM | Â 6GB |
| WATT |  Standby power consumption≤ 5W;
Full-load power consumption≤ 15W |
| LED INDICATOR | Â 9 10:(SFP LED)
Port 1-8(Green=100；Green+Orange=100M） PWR:(Power/system LED) V1:(Master power LED) V2:(Slave power LED) HW:(Ring network ON LED) |
| POWER INPUT | Â 2 groups DC POWER in Support reverse
polarity protection Power: DC12-57V MAX 15W |
| OPERATING TEMPERATURE/HUMIDITY |  -30°C ~ +85°C 5% 95% RH No coagulation |
| INGRESS PROTECTION | Â IP40 |
| Alarm | Â In/ Out (Optional) |
| LIGHTNING PROTECTION LEVEL | Â 6KV |
| WEIGHT | Â 0.9kg |
| DIMENSION | Â 179mm*134mm*46mm |
