8 port industrial grade poe switch with 4 sfp uplink ports
CX-NPA-8GS4I-L2
CX-NPA-8GS4I-L2 SIDE VIEW

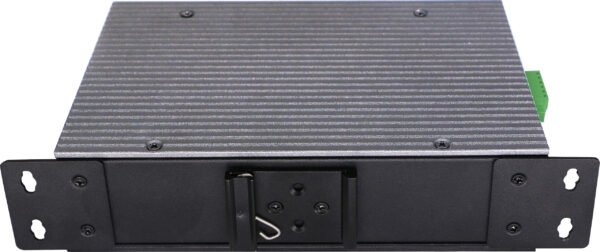

CX-NPA-8GS4I-L2 REAR VIEW

08 Port Managed Industrial Grade Switch With 4 Giga Uplink SFP

CX-NPA-8GS4I-L2

  • Industrial-Grade Design
  • IEEE 802.3at/af/bt Compliance
  • 1GbE Downlink Ports
  • 1GbE SFP Slots
  • Layer 2 Switching
  • Web-Based Management
  • Power over Ethernet (PoE)
Get A Quote

Certifications:

CE

The CX-NPA-8GS4I-L2 is an industrial-grade Power over Ethernet (PoE) switch designed to deliver robust and reliable network performance. Featuring 1GbE ports and supporting 1GbE uplinks, this switch is engineered for industrial environments where high durability and performance are critical. The CX-NPA-8GS4I-L2 provides efficient power distribution to connected devices while ensuring seamless data transmission, making it an ideal choice for demanding industrial applications.

  • Industrial-Grade Design: Built to withstand harsh industrial environments, ensuring reliable performance under extreme conditions.
  • IEEE 802.3at/af/bt Compliance: Supports IEEE 802.3at/af/bt PoE standards, providing efficient power delivery to connected devices.
  • 1GbE Downlink Ports: Equipped with multiple Gigabit downlink ports for high-speed network connectivity.
  • 1GbE: Offers reliable Gigabit uplink ports for seamless data transmission to higher-level network infrastructures.
  • 1GbE SFP Slots: Includes Gigabit SFP slots for flexible fiber optic connectivity options.
  • Layer 2 Switching: Operates at Layer 2 of the OSI model, ensuring efficient data packet forwarding and network management.
  • Web-Based Management: Features a web management interface for easy configuration and monitoring of network settings and performance.
  • Power over Ethernet (PoE): Provides efficient power distribution to connected devices, reducing the need for separate power supplies.
  • High Availability: Designed for high availability to minimize downtime and ensure continuous network operation.
  • Scalability: Supports high scalability to accommodate growing network demands and expanding industrial setups.
NETWORK PORT  8×10/100/1000Mbps 1000Base-TX RJ45 PoE Ports

Port 1~2 support 24V/48V PoE (single port

power MAX 30W)

Port 3~4 support BT PoE (single port power MAX 90W)

Port 5~8 support PoE (single port power MAX 30W)

4×1G SFP Ports

1x Console RJ45 Port
ENVIRONMENT DETECTION  1 group of input detection of environment temperature and humidity
PORT SPECIFICATION  1-8 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X
TRANSMISSION MODE  Store and Forward (full wire speed)
BANDWIDTH  128Gbps
PACKET FORWARDING  40.32Mpps
BUFFER  4.1M
TRANSMISSION DISTANCE  10BASE-TX : Cat3,4,5 UTP(≤250 meter)

100BASE-TX : Cat5 or later UTP(≤100 meter) 1000BASE-TX : Cat6 or later UTP(≤1000 meter) 1000BASE-

SX : 62.5μm/50μm MMF(2m~550m)

1000BASE-LX : 62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

BIDI supported
FLASH  4GB
RAM  6GB
WATT  Standby power consumption

Network full load power consumption≤25W Full load power consumption ≤240W
LED INDICATOR  PoE Port: 1~2 (Green: 48V/ Orange=24V) & Link

(Green: LINK LED) PoE Port: 3~8

Green: LINK LED & Orange: POE LED SFP

Port:9~12 (SFP LED)

PWR: (Power/system LED) V1: (Master power

LED) V2: (Slave  power LED)

HW: (Ring network ON LED)
POWER INPUT  2 group of independent power input SW: DC 12-57V ; PoE:

DC 37-57V
OPERATING TEMPERATURE/HUMIDITY  -40°C ~ +85°C 5% 95% RH No coagulation
INGRESS PROTECTION  IP40
Alarm  In/ Out (Optional)
LIGHTNING PROTECTION LEVEL  6KV
WEIGHT  1.3kg
DIMENSION  188mm x 130mm x 50mm
