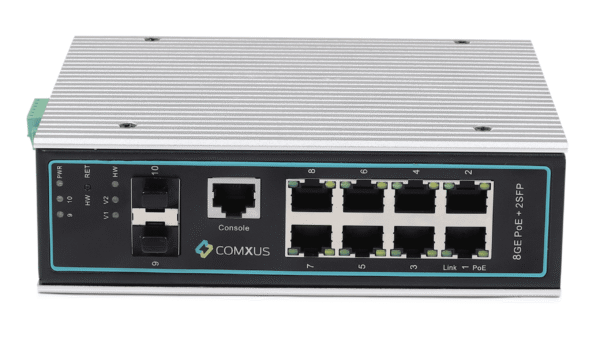

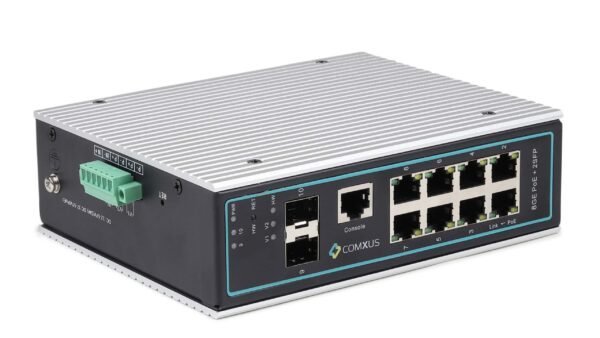

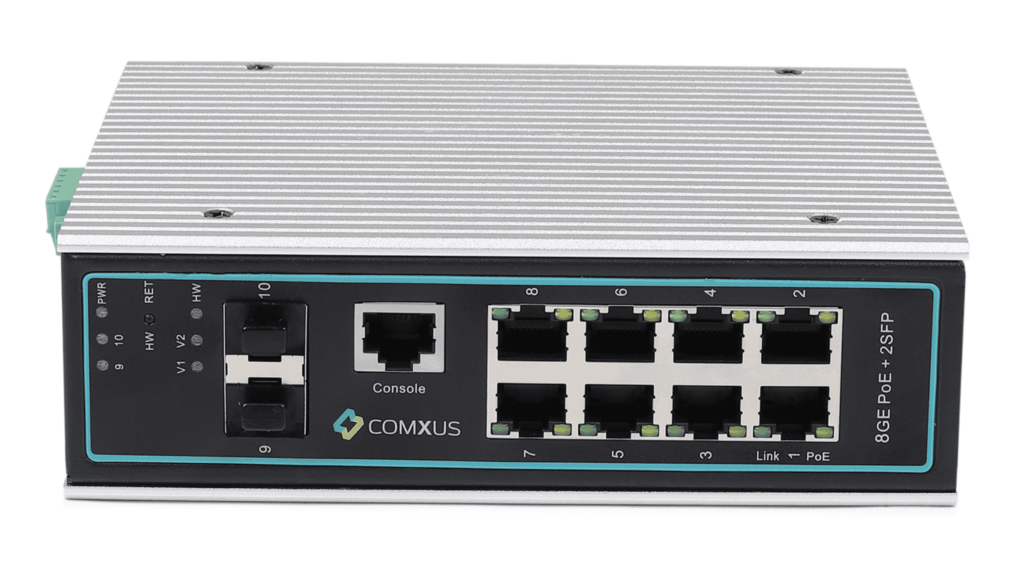

The 8 Port Managed Industrial Grade PoE Switch With 2 Giga Uplink SFP is a high-performance solution engineered for mission-critical industrial networks. Built with durability, speed and flexibility in mind, this rugged switch combines Power over Ethernet (PoE) with advanced Layer 2+ management features to ensure seamless operations across harsh environments.
By integrating both data connectivity and power delivery into a single Ethernet cable, it reduces installation costs, simplifies deployments and enhances efficiency. From IP surveillance to wireless networking and industrial automation, this switch delivers the reliability modern industries demand.
1. Power over Ethernet (PoE) Support: The switch powers devices such as IP cameras, VoIP phones and wireless access points directly through Ethernet cables, eliminating the need for separate power supplies.
2. Two Gigabit Uplink SFP Ports: With dual Gigabit SFP uplinks, the switch ensures high-speed fibre connectivity, enabling long-distance communication for large-scale industrial systems.
3. Industrial-Grade Reliability: Built to withstand extreme conditions such as temperature variations, vibrations and dust, this switch guarantees uninterrupted performance in oil & gas, transportation and factory environments.
4. Managed Switching Capabilities: Advanced Layer 2+ features such as VLAN segmentation, QoS (Quality of Service), and Spanning Tree Protocol (STP) optimise traffic flow, improve security and minimise downtime.

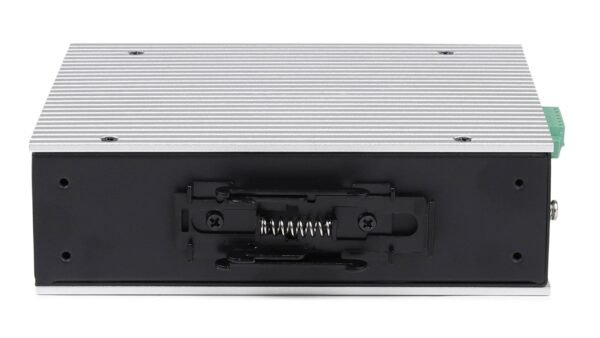

5. Rugged Design for Harsh Environments: The compact and robust build ensures easy deployment in control rooms, cabinets or field installations where reliability is essential.
The 8 Port Managed Industrial Grade PoE Switch With 2 Giga Uplink SFP offers more than just connectivity. It empowers industrial IT teams to manage networks with precision, reduce downtime and support bandwidth-heavy applications without performance loss.
Whether you are managing IP surveillance systems, deploying automation solutions, or expanding long-distance fibre networks, this switch provides the speed, durability and flexibility required in today’s industrial infrastructure.
| NETWORK PORT | 4×10/100/1000Mbps 1000Base-TX RJ45 PoE Ports
Port 1 support 24V/48V PoE (single port power MAX 60W) Port 2~4 support BT PoE (single port power MAX 30W) 2X1G SFP Ports 1x Console RJ45 Port |
| ENVIRONMENT DETECTION | 1 group of input detection of environment temperature and humidity |
| PORT SPECIFICATION | 1-4 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X |
| TRANSMISSION MODE | Store and Forward (full wire speed) |
| BANDWIDTH | 56Gbps |
| PACKET FORWARDING | 14.44Mpps |
| BUFFER | 4.1M |
| TRANSMISSION DISTANCE | 10BASE- T: Cat3,4,5 UTP (≤250 meter)
100BASE -TX: Cat5 or later UTP (≤100 meter) 1000BASE- TX: Cat6 or later UTP (≤1000 meter) 1000BASE-SX:62.5μm/50μm MMF(2m~550m) 1000BASE-LX: 62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) BIDI supported |
| FLASH | 2GB |
| RAM | 6GB |
| WATT | Standby power consumption≤5W;
Network Full-load power consumption≤10W;Full load power consumption≤250 |
| LED INDICATOR | 5 6:(SFP LED)
Port 1-4(Green=LINK LED Orange=POE LED PWR:(Power/system LED) P1:(Master power LED) P2:(Slave power LED) HW:(Ring network ON LED) |
| POWER INPUT | 2 group of independent power input SW:
DC12-57V PoE: DC37-57V |
| OPERATING TEMPERATURE/HUMIDITY | -30°C ~ +85°C 5% 95% RH No coagulation |
| INGRESS PROTECTION | IP40 |
| Alarm | In/ Out (Optional) |
| LIGHTNING PROTECTION LEVEL | 6KV 8/20us8KV ESD IP40 |
| WEIGHT | 0.82/1.1kg |
| DIMENSION | 157mm*115mm*40mm
310mm*210mm*60mm |
