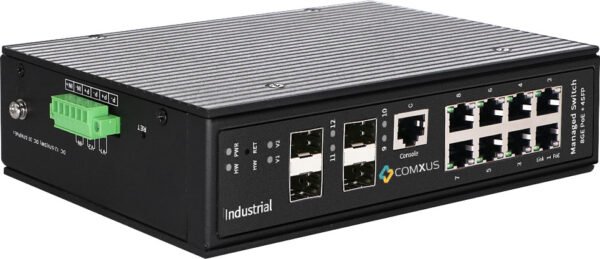

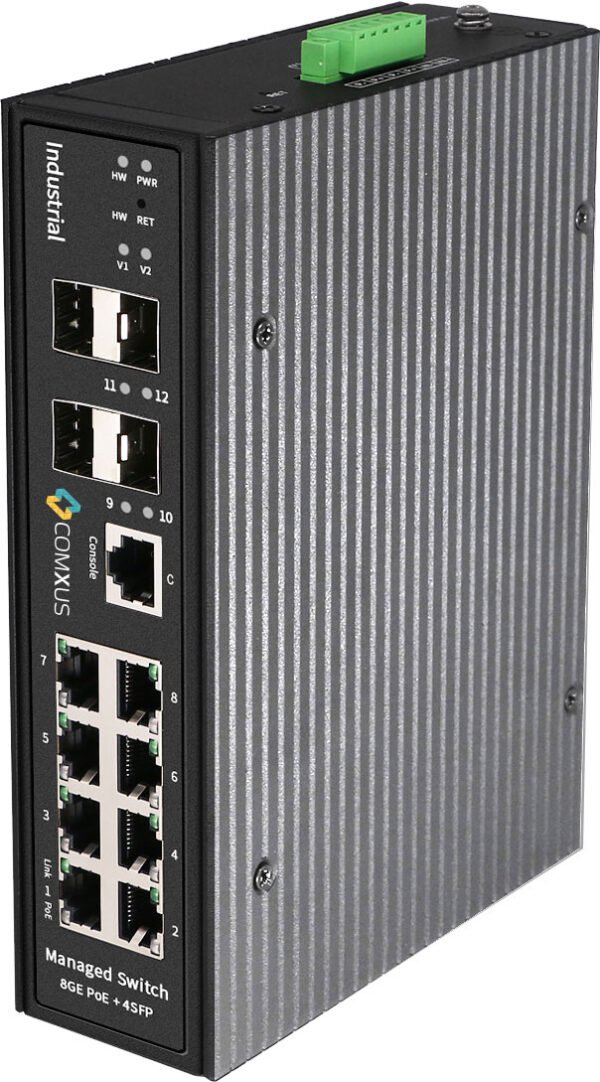

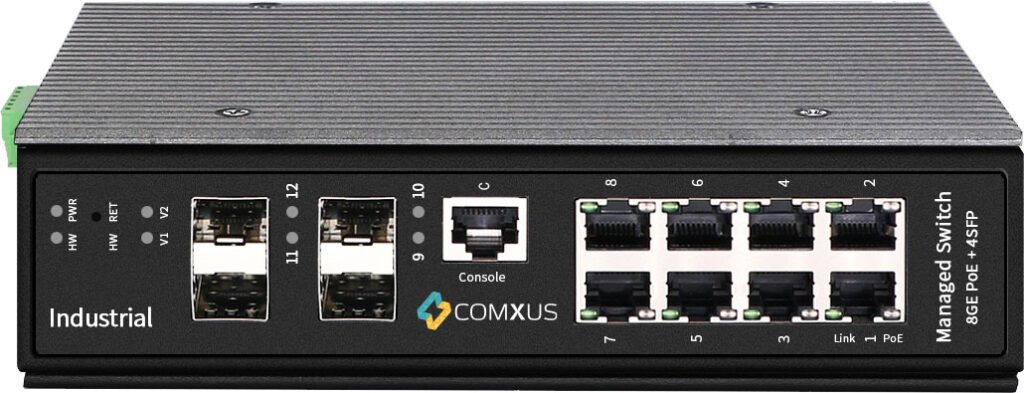

Engineered for mission-critical industrial networks, this high-performance Layer 3 managed switch features 8 Gigabit Ethernet ports and 4 high-speed 10G SFP uplinks, offering a robust backbone for large-scale deployments. Designed to operate reliably in harsh environments, it enables seamless integration of bandwidth-intensive devices such as IP surveillance systems, wireless access points, and industrial control systems. Advanced Layer 3 routing, QoS, and security features ensure optimal performance, while the 10G SFP uplinks provide ultra-fast, long-distance fiber connectivity across plant floors or between network nodes.
|
NETWORK PORT |
8×10/100/1000Mbps 1000Base-TX RJ45 PoE Ports Port 1 support 24V/48V PoE (power MAX 90W)
Port 2~4 support BT PoE (single port power MAX 30W) 4*100/1000/2500/10000M SFP 1x Console RJ45 Port |
| ENVIRONMENT DETECTION | 1 group of input detection of environment temperature and humidity |
| PORT SPECIFICATION | 1-8 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X |
| TRANSMISSION MODE | Store and Forward (full wire speed) |
| BANDWIDTH | 128Gbps |
| PACKET FORWARDING | 71.42Mpps |
| BUFFER | 12Mbit SRAM Packet Buffer |
|
TRANSMISSION DISTANCE |
10BASE-TX : Cat3,4,5 UTP(≤250 meter)
100BASE-TX : Cat5 or later UTP(≤100 meter) 1000BASE-TX : Cat6 or later UTP(≤1000 meter) 1000BASE-SX : 62.5μm/50μm MMF(2m~550m) 1000BASE-LX : 62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m) BIDI supported |
| FLASH | 4GB |
| RAM | 6GB |
|
WATT |
Standby Power Consumption
Network Full Load Power Consumption≤25W Full Load Power Consumption ≤240W |
|
LED INDICATOR |
Port:1-8 LINK LED Port:1-8 PoE LED Port:9-12 SFP LED V1: DC 1 IN
V2: DC 2 IN SYS: PoE DOG on/off PW: POWER LED |
| POWER INPUT | 2 groups DC POWER in DC48-57V MAX 240W |
| OPERATING TEMPERATURE/HUMIDITY | -30°C ~ +85°C 5% 95% RH No coagulation |
| INGRESS PROTECTION | IP40 |
| Alarm | In/ Out (Optional) |
| LIGHTNING PROTECTION LEVEL | 6KV |
| WEIGHT | 1.3kg |
| DIMENSION | 188mm x 130mm x 50mm |
