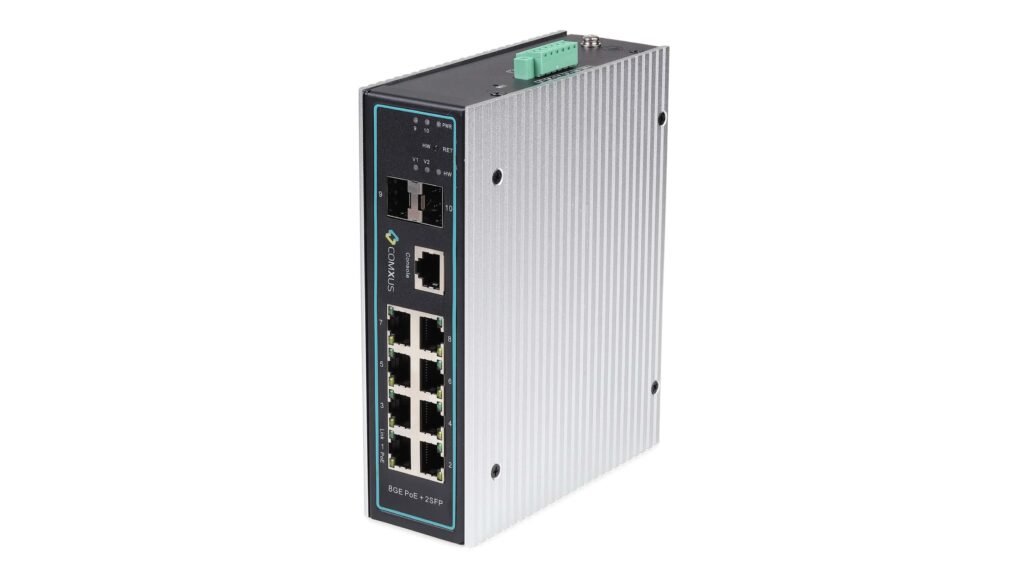

08 PORT L3 Industrial-grade PoE Switch With 2 10Giga SFP

CX-NPA-8GS20I-L3

  • IEEE 802.3at/af/bt Compliance
  • Layer 3 Switching
  • High Port Density
  • 10G Uplink SFP Ports
  • Industrial-Grade Design

Certifications:

CE

The Comxus Industrial Grade 8 Port L3 PoE Switch is designed for mission-critical networks where performance and reliability cannot be compromised.

It comes with 8 Gigabit PoE ports and 2 high-speed 10G SFP+ uplinks, ensuring smooth power delivery and data transmission for applications like IP surveillance, wireless access points and industrial automation systems.

By supporting IEEE 802.3af/at/bt PoE standards, this switch simplifies deployment and reduces infrastructure costs.

It eliminates the need for separate cabling while ensuring efficient power distribution. Its advanced Layer 3 switching and QoS features further enhance traffic management, making it an ideal solution for bandwidth-heavy industrial networks.

 Network Port



 8×10/100/1000Mbps 1000Base-TX RJ45 PoE Ports

 Port 1 support 24V/48V PoE (single port power MAX 90W)

 Port 2~8 support PoE (single port power MAX 30W)

 2*1G/2.5G/10G SFP

 1x Console RJ45 Port

RESET KEY   1x Reset Key
ENVIRONMENT DETECTION   1 group of input detection of environment temperature and humidity
CPU   MIPS-800MHz
DDR   2G DDR3
PORT SPECIFICATION   1-8 port 10/100/1000BaseT(X)auto detection
TRANSMISSION MODE    Store and Forward (full wire speed)
BANDWIDTH   128Gbps
PACKET FORWARDING   71.42Mpps
BUFFER   12Mbit SRAM Packet Buffer
TRANSMISSION DISTANCE   10BASE-T : Cat3,4,5 UTP(≤250 meter)

 100BASE-TX : Cat5 or later UTP(150 meter)

 1000BASE-TX : Cat6 or later UTP(150 meter)

 SFP: 100M/1G/10G single-mode multi-mode optical module, the maximum distance is ≤120km (depending on the optical module)

FLASH   2GB
RAM   4GB
WATT   Full load Power consumption ≤415W
LED INDICATOR   Port:1-8 LINK LED

 Port:1-8 PoE LED

 Port:9-10 SFP LED

 V1: DC 1 IN ; V2: DC 2 IN

 PW: POWER+SYS LED

POWER INPUT   2 groups DC POWER in

 Support reverse polarity protection

 Without poe  DC12-57V MAX 15W

 POE:  DC37-57V MAX 375W

OPERATING TEMPERATURE/HUMIDITY   -40° C +85° C; 5%~95% RH
INGRESS PROTECTION   IP30
LIGHTNING PROTECTION LEVEL   6KV
WEIGHT   1.31kg/1.48kg
DIMENSION   160mm*130mm*50mm

 280mm*165mm*79mm
