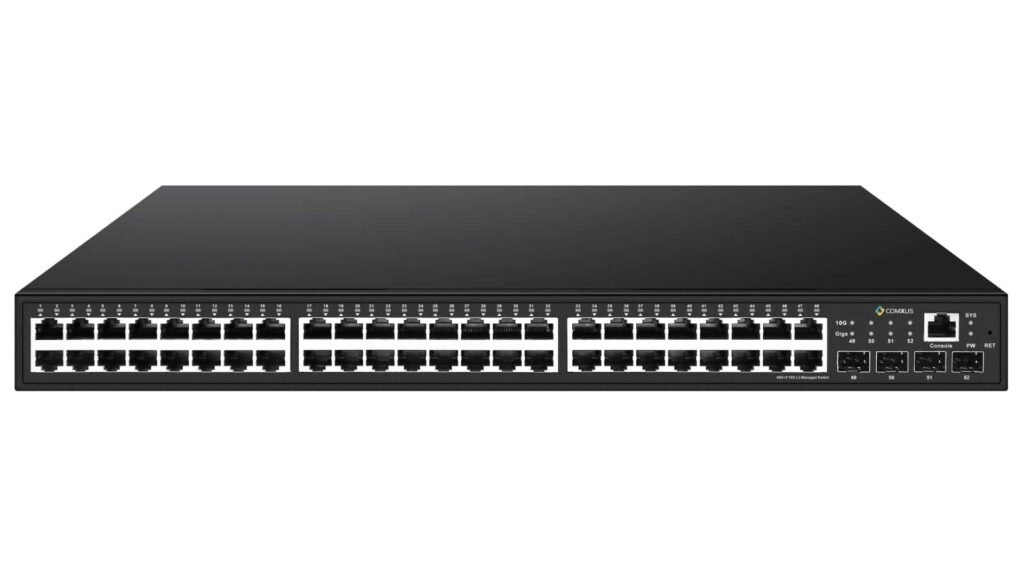

Comxus 48 port network l3 switch with front panel

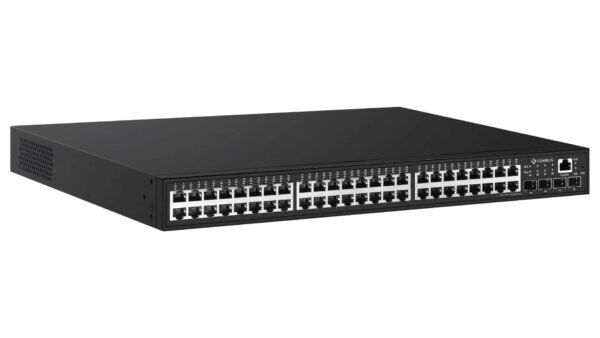

Comxus 48 port network l3 switch with side 1panel
Comxus 48 port network l3 switch with side panel

48 Port L3 Managed Switch With 4 Giga 10G Uplink SFP

CX-NA-48GS40D-L3

  • Layer 3 Switching
  • High Port Density
  • 10G Uplink SFP Ports
  • Enhanced Security
  • Quality of Service (QoS)
  • Redundancy and Reliability
  • User-Friendly Management
Get A Quote

Certifications:

CE

The Comxus CX-NA-48GS40D-L3 is a high-performance Layer 3 Managed switch engineered to provide robust and scalable network solutions for demanding industrial environments. With its advanced features and durable design, this switch ensures optimal network performance and reliability.

  • Layer 3 Switching: Supports advanced routing capabilities, including static and dynamic routing protocols, enabling efficient traffic management and network segmentation.
  • High Port Density: Equipped with 24 Gigabit Ethernet ports, offering ample connectivity for various industrial devices and applications.
  • 10G Uplink SFP Ports: Includes 4 10G SFP+ uplink ports, providing high-speed backbone connectivity and seamless integration with existing network infrastructure.
  • Enhanced Security: Features comprehensive security protocols such as ACLs, 802.1x authentication, and
    port security to protect against unauthorized access and ensure data integrity.
  • Quality of Service (QoS): Advanced QoS mechanisms prioritize critical traffic, ensuring smooth and reliable performance for latency-sensitive applications.
  • Redundancy and Reliability: Supports redundant power inputs and ring network topology, ensuring uninterrupted network operation and minimizing downtime.
  • User-Friendly Management: Offers an intuitive web interface, SNMP support, and CLI for simplified configuration, monitoring, and maintenance.
NETWORK PORT  48×10/100/1000Mbps 1000Base-TX RJ45 PoE Ports

Port 1~4 support 24V/48V PoE (single port power MAX 90W)

Port 5~48 support PoE (single port power MAX 30W)

4×10G SFP Ports

1x Console RJ45 Port
RESET KEY  1x Reset Key
ENVIRONMENT DETECTION  1 group of input detection of environment temperature and humidity
PORT SPECIFICATION  1-48 port 10/100/1000BaseT(X)auto detection
TRANSMISSION MODE  Store and Forward (full wire speed)
BANDWIDTH  256Gbps
PACKET FORWARDING  160.71Mpps
BUFFER  16M
TRANSMISSION DISTANCE  10BASE-T: Cat3,4,5 UTP (≤250 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

1000BASE-TX: Cat6 or later UTP (≤1000 meter)
FLASH  4GB
RAM  8GB
WATT  Standby power consumption

Network full load power consumption≤25W Full load power consumption ≤240W
LED INDICATOR  PWR: Power LED

SYS: System LED

1-48:10/100/1000M Network connection indicator

49-52:10G SFP connection indicator
POWER INPUT  Built-in power AC：100-240Vac

50-60Hz 7.5A

Max 625W
OPERATING TEMPERATURE/HUMIDITY  -30 °C ~ + 60 °C 5% 95% RH No coagulation
INGRESS PROTECTION  IP30
LIGHTNING PROTECTION LEVEL  6KV
WEIGHT  5.6kg/6.4kg
DIMENSION  440mm*360mm*45mm

553mm*403mm*93mm
