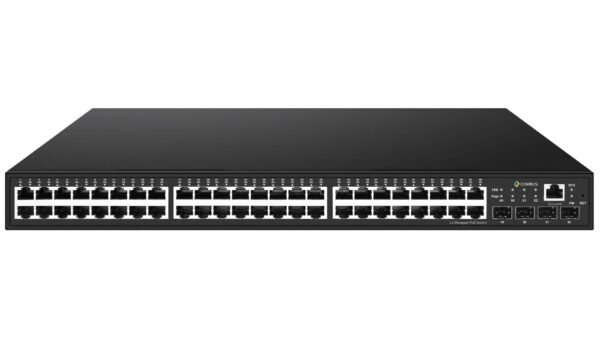

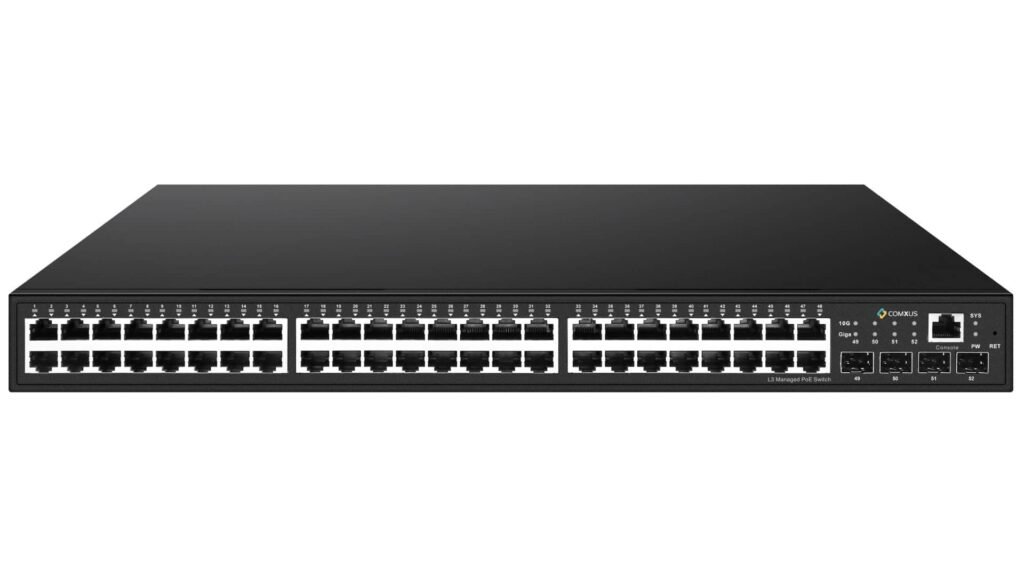

The Comxus CX-NPA-48GS40D-L3 is a high-performance Layer 3 Managed switch engineered to provide robust and scalable network solutions for demanding environments. With its advanced features and durable design, this switch ensures optimal network performance and reliability.
| NETWORK PORT | Â 48Ă—10/100/1000Mbps 1000Base-TX RJ45 PoE Ports Port 1~4 support 24V/48V PoE (single port power MAX 90W) Port 5~48 support PoE (single port power MAX 30W) 4Ă—10G SFP Ports 1x Console RJ45 Port |
| RESET KEY | Â 1x Reset Key |
| ENVIRONMENT DETECTION | Â 1 group of input detection of environment temperature and humidity |
| PORT SPECIFICATION | Â 1-48 port 10/100/1000BaseT(X)auto detection |
| TRANSMISSION MODE | Â Store and Forward (full wire speed) |
| BANDWIDTH | Â 176Gbps |
| PACKET FORWARDING | Â 160.71Mpps |
| BUFFER | Â 16M |
| TRANSMISSION DISTANCE |  10BASE-T: Cat3,4,5 UTP (≤250 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-TX: Cat6 or later UTP (≤1000 meter) |
| FLASH | Â 6GB |
| RAM | Â 8GB |
| WATT | Â 960W |
| LED INDICATOR | Â PWR: Power LED SYS: System LED 1-48:10/100/1000M Network connection indicator 49-52:10G SFP connection indicator |
| POWER INPUT |  Built-in power AC:100-240Vac 50-60Hz 7.5A |
| OPERATING TEMPERATURE/HUMIDITY |  -30 °C ~ + 60 °C 5% 95% RH No coagulation |
| INGRESS PROTECTION | Â IP30 |
| LIGHTNING PROTECTION LEVEL | Â 6KV |
| WEIGHT | Â 5.6kg/6.4kg |
| DIMENSION | Â 440mm*360mm*45mm 553mm*403mm*93mm |
