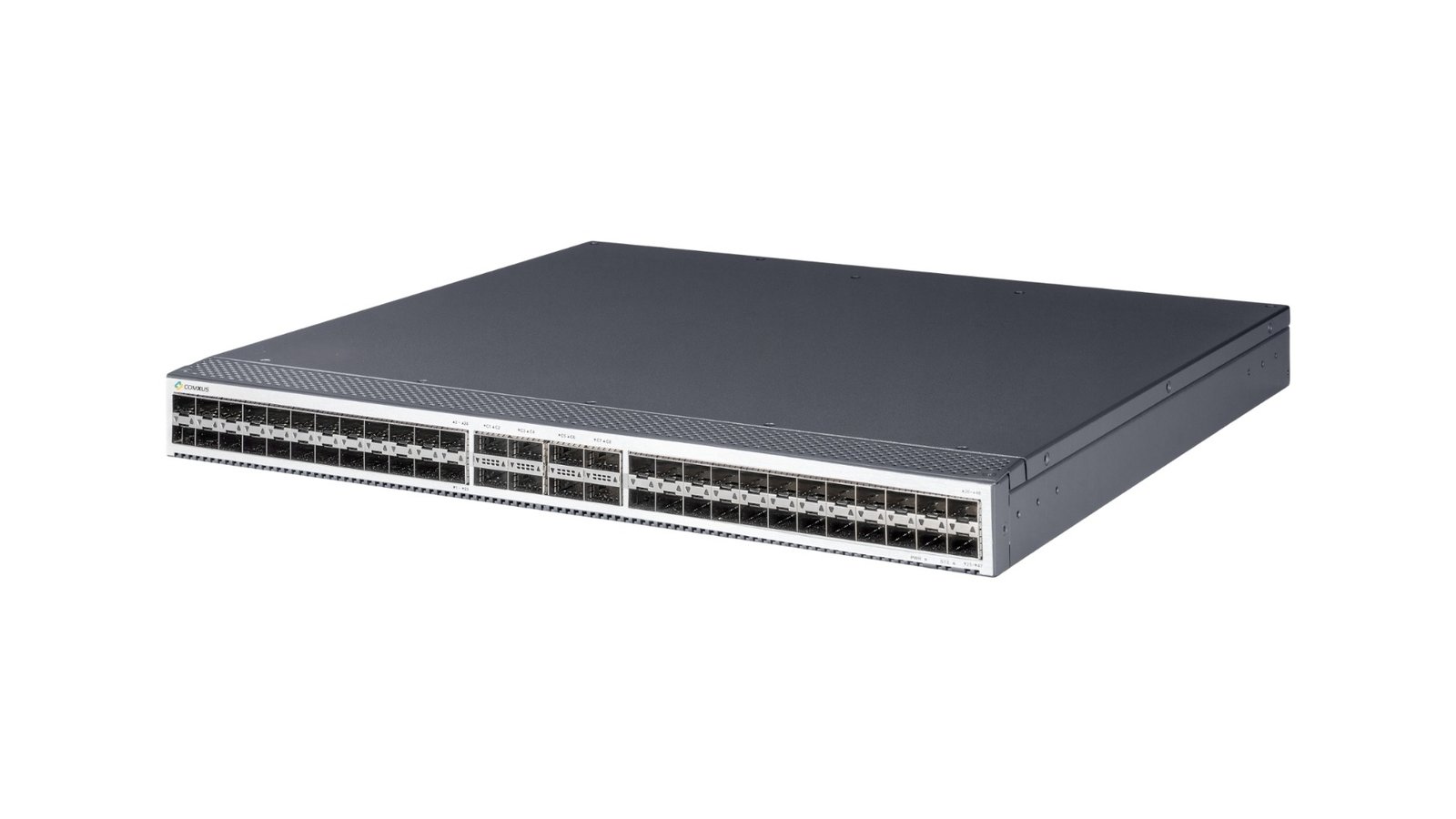

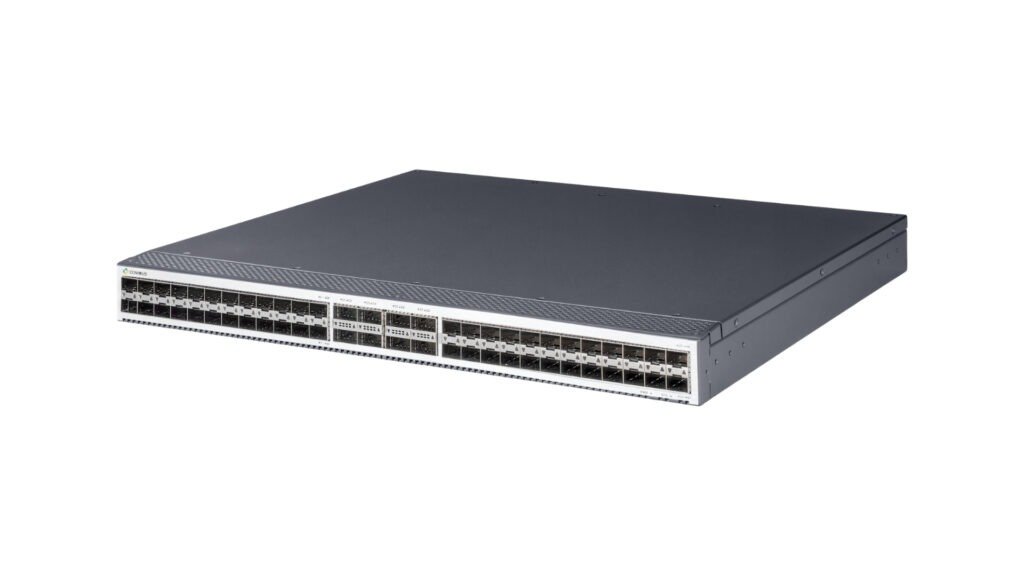

The COMXUS CX-NPA-48GS40D-L3 is a high-performance Layer 3 data center routing switch engineered for high-density 25G access and 100G uplink applications. It is designed for data center access, aggregation, cloud computing and Spine/Leaf deployments, with advanced VXLAN/EVPN, routing, security, QoS and high-availability functions.
| NETWORK PORT | Â 48 Ă— 25G SFP28; 8 Ă— 100G/40G QSFP28 |
| PORT SUPPORT | Â 25G SFP28; 100G/40G QSFP28 |
| CONSOLE / MANAGEMENT | Â 1 Ă— RJ45 Console; 1 Ă— Management Port; 1 Ă— USB 2.0 |
| SWITCHING CAPACITY | Â 4000 Gbps (4 Tbps) |
| PACKET FORWARDING | Â 2976 Mpps |
| TRANSMISSION MODE | Â Store-forward |
| POWER SLOTS | Â 2 hot-swappable power supply slots |
| POWER SUPPLY |  2 × AC 100–240 V, 50 Hz ±10%, hot-swappable |
| DIMENSIONS | Â 442.5 Ă— 400 Ă— 44 mm |
| OPERATING TEMPERATURE |  0°C to 40°C |
| OPERATING HUMIDITY |  5%–95% RH, non-condensing |
| STORAGE TEMPERATURE |  -20°C to 70°C |
| STORAGE HUMIDITY |  5%–95% RH, non-condensing |
| RACK MOUNTING | Â 1U, 19-inch rack-mounted installation |
| AIRFLOW | Â Front-to-back or back-to-front cooling mode |
| MAC TABLE | Â 210K |
| FLASH | Â 64GB |
| RAM | Â 8GB |
