48 port fiber switch

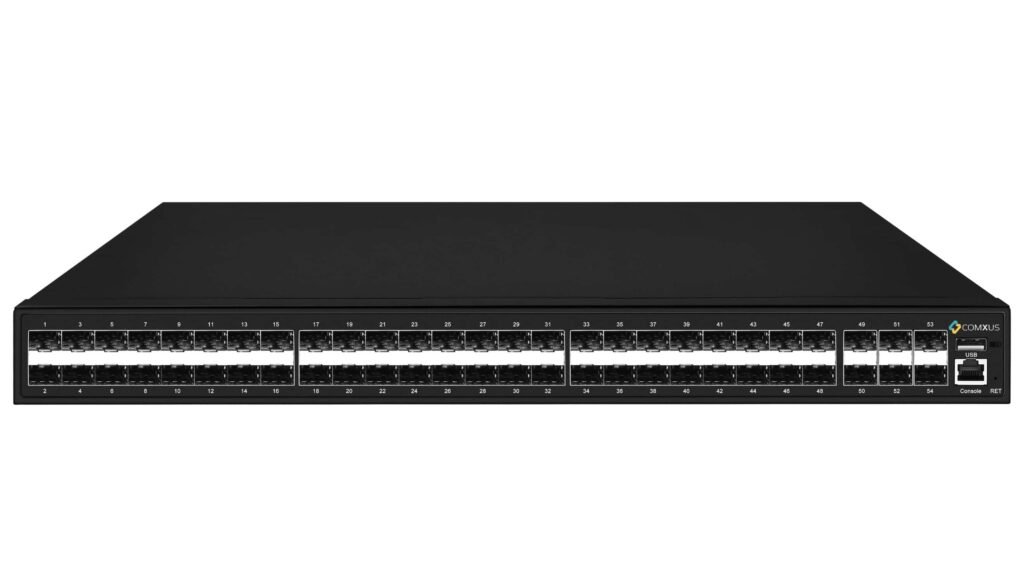

48 Port 1G Managed Stackable Network Fiber Switch

CX-NA-0GSF48S60-L3

  • High Port Density
  • Layer 3 Switching
  • Enhanced Security
  • Quality of Service (QoS)
  • User-Friendly Management
Get A Quote

Certifications:

CE

Comxus 48 Port 10G Managed Stackable Network Fiber Switch is the ultimate solution for high-performance enterprise networking. Designed for scalability and efficiency, this switch offers unparalleled speed, flexibility, and reliability, making it ideal for data centers, large enterprises, and industrial networks.

  • High Port Density: Features 48 SFP ports in a stackable design, providing extensive connectivity options for various industrial devices and
  • Layer 3 Switching: Enables advanced routing capabilities, including static and dynamic routing protocols, for efficient network traffic management and
  • Enhanced Security: Implements comprehensive security features such as Access Control Lists (ACLs), 1x authentication, and port security to protect against unauthorized access and ensure data integrity.
  • Quality of Service (QoS): Advanced QoS features prioritize critical traffic, ensuring reliable performance for latency-sensitive
  • User-Friendly Management: Offers an intuitive web interface, SNMP support, and Command Line Interface (CLI) for easy configuration, monitoring, and
Fixed PORT 48*1G SFP Port (Stackable)
6×100/1000/10000M SFP
CONSOLE PORT  1xConsole RJ45 Port + 1 USB
STACKING SWITCH  1
RESET KEY  1 x Reset Key
MASTER SLAVE POWER INDICATOR LIGHT  Support
ENVIRONMENT DETECTION  1 group of input detection of environment temperature and humidity
CPU  MIPS -34Kc dual-core 1GHz
DDR  4GB DDR3
PORT SPECIFICATION  1 – 48 ports 10/100/1000/10000SFP (X) Auto detection
TRANSMISSION MODE  Store and Forward (full wire speed)
STACKING BANDWIDTH  512Tbps
PACKET FORWARDING  900Mpps
BUFFER (6/12Mbit)  16Mbit SRAM Packet Buffer
TRANSMISSION DISTANCE  1-48 Ports:

SFP: 100M/1G single-mode, multiple-mode optical module, the maximum distance is ≤ 120km (depending on the optical module)

49-54 ports: SFP: 100M/1G/10G single-mode, multi-mode optical module, the maximum

distance is ≤ 120km (depending on the optical module)
FLASH  16GB
RAM  16GB
WATT  Standby power consumption

Network full load power consumption≤25W Full load power consumption

≤240W


LED INDICATOR

  PWR: Power LED SYS: System LED

1-48, 100M/1000M Network connector indicator 49-54: 1G/10G SFP

connection indicator

Stacking: Master LED; Slave LED; Error Led


POWER INPUT

  Built in Redundant dual power supply

AC: 100-240Vac 50-60Hz 01.2A max

100W

Supports hot swapping
OPERATING TEMPERATURE/ HUMIDITY  -10～+55°C；5%～90% RH Non coagulation
STORAGE TEMPERATURE/ HUMIDITY  -40～+75°C；5%～95% RH Non coagulation
INGRESS PROTECTION  IP30
FAN  4 sets of temperature-controlled fans
LIGHTNING PROTECTION LEVEL  6KV 8/20us;

IP30
WEIGHT  5.92kg/6.99kg
Product/Packaging  440mm*345mm*mm

CX-NA-0GSF48S60-L3 Datasheet Download

Download Now
