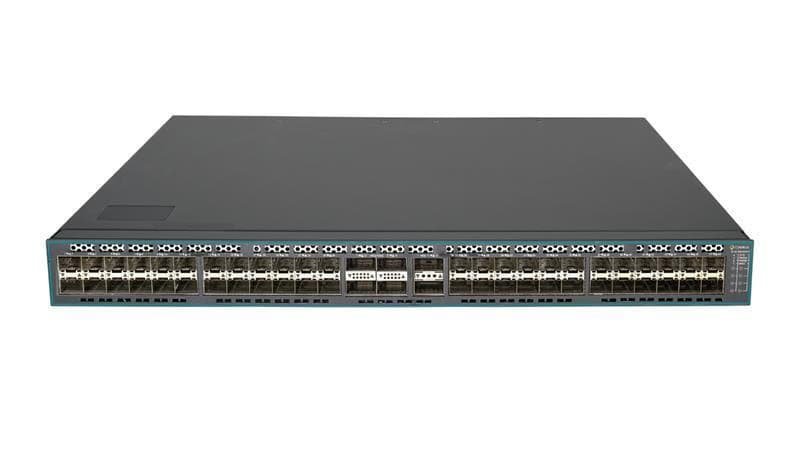

The Comxus CX-ND-0GSF48S60-L3 is a high-performance Layer 3 Managed Stackable Core Switch engineered to provide robust and scalable network solutions for demanding various environments. With its advanced features and durable design, this switch ensures optimal network performance and reliability.
| NETWORK PORT | Â 48-Port 10G/GE SFP+ 2-Port 40G QSFP+ 4-Port 100G/40G QSFP28, 1* RJ45 Console Port, 1*RJ45 Management Port, 1*USB 2.0 Port |
| RESET KEY | Â 1x Reset Key |
| ENVIRONMENT DETECTION | Â 1 Group of Input Detection of Environment Temperature and Humidity |
| CPU | Â Multi-Core |
| DDR | Â DRAM |
| PORT SPECIFICATION | Â 1-48 port 100/1000/10000SFP (X) auto detection, and 6 port 40G & 100G QSFP auto detection |
| TRANSMISSION MODE | Â Store and Forward (Full Wire Speed) |
| BANDWIDTH | Â 2.2Tbps |
| PACKET FORWARDING | Â 1440Mpps |
| BUFFER (6/12MBIT) | Â 2 GB DRAM and 6Mbits Buffer |
| TRANSMISSION DISTANCE |  SFP & QSFP: 100M/1G/10G/40G/100G Single-Mode Multi-Mode & Optical Module, The Maximum Distance Is  ≤120km (Depending on The Optical Module) |
| FLASH | Â 4GB |
| RAM | Â 2GB |
| WATT |  Standby Power Consumption Network Full Load Power Consumption≤102W Full Load Power Consumption ≤147W |
| LED INDICATOR | Â PWR: Power LED SYS: System LED 1-48:10/100/1000/10000M Network Connection Indicator 49-50:40G QSFP Connection Indicator 51-54:40G/100G QSFP Connection Indicator |
| POWER INPUT |  2*Hot-Swappable Redundant AC: 100V- 240V, 50Hz±10% |
| FAN SLOT | Â 4 (built-in) |
| OPERATING TEMPERATURE/HUMIDITY |  -30°C +60°C, 10%-90% non-condensing |
| INGRESS PROTECTION | Â IP30 |
| LIGHTNING PROTECTION LEVEL | Â 6KV |
| WEIGHT | Â 8.8kg |
| DIMENSION | Â 442x404x44 |
