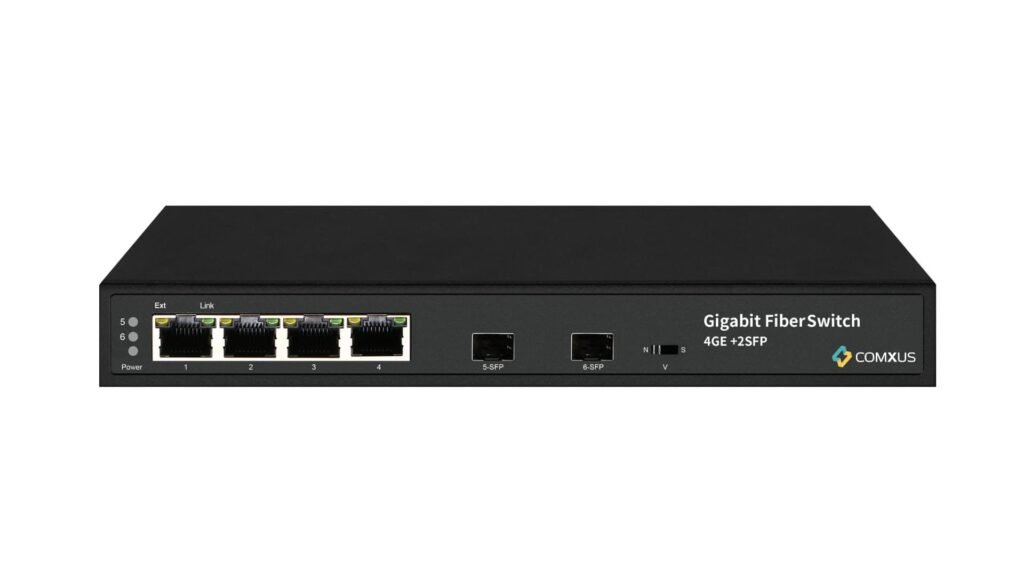

04 Port Unmanaged Network With 2 SFP Port

CX-NG-4GS2D

  • IEEE 802.3at/af/bt Compliance
  • 1GbE Downlink Ports
  • 1GbE SFP Slots
  • Power over Ethernet (PoE)
  • High Availability

Certifications:

CE

The Comxus CX-NG-4GS2D is network switch designed to deliver robust and reliable network performance.

Featuring 1GbE ports and supporting 1GbE uplinks, this switch is engineered for industrial environments where high durability and performance are critical.

The CX-NA-4GS2D provides efficient power distribution to connected devices while ensuring seamless data transmission, making it an ideal choice for demanding industrial applications.

  • IEEE 802.3at/af/bt Compliance: Supports IEEE 802.3at/af/bt PoE standards, providing efficient power delivery to connected devices.
  • 1GbE Downlink Ports: Equipped with multiple Gigabit downlink ports for high-speed network connectivity.
  • 1GbE: Offers reliable Gigabit uplink ports for seamless data transmission to higher-level network infrastructures.
  • 1GbE SFP Slots: Includes Gigabit SFP slots for flexible fiber optic connectivity options.
  • Power over Ethernet (PoE): Provides efficient power distribution to connected devices, reducing the need for separate power supplies.
  • High Availability: Designed for high availability to minimize downtime and ensure continuous network operation.
  • Scalability: Supports high scalability to accommodate growing network demands and expanding industrial setups

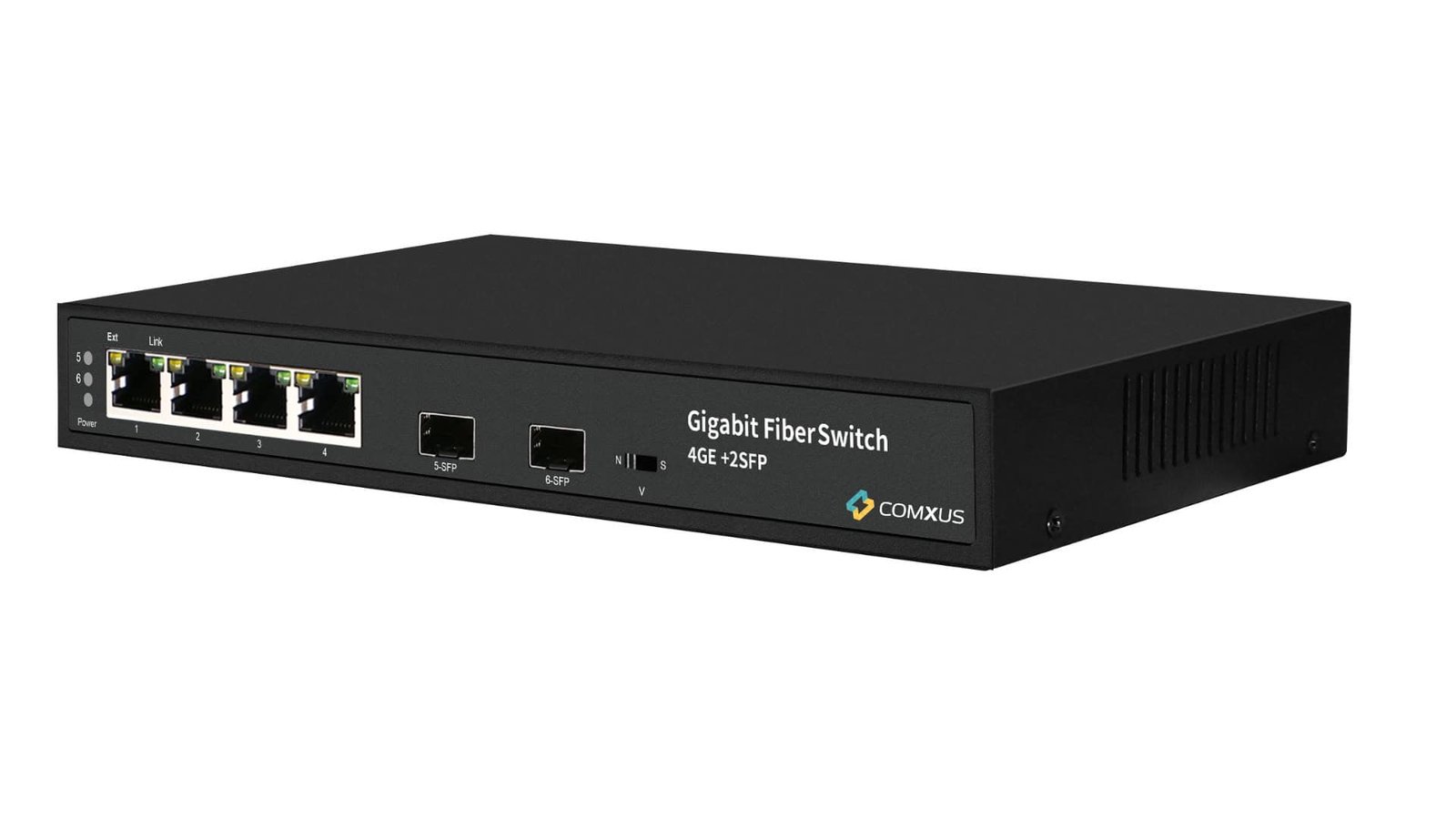

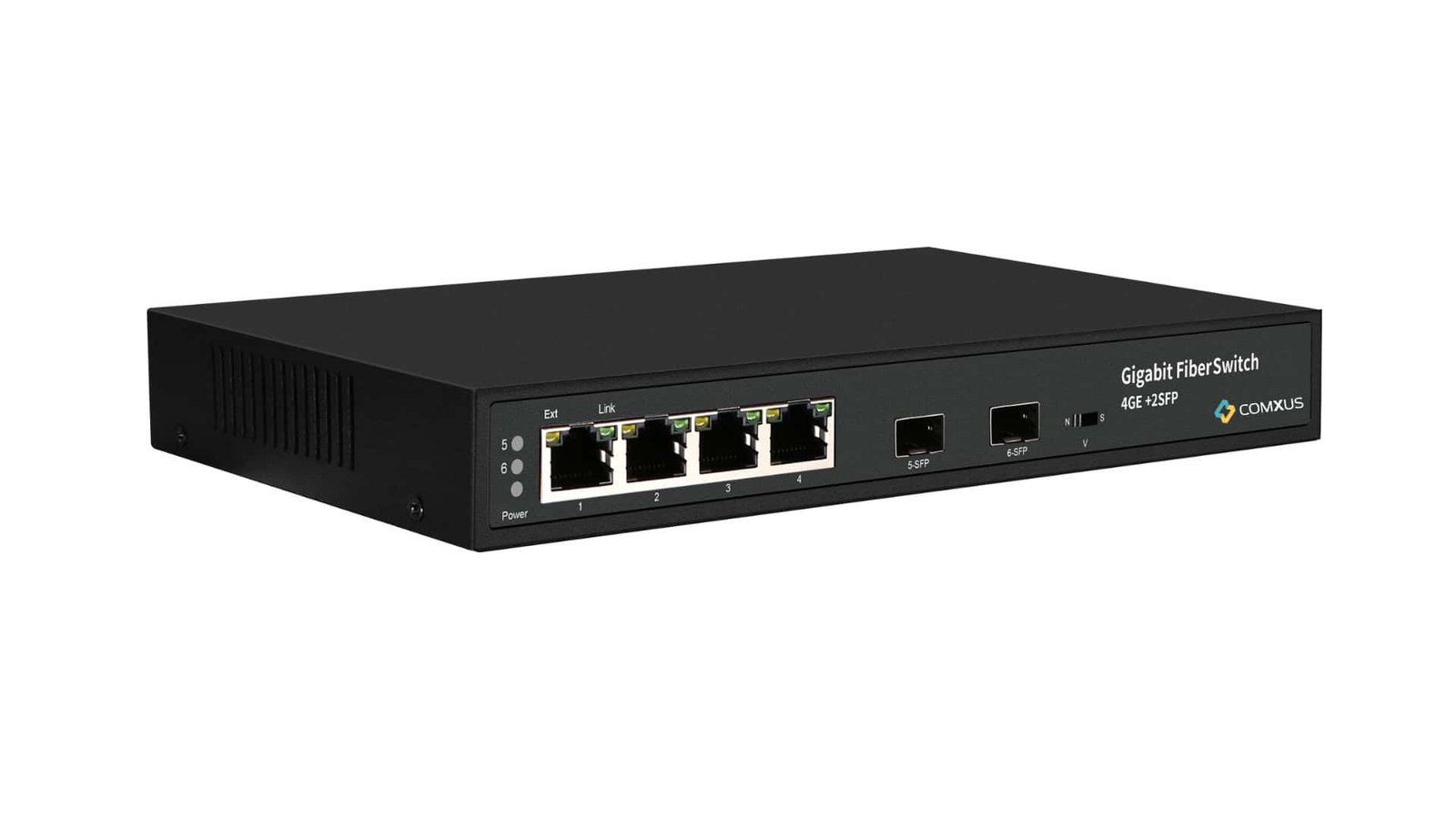

NETWORK PORT 4×10/100/1000Mbps 1000Base-TX RJ45 Ports 2×1G SFP Ports
ENVIRONMENT DETECTION 1 group of input detection of environment temperature and humidity
PORT SPECIFICATION 1-4 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X
TRANSMISSION MODE Store and Forward (full wire speed)
BANDWIDTH 12Gbps
PACKET FORWARDING 8.93Mpps
BUFFER 2.5M




TRANSMISSION DISTANCE

10BASE-T : Cat3,4,5 UTP(≤250 meter)

100BASE-TX : Cat5 or later UTP(150 meter) 1000BASE-TX : Cat6 or later UTP(150 meter)

SFP: 1000M single and multimode optical module with maximum distance ≤ 120km (depending on the optical module)

FLASH 2GB
RAM 6GB
WATT Standby power consumption≤5W;

Network Full-load power consumption≤10W;



LED INDICATOR

P: Power LED

Port:(Orange=1G SPEED LED, Green=LAN Link LED)

V:(Port isolation LED) S:( Super mode LED)

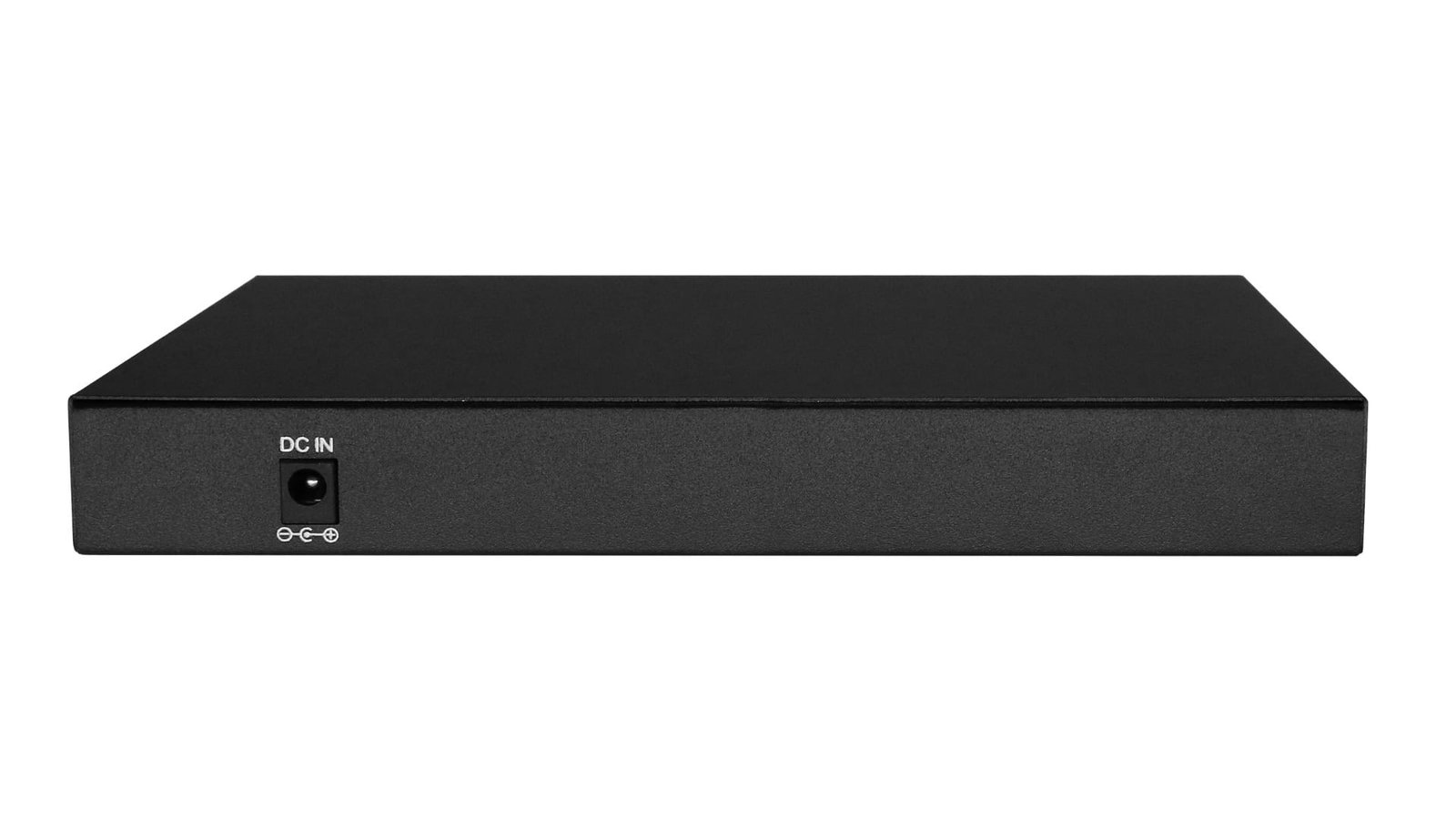

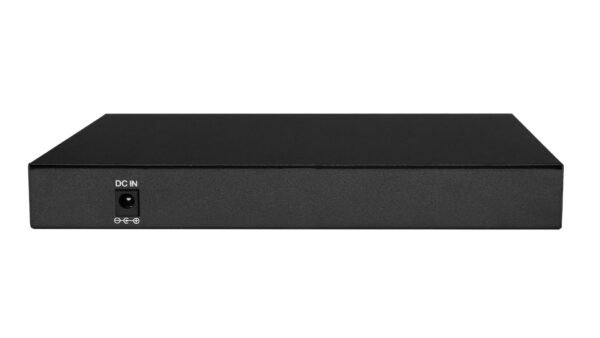

POWER INPUT Adapter DC:12V 1A

MAX 6W (100-240Vac 50/60Hz 0.2A)

OPERATING TEMPERATURE/HUMIDITY -30 °C ~ +75°C 5% 95% RH No coagulation
INGRESS PROTECTION IP30
LIGHTNING PROTECTION LEVEL 6KV 8/20us
WEIGHT 0.4kg/0.8kg
DIMENSION 208mm*81mm*28mm

265mm*220mm*68mm

CX-NG-4GS2D Datasheet Download
