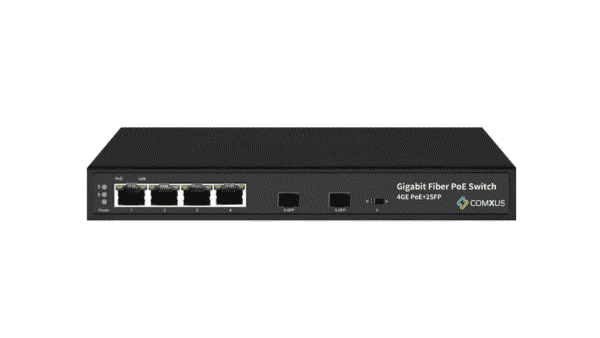

Comxus 4 port network poe switch front view

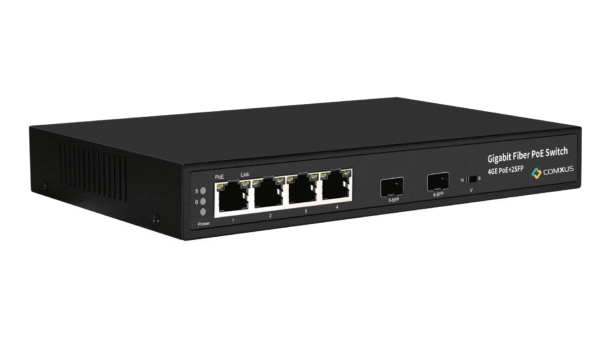

Comxus 4 port network poe switch side view

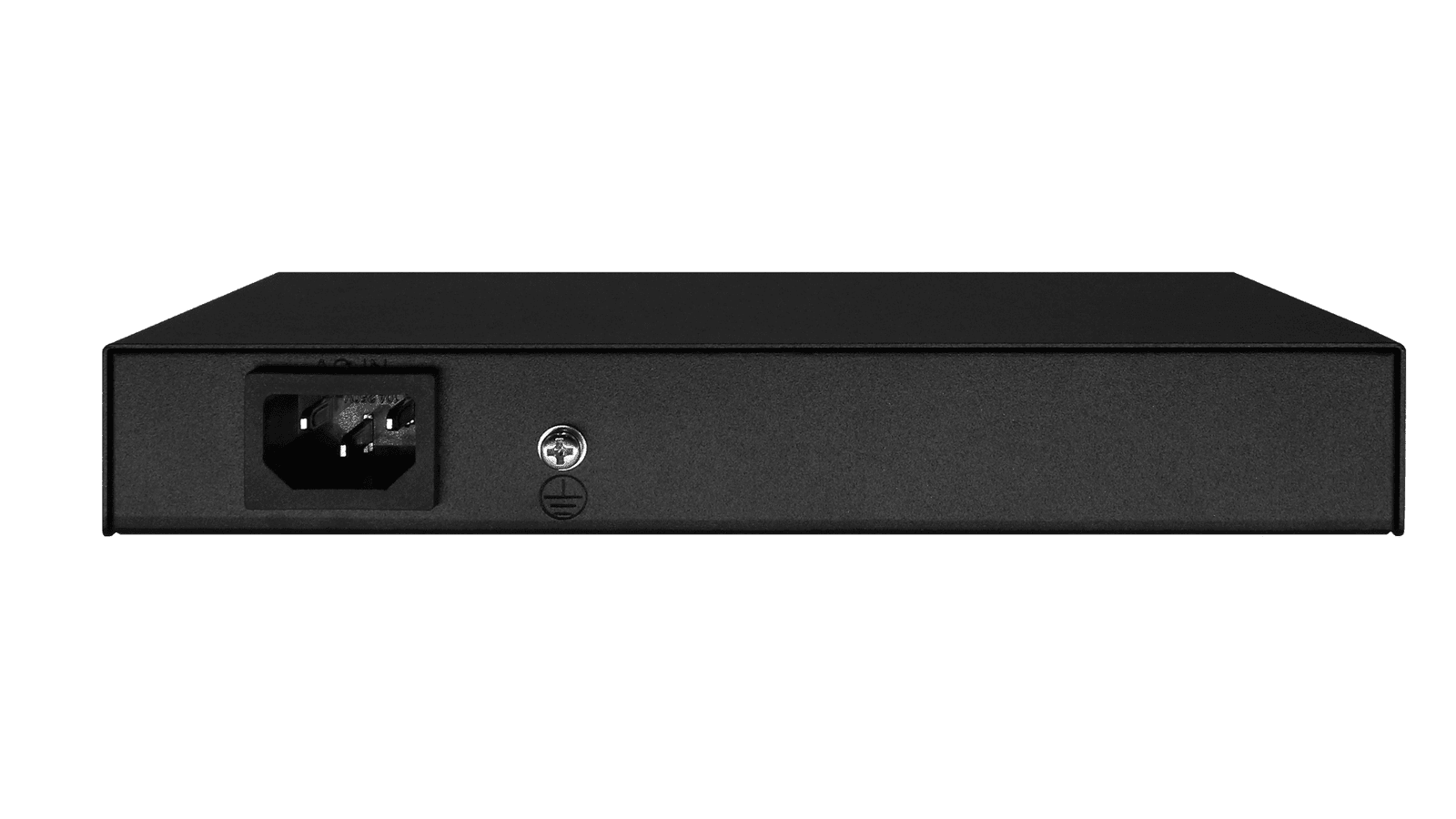

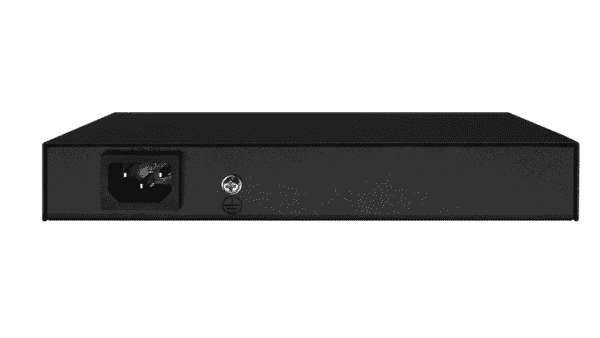

Comxus 4 port network poe switch back view

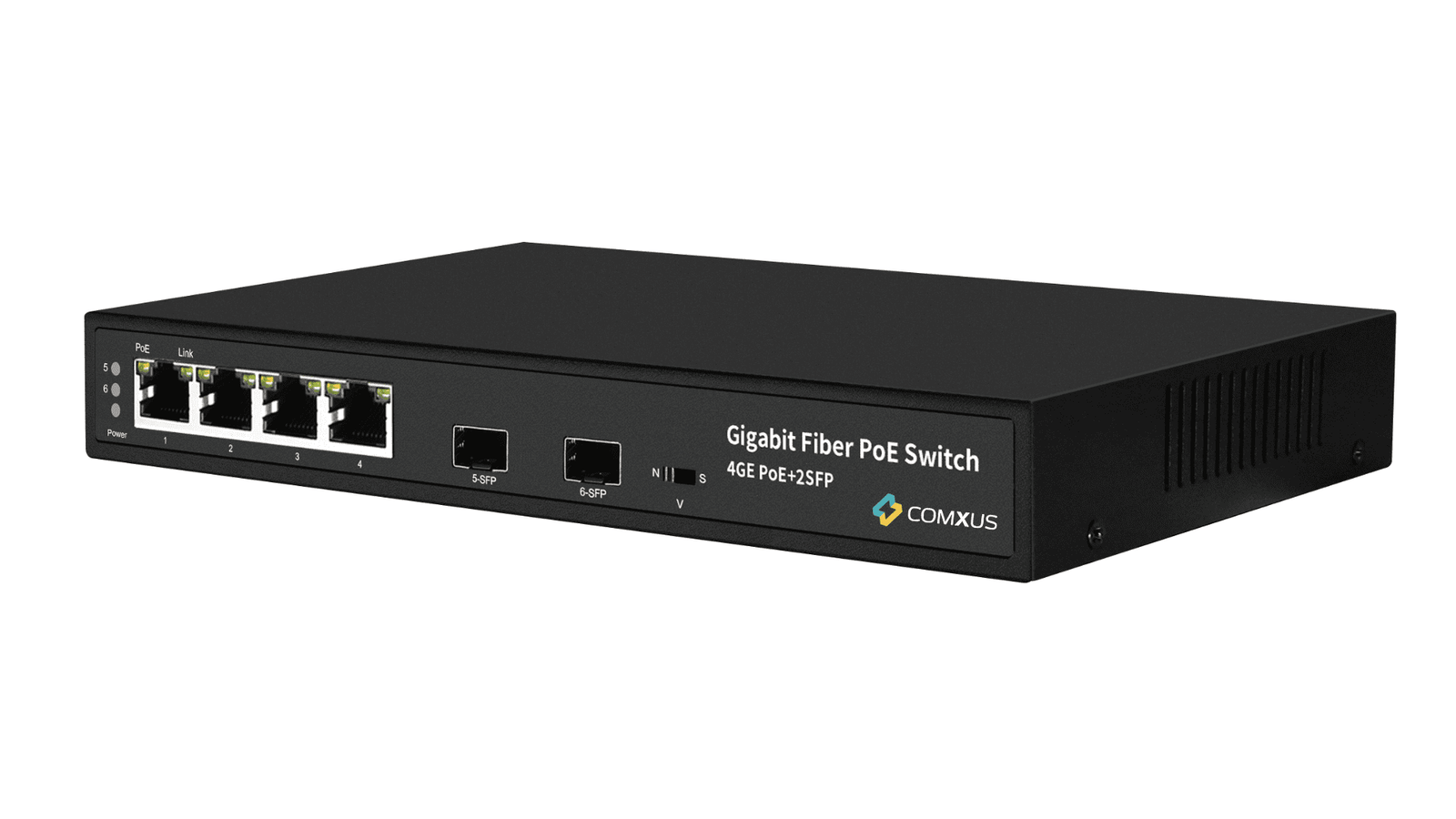

Comxus 4 port network poe switch side view

04 PORT uNMANAGED NETWORK POE SWITCH WITH 2G Upink SFP

CX-NPG-4GS2D

  • IEEE 802.3at/af/bt Compliance
  • 1GbE Downlink Ports
  • 1GbE SFP Slots
  • Power over Ethernet (PoE)
  • High Availability
Get A Quote

Certifications:

CE

The Comxus CX-NPG-4GS2D is network Power over Ethernet (PoE) switch designed to deliver robust and reliable network performance. Featuring 1GbE ports and supporting 1GbE uplinks, this switch is engineered for industrial environments where high durability and performance are critical. The CX-NPG-4GS2D provides efficient power distribution to connected devices while ensuring seamless data transmission, making it an ideal choice for demanding industrial applications.

  • IEEE 802.3at/af/bt Compliance: Supports IEEE 802.3at/af/bt PoE standards, providing efficient power delivery to connected devices.
  • 1GbE Downlink Ports: Equipped with multiple Gigabit downlink ports for high-speed network connectivity.
  • 1GbE: Offers reliable Gigabit uplink ports for seamless data transmission to higher-level network infrastructures.
  • 1GbE SFP Slots: Includes Gigabit SFP slots for flexible fiber optic connectivity options.
  • Power over Ethernet (PoE): Provides efficient power distribution to connected devices, reducing the need for separate power supplies.
  • High Availability: Designed for high availability to minimize downtime and ensure continuous network operation.
  • Scalability: Supports high scalability to accommodate growing network demands and expanding industrial setups
NETWORK PORT  4×10/100/1000Mbps 1000Base-TX RJ45 PoE Ports

Port 1 support 24V/48V PoE (single port power MAX 90W)

Port 2~4 support PoE (single port power MAX 30W)

2×1G SFP Ports
ENVIRONMENT DETECTION  1 group of input detection of environment temperature and humidity
PORT SPECIFICATION  1-4 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X
TRANSMISSION MODE  Store and Forward (full wire speed)
BANDWIDTH  12Gbps
PACKET FORWARDING  8.93Mpps
BUFFER  2.5M
TRANSMISSION DISTANCE  10BASE-T ： Cat3,4,5 UTP(≤250 meter)

100BASE-TX ： Cat5 or later UTP(150 meter)

1000BASE-TX ： Cat6 or later UTP(150 meter)

SFP: 1000M single and multimode optical module with maximum distance ≤ 120km (depending on the

optical module)
FLASH  2GB
RAM  6GB
 WATT  Standby power consumption≤5W;

Network Full-load power consumption≤10W;
LED INDICATOR  P: Power LED(over-power LED)

Port:(Orange=PoE LED, Green=LAN Link LED）

V:(Port isolation LED)

S:( Super mode LED)
POWER INPUT  Built-in power AC：100-240

Vac 50-60Hz 0.9A

Max 68W
OPERATING TEMPERATURE/HUMIDITY  -30 °C ~ + 60°C 5% 95% RH No coagulation
INGRESS PROTECTION  IP30
LIGHTNING PROTECTION LEVEL  6KV 8/20us
WEIGHT  0.8kg/1.1kg
DIMENSION  210mm*150mm*35mm

265mm*220mm*68mm
