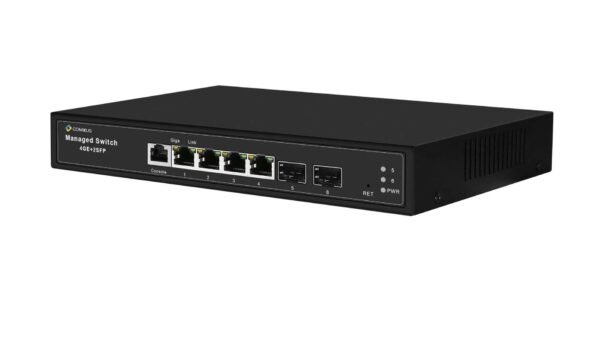

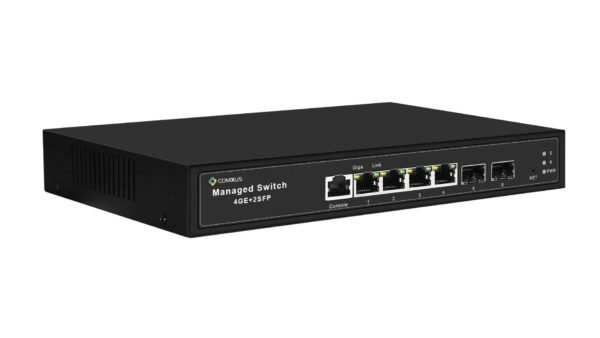

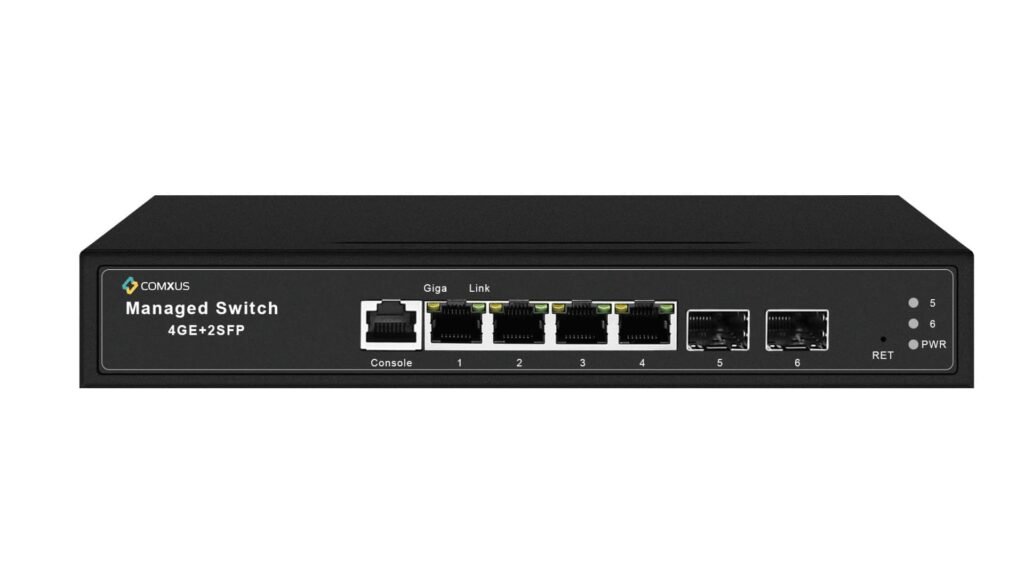

04 Port Network Managed Switch With 2G Upink SFP

CX-NA-4GS2D-L2

  • IEEE 802.3at Compliance
  • 1GbE Downlink Ports
  • 1GbE SFP Slots
  • Layer 2 Switching
  • Web-Based Management

Certifications:

CE

The Comxus CX-NA-4GS2D-L2 is designed to deliver robust and reliable network performance. Featuring 1GbE ports and supporting 1GbEuplinks, this switch is engineered for industrial environments where high durability and performance are critical. The CX-NA-4GS2D- L2 provides efficient power distribution to connected devices while ensuring seamless data transmission, making it an ideal choice
for demanding industrial applications.

  • IEEE 802.3at Compliance: Supports IEEE 802.3at standards, providing efficient power delivery to connected devices.
  • 1GbE Downlink Ports: Equipped with multiple Gigabit downlink ports for high-speed network connectivity.
  •  1GbE: Offers reliable Gigabit uplink ports for seamless data transmission to higher-level network infrastructures.
  • 1GbE SFP Slots: Includes Gigabit SFP slots for flexible fiber optic connectivity options.
  • Layer 2 Switching: Operates at Layer 2 of the OSI model, ensuring efficient data packet forwarding and network management.
  • Web-Based Management: Features a web management interface for easy configuration and monitoring of network settings and performance.
  • High Availability: Designed for high availability to minimize downtime and ensure continuous network operation.
  • Scalability: Supports high scalability to accommodate growing network demands and expanding industrial setups.
NETWORK PORT  4×10/100/1000Mbps 1000 Base-TX RJ45 Ports

2×1G SFP Ports

1x Console RJ45 Port

ENVIRONMENT DETECTION  1 group of input detection of environment temperature and humidity
PORT SPECIFICATION  1-4 port 10/100/1000BaseT(X)auto detection, AUTO- MDI/MDI-X
TRANSMISSION MODE  Store and Forward (full wire speed)
BANDWIDTH  20 Gbps
PACKET FORWARDING  14.88Mpps
BUFFER  4.1M
TRANSMISSION DISTANCE  10BASE-T. Cat3,4,5 UTP (≤250 meter)

100BASE-TX. Cat5 or later UTP (150 meter)

1000BASE-TX. Cat6 or later UTP (150 meter)

SFP: 1000M single and multimode optical module with

maximum distance ≤ 120km (depending on the optical module)

FLASH   2GB
RAM   6GB
WATT  Standby power consumption≤5W;

Network Full-load power

consumption≤10W;

LED INDICATOR  PWR: Power LED

SYS: System LED

5-6: SFP connection indicator

Port: Orange=1G LED, Green=LAN Link

LED

POWER INPUT  Built-in power AC.100-240Vac 50-60Hz 0.3A max 10W
OPERATING TEMPERATURE/HUMIDITY  -30 °C ~ +60°C 5% 95% RH No coagulation
INGRESS PROTECTION  IP30
LIGHTNING PROTECTION LEVEL  6KV 8/20us8KV ESD IP40
WEIGHT  0.7kg/1.0kg
DIMENSION  225mm*127mm*35mm

265mm*220mm*68mm
