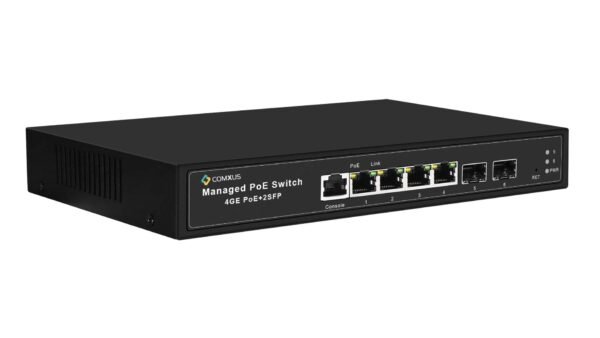

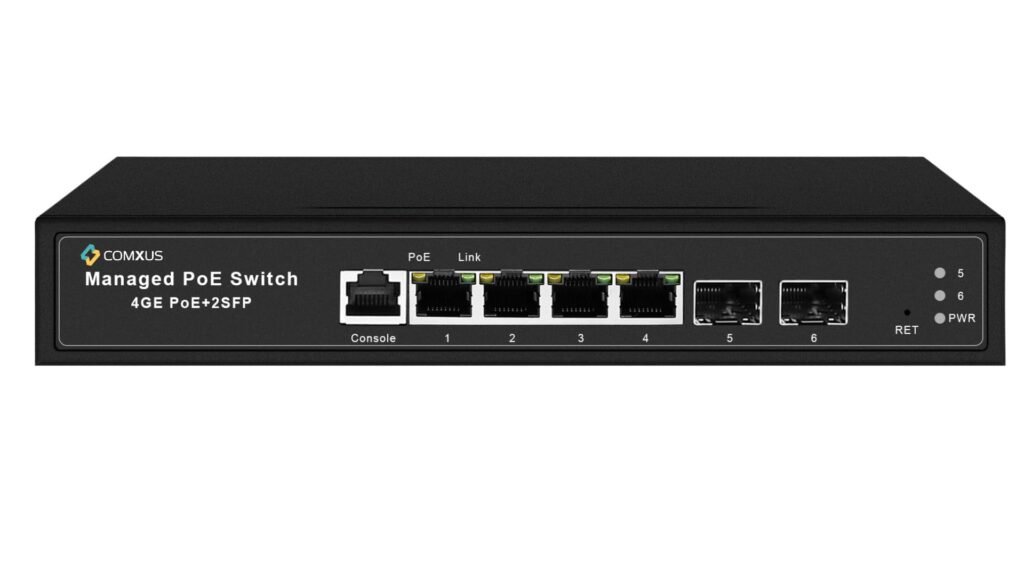

04 PORT NETWORK MANAGED POE SWITCH WITH 2G Upink SFP

CX-NPA-4GS2D-L2

  • IEEE 802.3at/af Compliance
  • 1GbE Downlink Ports
  • 1GbE SFP Slots
  • Layer 2 Switching
  • Power over Ethernet (PoE)
  • Web-Based Management

Certifications:

CE

The Comxus CX-NPA-4GS2D-L2 is network Power over Ethernet (PoE) switch designed to deliver robust and reliable network performance.
Featuring 1GbE ports and supporting 1GbE uplinks, this switch is engineered for industrial environments where high durability and
performance are critical. The CX-NPA-4GS2D-L2 provides efficient power distribution to connected devices while ensuring
seamless data transmission, making it an ideal choice for demanding industrial applications.

  • IEEE 802.3at/af Compliance: Supports IEEE 802.3at/af PoE standards, providing efficient power delivery to connected devices.
  • 1GbE Downlink Ports: Equipped with multiple Gigabit downlink ports for high-speed network connectivity.
  • 1GbE: Offers reliable Gigabit uplink ports for seamless data transmission to higher-level network infrastructures.
  • 1GbE SFP Slots: Includes Gigabit SFP slots for flexible fiber optic connectivity options.
  • Layer 2 Switching: Operates at Layer 2 of the OSI model, ensuring efficient data packet forwarding and network management.
  • Power over Ethernet (PoE): Provides efficient power distribution to connected devices, reducing the need for separate power supplies.
  • Web-Based Management: Features a web management interface for easy configuration and monitoring of network settings and performance.
NETWORK PORT  4×10/100/1000Mbps 1000 Base-TX RJ45 PoE Ports

Port 1~4 support PoE (single port power MAX 30W)

2×1G SFP Ports

1x Console RJ45 Port

ENVIRONMENT DETECTION  1 group of input detection of environment temperature and humidity
PORT SPECIFICATION  1-4 port 10/100/1000BaseT(X) auto detection, AUTO-MDI/MDI-X
TRANSMISSION MODE  Store and Forward (full wire speed)
BANDWIDTH  56 Gbps
PACKET FORWARDING  41.67Mpps
BUFFER  4.1M
TRANSMISSION DISTANCE  10BASE-T . Cat3,4,5 UTP(≤250 meter)

100BASE-TX . Cat5 or later UTP(150 meter) 1000BASE-

TX . Cat6 or later UTP(150 meter)

SFP: 1000M single and multimode optical module with maximum distance ≤ 120km (depending on the optical module)

FLASH  2GB
RAM  6GB
WATT  Standby power consumption≤5W;

Network Full-load power consumption≤10W;

LED INDICATOR  POWER: Power LED

SYS: System LED

Uplink:(10/100M=Green Link

1000M=Orange Link)

Downlink:(10/100M=Green Link

1000M=Orange Link)

POWER INPUT  Built-in power AC:100-240Vac

50-60Hz 1A

Max 80W

OPERATING TEMPERATURE/HUMIDITY  -30 °C ~ + 60°C 5% 95% RH No coagulation
INGRESS PROTECTION  IP30
LIGHTNING PROTECTION LEVEL  6KV 8/20us8KV ESD IP40
WEIGHT  0.6kg/1.4kg
DIMENSION  225mm*105mm*35mm

265mm*220mm*68mm
