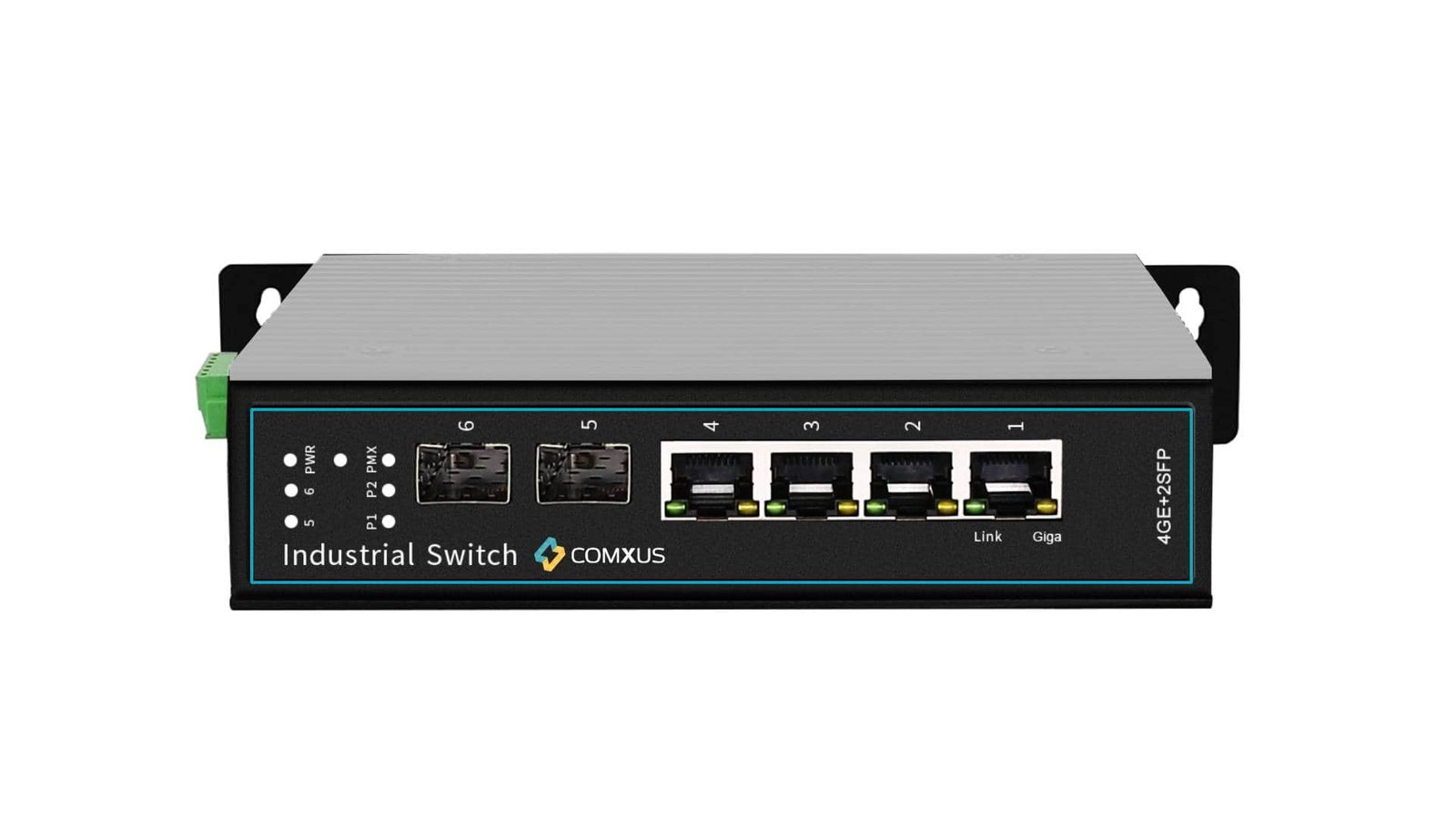

CX-NA-4GS2I-L2

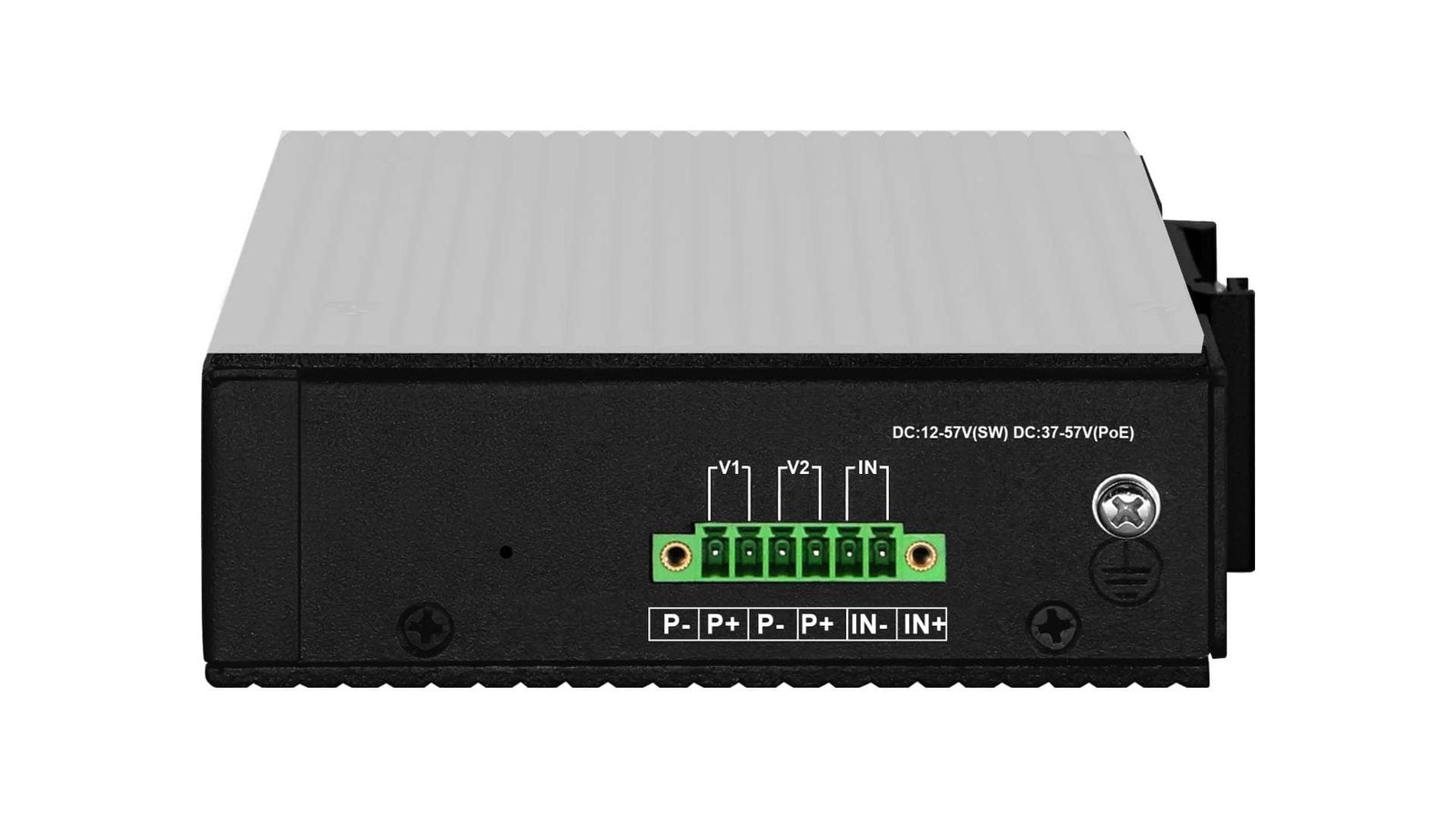

CX-NA-4GS2I-L2 side power port

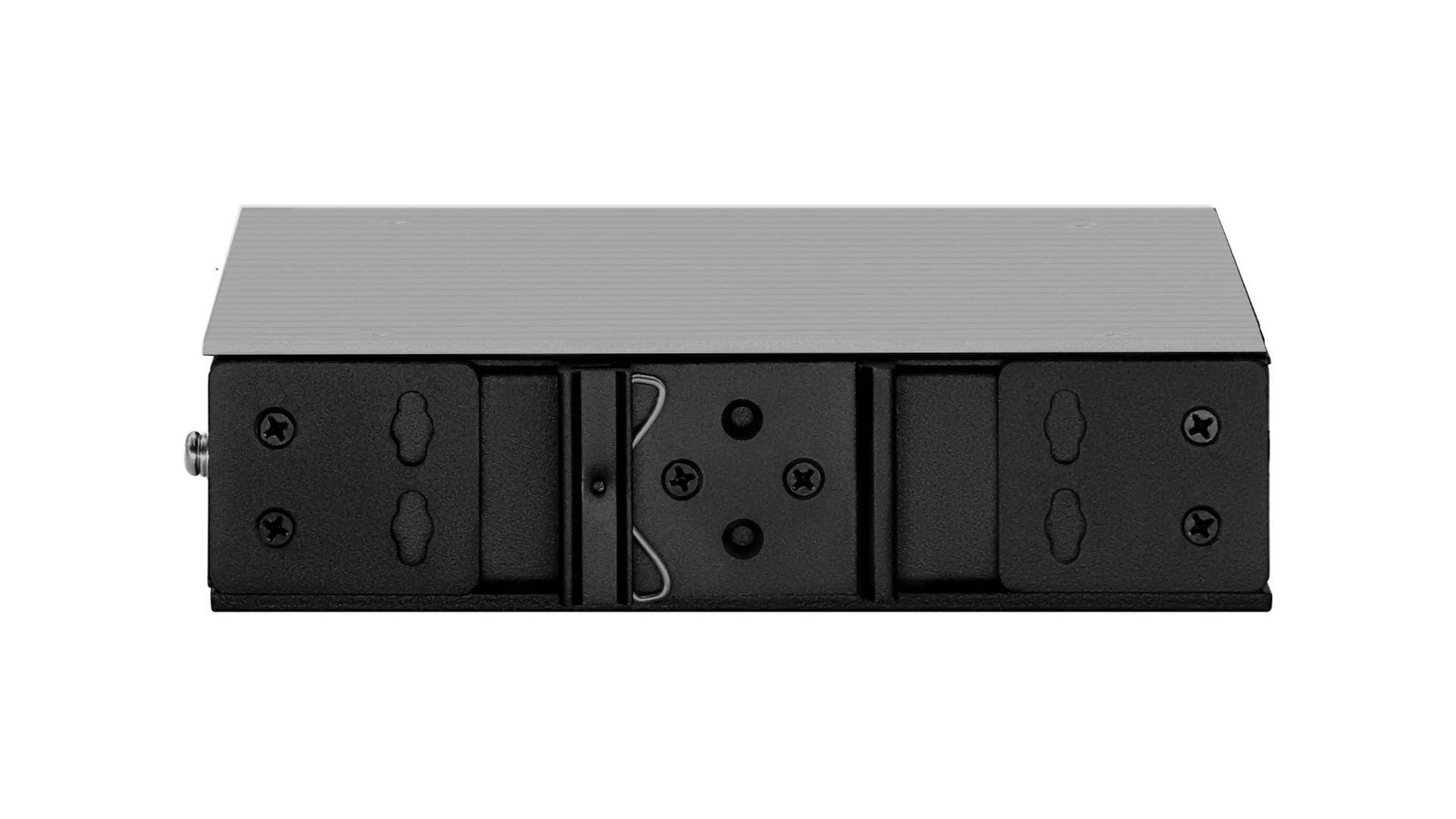

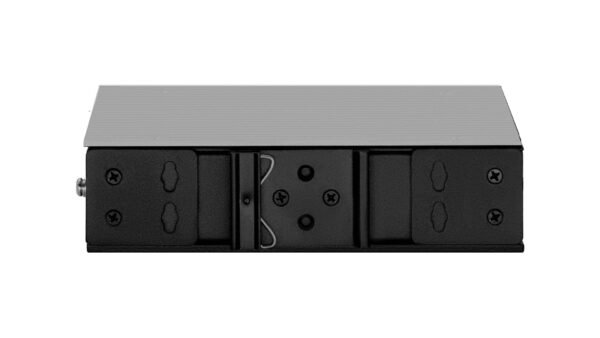

CX-NA-4GS2I-L2 back image

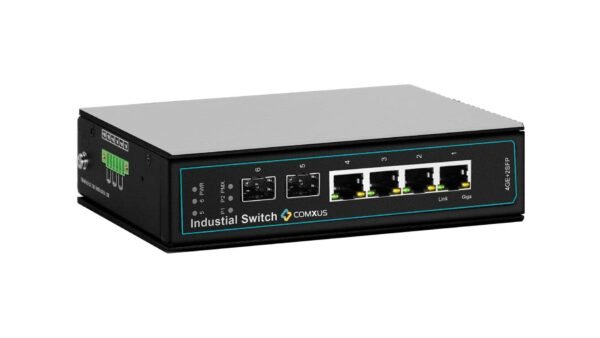

CX-NA-4GS2I-L2 side view

04 Port Network Industrial Managed Switch With 2 SFP Port

CX-NA-4GS2I-L2

  • Built to withstand harsh industrial environments
  • Ensuring reliable performance under extreme conditions.
  • 1GbE Downlink Ports
  • 1GbE SFP Slots
  • Layer 2 Switching
  • Web-Based Management
  • High Availability
Get A Quote

Certifications:

CE

The CX-NA-4GS2I-L2 is an industrial-grade switch designed to deliver robust and reliable network performance. Featuring 1GbE ports and supporting 1GbE uplinks, this switch is engineered for industrial environments where high durability and performance are critical. The CX-NA-4GS2I-L2 provides efficient power distribution to connected devices while ensuring seamless data transmission, making it an ideal choice for demanding industrial applications.

  • Industrial-Grade Design: Built to withstand harsh industrial environments, ensuring reliable performance under extreme conditions.
  • 1GbE Downlink Ports: Equipped with multiple Gigabit downlink ports for high-speed network connectivity.
  • 1GbE: Offers reliable Gigabit uplink ports for seamless data transmission to higher-level network infrastructures.
  • 1GbE SFP Slots: Includes Gigabit SFP slots for flexible fiber optic connectivity options.
  • Layer 2 Switching: Operates at Layer 2 of the OSI model, ensuring efficient data packet forwarding and network management.
  • Web-Based Management: Features a web management interface for easy configuration and monitoring of network settings and performance.
  • High Availability: Designed for high availability to minimize downtime and ensure continuous network operation.
    Scalability: Supports high scalability to accommodate growing network demands and expanding industrial setups.
NETWORK PORT 4×10/100/1000Mbps 1000Base-TX RJ45 Ports

2×1G SFP Ports

1x Console RJ45 Port
ENVIRONMENT DETECTION 1 group of input detection of environment temperature and humidity
PORT SPECIFICATION 1-4 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X
TRANSMISSION MODE Store and Forward (full wire speed)
BANDWIDTH 20 Gbps
PACKET FORWARDING 14.88Mpps
BUFFER 4.1M
TRANSMISSION DISTANCE 10BASE-T : Cat3,4,5 UTP(≤250 meter)
100BASE-TX : Cat5 or later UTP(≤100 meter)1000BASE-TX : Cat6 or later UTP(≤1000 meter)1000BASE-SX :62.5μm/50μm MMF(2m~550m)
1000BASE-LX :62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)
BIDI supported
FLASH 16M
RAM 128M
WATT Standby power consumption≤5W;
Network Full-load power consumption≤10W;
LED INDICATOR Port: 1-4 LINK LED
Port: 1-4 1G Speed
LED Port:5-6 SFP LED
V1: DC 1 IN: V2: DC 2 IN PW: POWER+SYS LED
POWER INPUT 2 groups DC POWER in
Support reverse polarity protection Without Poe DC-12-57V MAX 10W
OPERATING TEMPERATURE/HUMIDITY -40 +85°C 10% 90% RH No coagulation
INGRESS PROTECTION IP40
LIGHTNING PROTECTION LEVEL 6KV 8/20us8KV ESD IP40
WEIGHT 0.82/1.1kg
DIMENSION 157mm*115mm*40mm 310mm*210mm*60mm
