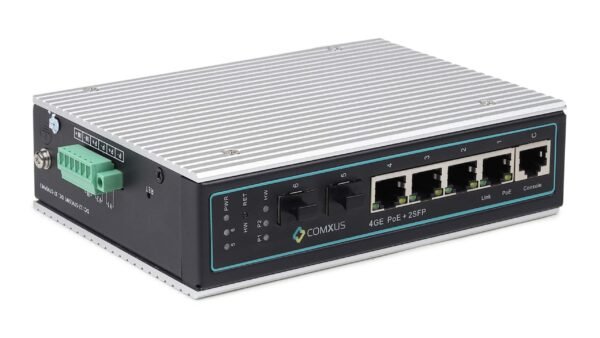

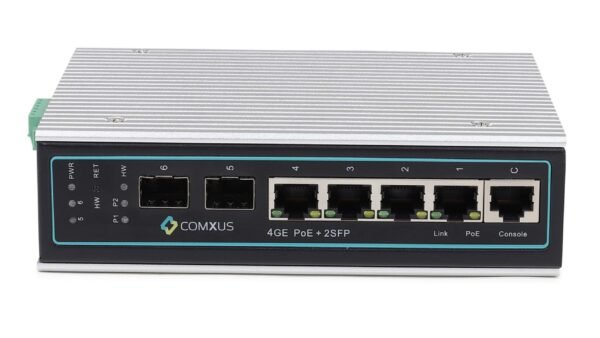

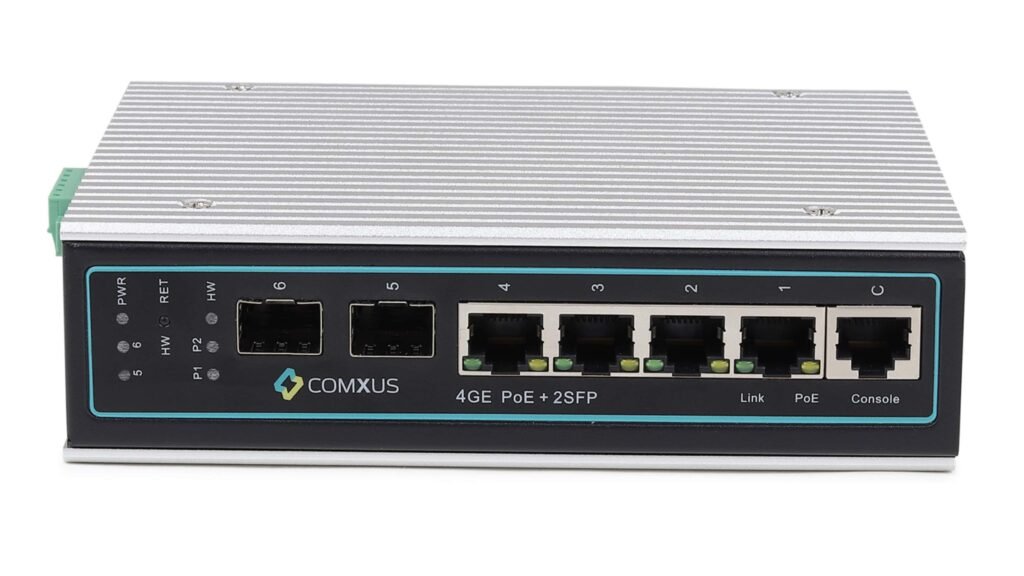

4 Port poe switch comxus front
4 Port poe switch comxus side image

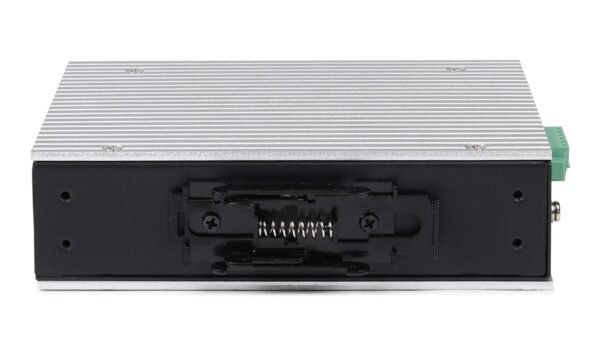

4 Port poe switch comxus back
4 Port poe switch comxus front

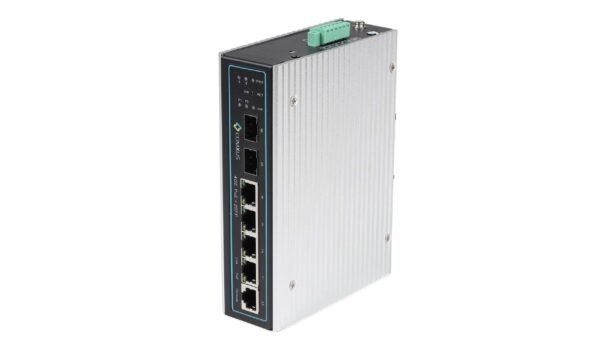

4 Port poe switch comxus tower

04 Port Managed Industrial-Grade PoE Switch With 2 Giga Uplink SFP​

CX-NPA-4GS2I-L2

  • Built to withstand harsh industrial environments.
  • Ensuring reliable performance under extreme conditions.
  • Supports IEEE 802.3at/af/bt PoE standards, providing efficient power delivery to connected devices.
  • Equipped with multiple Gigabit downlink ports for high-speed network connectivity.
  • Offers reliable Gigabit uplink ports for seamless data transmission to higher-level network infrastructures.
  • Includes Gigabit SFP slots for flexible fiber optic connectivity options.
  • Operates at Layer 2 of the OSI model, ensuring efficient data packet forwarding and network management.
  • Features a web management interface for easy configuration and monitoring of network settings and performance.
  • Provides efficient power distribution to connected devices, reducing the need for separate power supplies.

Get A Quote

Certifications:

CE
Comxus CX-NPA-4GS2I-L2 is a next-generation, rugged, industrial-grade PoE switch. It is designed to deliver both power and data connectivity through a single Ethernet cable. This compact, managed switch features 4 PoE-enabled Ethernet ports and 2 SFP uplinks. The PoE ports allow you to connect networking devices such as CCTV cameras and industrial controllers, while the SFP ports enable seamless network expansion. Its compact design makes it an ideal solution for environments where space is limited. Built for harsh industrial conditions, Comxus switches are known for their rugged and reliable performance. They are engineered to withstand extreme temperatures, vibrations, dust, and electrical interference. Our 4-port industrial-grade switches operate efficiently in temperatures ranging from -40°C to +85°C, making them an ideal choice for oil & gas, manufacturing, transportation, and industrial automation sectors.

Why Choose a Managed Industrial PoE Switch?​

A managed PoE switch offers significant benefits over an unmanaged one—especially in mission-critical industrial applications. With Layer 2+ management features, you can:
  • Prioritize traffic using Quality of Service (QoS)
  • Improve security with VLAN segmentation
  • Monitor port status and power consumption in real time
  • Schedule PoE power delivery based on operational hours
  • Detect network loops and optimize traffic with Spanning Tree Protocol (STP)
These advanced features empower industrial IT teams to fine-tune network performance, enhance security, and reduce downtime.
NETWORK PORT  4×10/100/1000Mbps 1000Base-TX RJ45 PoE Ports

Port 1 support 24V/48V PoE (single port

power MAX 60W)

Port 2~4 support BT PoE (single port

power MAX 30W)

2X1G SFP Ports

1x Console RJ45 Port
ENVIRONMENT DETECTION  1 group of input detection of environment temperature and humidity
PORT SPECIFICATION  1-4 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X
TRANSMISSION MODE  Store and Forward (full wire speed)
BANDWIDTH  56Gbps
PACKET FORWARDING  14.44Mpps
BUFFER  4.1M
TRANSMISSION DISTANCE  10BASE- T: Cat3,4,5 UTP (≤250 meter)

100BASE -TX: Cat5 or later UTP (≤100 meter)

1000BASE- TX: Cat6 or later UTP (≤1000 meter)

1000BASE-SX:62.5μm/50μm MMF(2m~550m)

1000BASE-LX: 62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

BIDI supported
FLASH  2GB
RAM  6GB
WATT  Standby power consumption≤5W;

Network Full-load power

consumption≤10W;Full load

power consumption≤250
LED INDICATOR  5 6:(SFP LED)

Port 1-4(Green=LINK LED Orange=POE LED PWR:(Power/system LED)

P1:(Master power LED)

P2:(Slave power LED)

HW:(Ring network ON LED)
POWER INPUT  2 group of independent power input SW:

DC12-57V

PoE: DC37-57V
OPERATING TEMPERATURE/HUMIDITY  -30°C ~ +85°C 5% 95% RH No coagulation
INGRESS PROTECTION  IP40
Alarm  In/ Out (Optional)
LIGHTNING PROTECTION LEVEL  6KV 8/20us8KV ESD IP40
WEIGHT  0.82/1.1kg
DIMENSION  157mm*115mm*40mm

310mm*210mm*60mm
