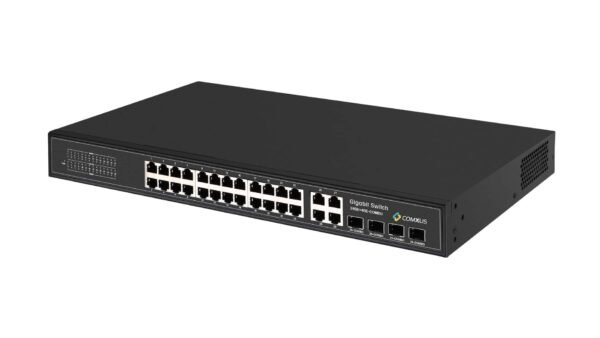

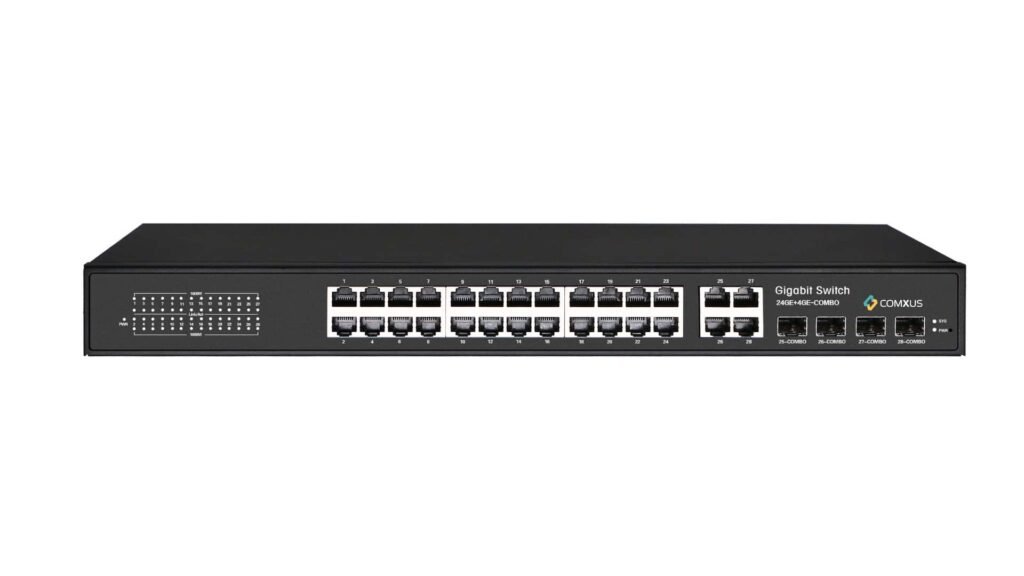

The 24 Port Unmanaged Network Switch with 4G Uplink SFP, also known as the Comxus CX-NG-24GS4D. It is designed to deliver robust, reliable and high-speed network performance. Also, it is built for demanding industrial environments. This switch ensures durability, seamless connectivity and efficient data handling. These features make it a trusted solution for businesses that require uninterrupted network operations.
Whether used in manufacturing, energy, transportation, or large-scale automation, this switch provides the scalability and stability needed to meet modern networking demands.
1. High-Performance Connectivity: Equipped with 24 Gigabit Ethernet downlink ports, this switch ensures reliable and fast data transfer between connected devices.
2. Flexible Fibre Connectivity: The 4 Gigabit SFP uplink slots provide flexible fibre optic connections, enabling long-distance communication and seamless integration with higher-level network infrastructures.
3. IEEE 802.3at Support: Delivers efficient Power over Ethernet (PoE) to connected devices such as IP cameras, wireless access points and industrial controllers, reducing the need for separate power supplies.
4. Industrial-Grade Reliability: Built for harsh environments, the CX-NG-24GS4D withstands temperature fluctuations, dust and vibrations, ensuring consistent performance in mission-critical operations.
5. High Availability: Engineered for continuous uptime, this unmanaged switch minimises downtime and supports smooth industrial operations.
6. Scalable Network Expansion: With its unmanaged design and multiple port capacity, this switch is ideal for businesses looking for simple scalability without complex configurations.
The 24 Port Unmanaged Network Switch with 4G Uplink SFP is a plug-and-play solution that combines reliability, scalability and performance. It’s perfect for businesses seeking an affordable, low-maintenance and durable switch to support growing industrial or enterprise networks.
| NETWORK PORT | 24×10/100/1000Mbps 1000Base-T RJ45 Ports
4×1G SFP/ RJ45 (Combo) Ports |
| ENVIRONMENT DETECTION | 1 group of input detection of environment temperature and humidity |
| PORT SPECIFICATION | 1-24 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X |
| TRANSMISSION MODE | Store and Forward (full wire speed) |
| BANDWIDTH | 56Gbps |
| PACKET FORWARDING | 41.67Mpps |
| BUFFER | 4.1M |
| TRANSMISSION DISTANCE | 10BASE-T ： Cat3,4,5 UTP(≤250 meter)
100BASE-TX ： Cat5 or later UTP(150 meter) 1000BASE-TX ： Cat6 or later UTP(150 meter) SFP: 1000M single and multimode optical module with maximum distance ≤ 120km (depending on the optical module) |
| FLASH | 4GB |
| RAM | 8GB |
| WATT | Standby power consumption≤5W;
Network Full-load power consumption≤10W; |
| LED INDICATOR | PWR: Power LED (green)
1-24:10/100、1000M Network connection indicator(green) 25-28:10/100、1000M Network connection indicator(green) |
| POWER INPUT | Built-in power AC：100-240Vac
50-60Hz 0.4A Max 25W |
| OPERATING TEMPERATURE/HUMIDITY | -30 °C ~ + 60°C 5% 95% RH No coagulation |
| INGRESS PROTECTION | IP30 |
| LIGHTNING PROTECTION LEVEL | 6KV 8/20us |
| WEIGHT | 2.26kg/2.89kg |
| DIMENSION | 440mm*200mm*45mm
515mm*300mm*95mm |
