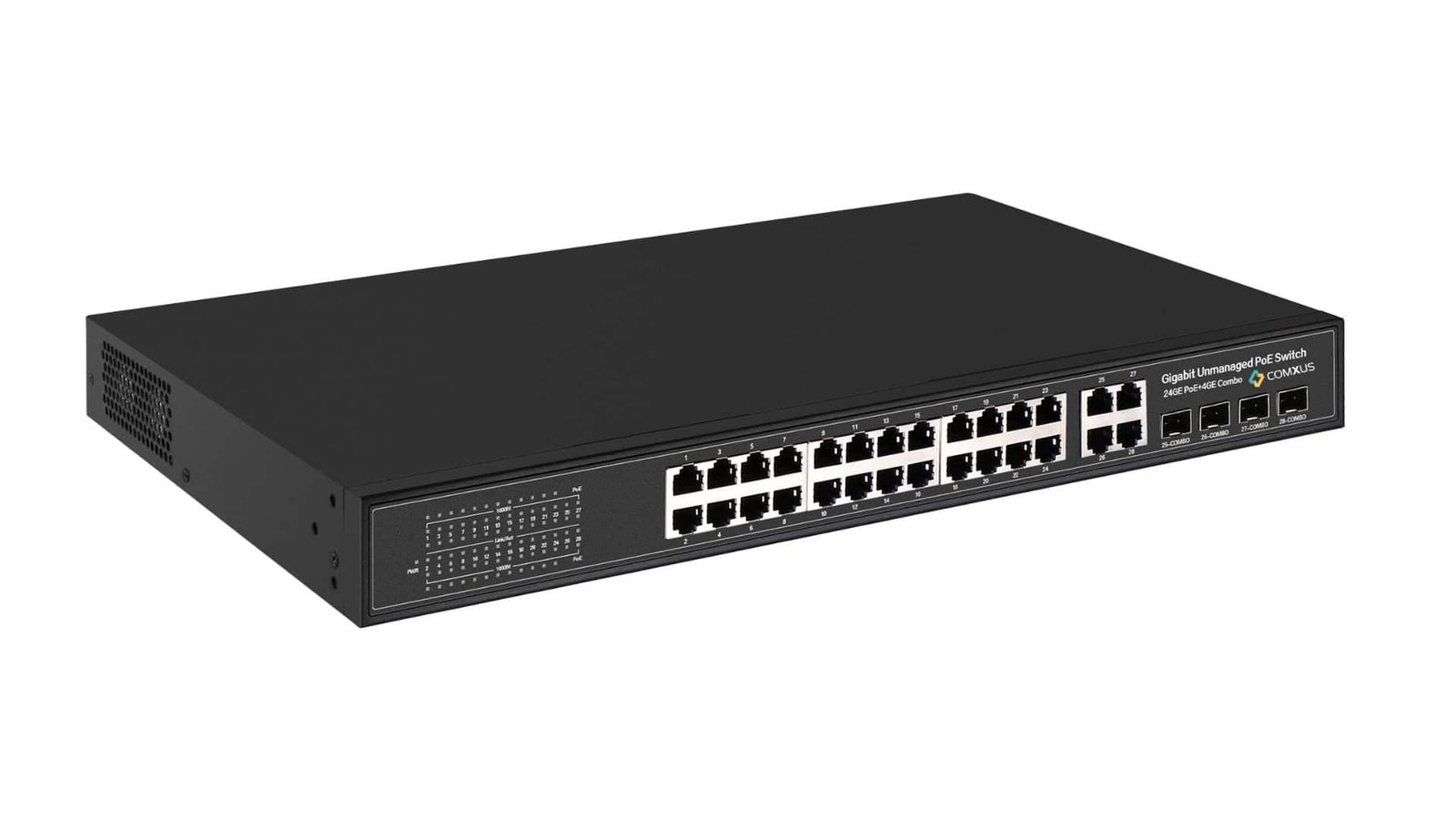

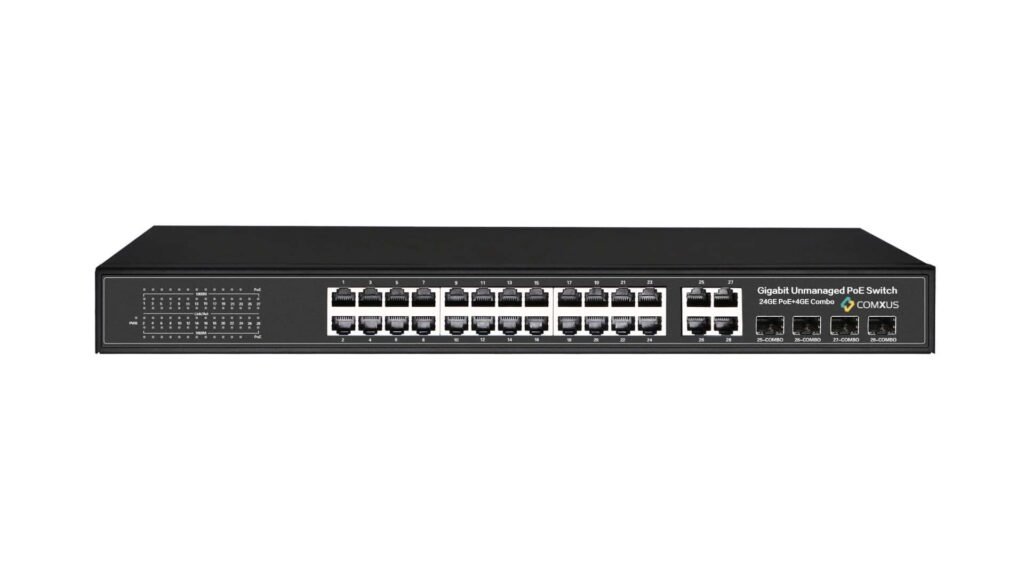

The Comxus CX-NPG-24GS4D is network Power over Ethernet (PoE) switch designed to deliver robust and reliable network performance. Featuring 1GbE ports and supporting 1GbE uplinks, this switch is engineered for industrial environments where high durability and performance are critical. The CX-NPG-24GS4D provides efficient power distribution to connected devices while ensuring seamless data transmission, making it an ideal choice for demanding industrial applications.
| NETWORK PORT | 24×10/100/1000Mbps 1000Base-TX RJ45 PoE Ports
Port 1~2 support PoE (single port power MAX 90W) Port 3~24 support PoE (single port power MAX 30W) 4×1G SFP/ RJ45 (Combo) Ports |
| ENVIRONMENT DETECTION | 1 group of input detection of environment temperature and humidity |
| PORT SPECIFICATION | 1-24 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X |
| TRANSMISSION MODE | Store and Forward (full wire speed) |
| BANDWIDTH | 56Gbps |
| PACKET FORWARDING | 41.67Mpps |
| BUFFER | 4.1M |
| TRANSMISSION DISTANCE | 10BASE-T ： Cat3,4,5 UTP(≤250 meter)
100BASE-TX ： Cat5 or later UTP (150 meter) 1000BASE-TX ： Cat6 or later UTP(150 meter) SFP: 1000M single and multimode optical module with maximum distance ≤ 120km (depending on the optical module) |
| FLASH | 4GB |
| RAM | 8GB |
| WATT | Standby power consumption≤5W;
Network Full-load power consumption≤10W; |
| LED INDICATOR | PWR: Power LED (green)
1-24:10/100、1000M Network connection indicator(green) 25-28:10/100、1000M Network connection indicator(green) PoE: PoE indicator |
| POWER INPUT |
Built-in power AC：100-240Vac 50-60Hz 5.1A Max 425W |
| OPERATING TEMPERATURE/HUMIDITY | -30 °C ~ + 60°C 5% 95% RH No coagulation |
| INGRESS PROTECTION | IP30 |
| LIGHTNING PROTECTION LEVEL | 6KV 8/20us |
| WEIGHT | 3.5kg/4.2kg |
| DIMENSION | 440mm*290mm*45mm
515mm*375mm*95mm |
