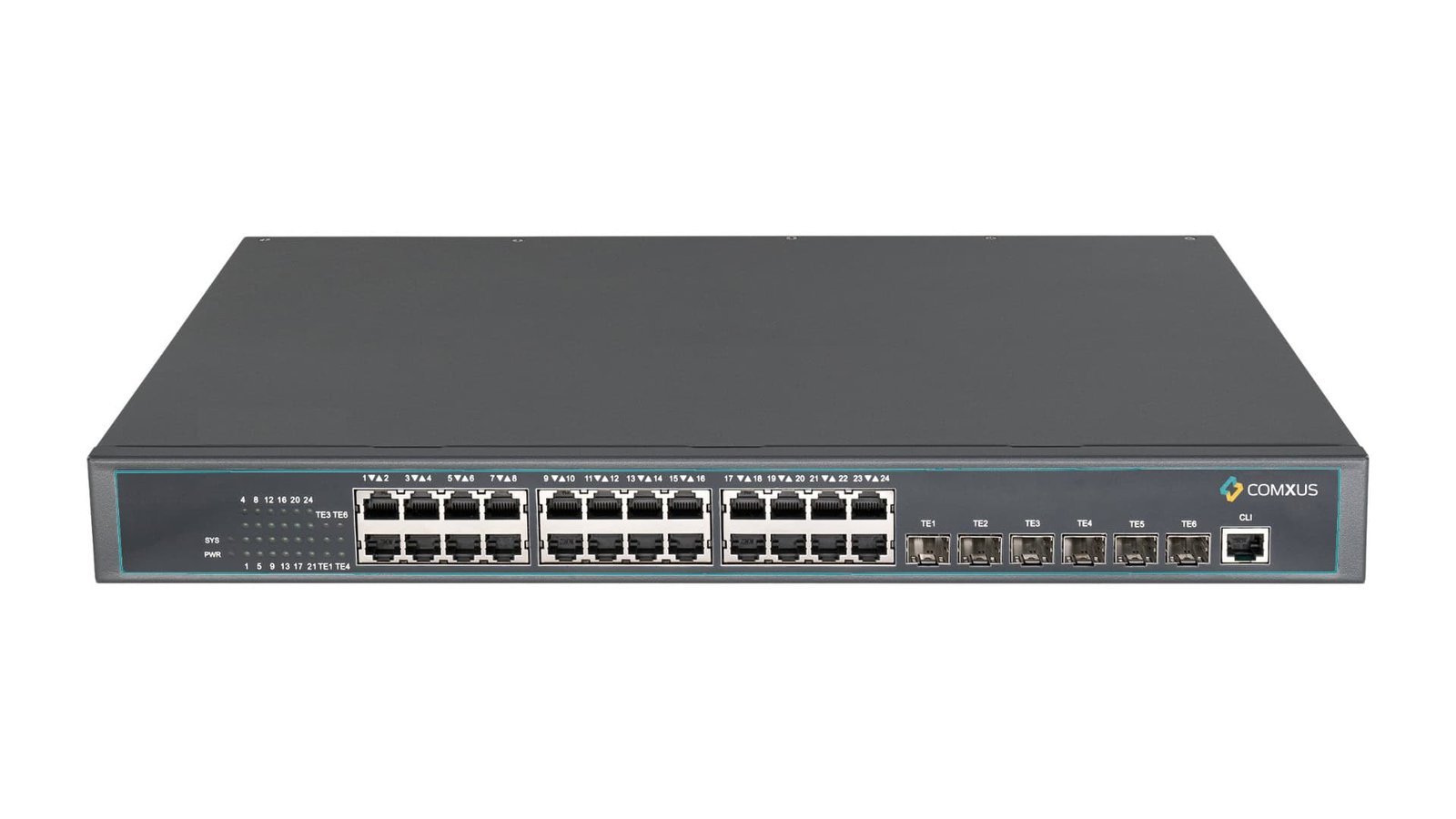

The CX-NPD-24GS60D-L3 is a next-generation 24-Port Managed PoE 1G Stackable Switch with 6 SFP Ports. Designed for metropolitan, campus and enterprise networks. It combines high-performance hardware with an advanced software platform for reliable and efficient operation.
This switch supports IPv6, VPNs and comprehensive security features. With L2/L3/L4 wire-speed switching, non-stop upgrades, continuous forwarding, graceful restart and redundancy protection, it ensures high availability and uninterrupted network performance.
1. Layer 3 Switching: Supports advanced routing capabilities, including static and dynamic routing protocols. It enables efficient traffic management and network segmentation.
2. High Port Density: Equipped with 24 1G Ethernet ports, providing ample connectivity for multiple devices across enterprise and campus environments.
3. 10G Uplink SFP Ports: Includes 6 x 10G SFP uplink ports for fast backbone connections and seamless integration with existing fibre infrastructure.
4. Power over Ethernet (PoE): Delivers efficient power to connected devices such as IP cameras, wireless access points and VoIP phones, reducing the need for separate power supplies.
5. Enhanced Security: Supports ACLs, 802.1x authentication and port security to prevent unauthorised access and protect sensitive data.
6. Quality of Service (QoS): Advanced QoS ensures critical traffic is prioritised, guaranteeing smooth performance for latency-sensitive applications.
7. User-Friendly Management: Offers web interface, SNMP support and CLI, simplifying configuration, monitoring and maintenance.
8. Stackable Design: Supports stacking multiple switches as a single logical unit, enabling easier management, scalability, and high availability.
The 24-Port Managed PoE 1G Stackable Switch with 6 SFP Ports is ideal for enterprise, campus and metro networks that require high-speed connectivity, security and reliability. Its combination of PoE power, advanced Layer 3 routing and stackable design makes it a cost-effective solution for growing networks.
With this switch, IT teams can simplify management, enhance security and maintain uninterrupted network performance across all critical applications.
| NETWORK PORT | Â 24 Port PoE*10/100/1000Base-TX POE Port
6*100/1000/2500/10000M SFP 1*Console Port |
| RESET KEY | Â 1x Reset Key |
| ENVIRONMENT DETECTION | Â 1 Group of Input Detection of Environment Temperature and Humidity |
| CPU | Â Multi-Core |
| DDR | Â DRAM |
| PORT SPECIFICATION | Â 1-24 port 10/100/1000 Base(TX) auto detection |
| TRANSMISSION MODE | Â Store and Forward (Full Wire Speed) |
| BANDWIDTH | Â 216Gbps |
| PACKET FORWARDING | Â 126Mpps |
| BUFFER | Â 2 MB |
| TRANSMISSION DISTANCE | Â 100BASE-TX: Cat5 or later UTP (150 meter) 1000BASE-TX: Cat6 Or Later UTP (150 meter)
SFP: 100M/1G/10G Single-Mode Multi-Mode & Optical Module, The Maximum Distance Is   ≤120km (Depending on The Optical Module) |
| FLASH | Â 4GB |
| RAM | Â 2GB |
| WATT | Â Standby Power Consumption
Network Full Load Power Consumption≤25W Full Load POE Power Consumption ≤1000W |
| LED INDICATOR | Â PWR: Power LED
SYS: System LED 1-24:10/100/1000M Network Connection Indicator 25-30:10G SFP Connection Indicator |
| POWER INPUT | Â Hot Swappable Redundant AC: 100V-
240V, 50Hz±10% |
| FAN | Â 2 (built-in) |
| OPERATING TEMPERATURE/HUMIDITY |  -30°C ~ +60°C, 10%-90% Non-Condensing |
| INGRESS PROTECTION | Â IP30 |
| LIGHTNING PROTECTION LEVEL | Â 6KV |
| WEIGHT | Â 6.1kg |
| DIMENSION | Â 442.5x335x44.6 |
