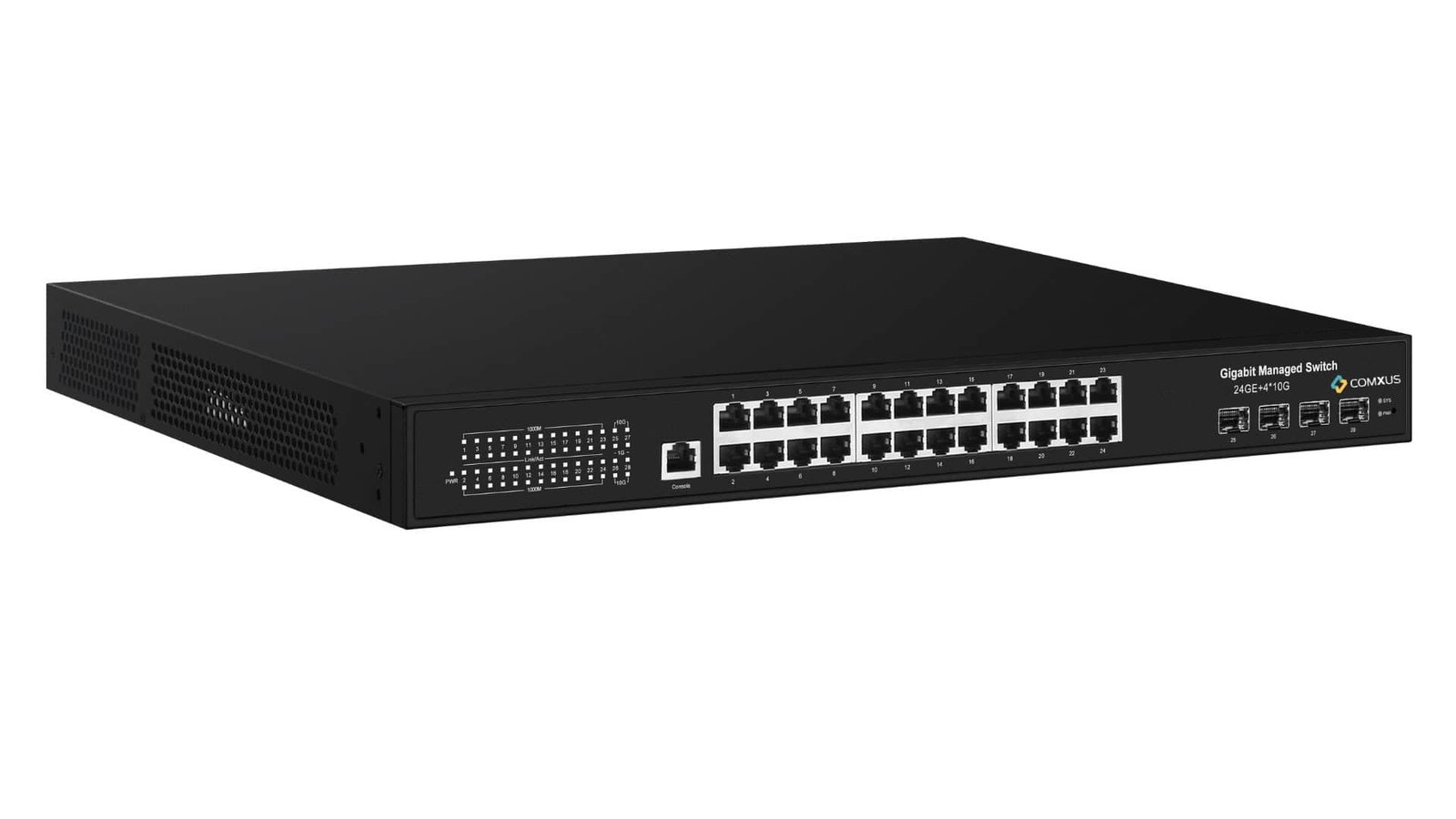

24 PORT NETWORK MANAGED SWITCH WITH 4G Upink SFP

CX-NA-24GS4D-L2

  • IEEE 802.3at Compliance
  • 1GbE Downlink Ports
  • 1GbE SFP Slots
  • Layer 2 Switching
  • Web-Based Management
  • High Availability

Certifications:

CE

The Comxus CX-NA-24GS4D-L2 is a high-performance Layer 2 Managed switch engineered to provide robust and scalable network solutions for demanding industrial environments. With its advanced features and durable design, this switch ensures optimal network performance and reliability.

  • IEEE 802.3at Compliance: Supports IEEE 802.3at standards, providing efficient power delivery to connected devices.
  • 1GbE Downlink Ports: Equipped with multiple Gigabit downlink ports for high-speed network connectivity.
  • 1GbE: Offers reliable Gigabit uplink ports for seamless data transmission to higher-level network infrastructures.
  • 1GbE SFP Slots: Includes Gigabit SFP slots for flexible fiber optic connectivity options.
  • Layer 2 Switching: Operates at Layer 2 of the OSI model, ensuring efficient data packet forwarding and network management.
  • Web-Based Management: Features a web management interface for easy configuration and monitoring of network settings and performance.
  • High Availability: Designed for high availability to minimize downtime and ensure continuous network operation.
  • Scalability: Supports high scalability to accommodate growing network demands and expanding industrial setups.
NETWORK PORT  24×10/100/1000Mbps 1000Base-TX RJ45 Ports

4×1G SFP Ports

1x Console RJ45 Port

RESET KEY  1x Reset Key
ENVIRONMENT DETECTION  1 group of input detection of environment temperature and humidity
PORT SPECIFICATION  1-24 port 10/100/1000BaseT(X)auto detection
TRANSMISSION MODE  Store and Forward (full wire speed)
BANDWIDTH  56G / 128Gbps
PACKET FORWARDING  41.67Mpps
BUFFER  Fully integrated 4.1 Mbit packet buffer
TRANSMISSION DISTANCE  10BASE-T. Cat3,4,5 UTP (≤250 meter)

100BASE-TX. Cat5 or later UTP (150 meter) 1000BASE-

TX. Cat6 or later UTP (150 meter) SFP: 1000M single and multimode optical

With maximum distance ≤ 120km (depending on the optical module)

FLASH  4GB
RAM  8GB
WATT  Standby power consumption

Network full load power

consumption≤25W Full load power

consumption ≤240W

LED INDICATOR  PWR: Power LED

SYS: System LED 1-24:10/100.1000M

Network connection indicator 25-28: SFP connection indicator

POWER INPUT  Built-in power AC.100-240Vac 50-60Hz 0.3A max 25W
OPERATING TEMPERATURE/HUMIDITY  -30 °C ~ +60°C 5% 95% RH No coagulation
INGRESS PROTECTION  IP30
LIGHTNING PROTECTION LEVEL  6KV
WEIGHT  2.1kg/2.8kg
DIMENSION  440mm*200mm*45mm

515mm*300mm*95mm

CX-NA-24GS4D-L2 Datasheet Download
