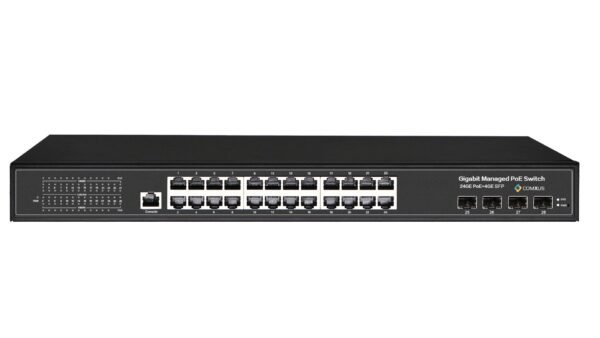

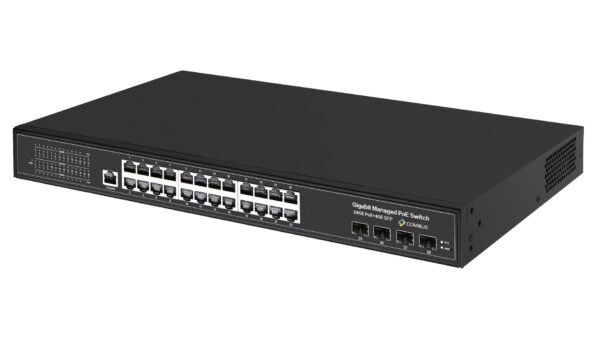

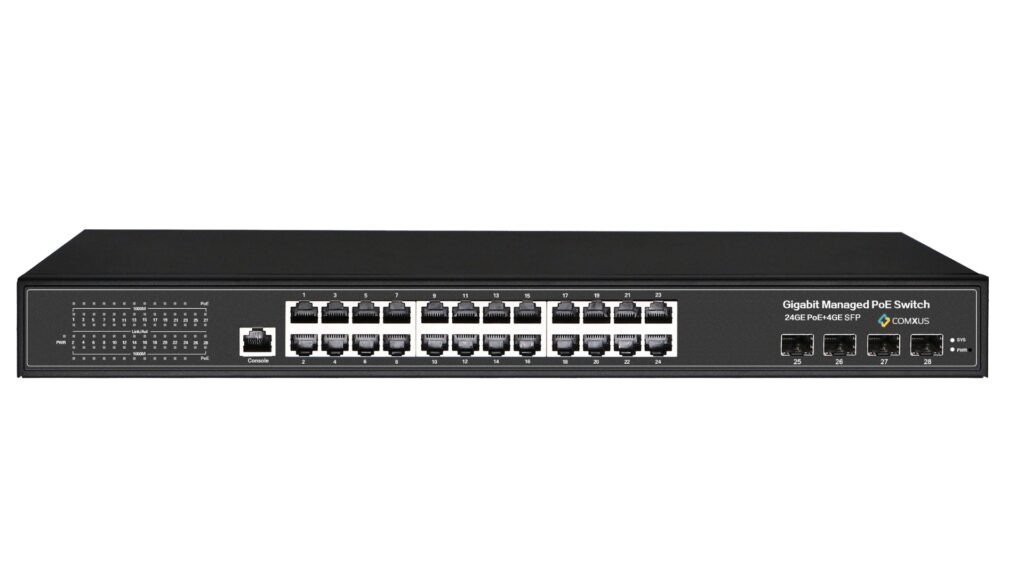

24 Port Managed PoE Network Switch with 4 Gigabit Uplink SFP

CX-NPA-24GS4D-L2

  • IEEE 802.3at/af/bt Compliance
  • 1GbE Downlink Ports
  • 1GbE SFP Slots
  • Power over Ethernet (PoE)
  • Layer 2 Switching

Certifications:

CE

The 24 Port Managed PoE Network Switch with 4 Gigabit Uplink SFP (Comxus CX-NPA-24GS4D-L2) is built for high-performance and mission-critical networks. This switch combines durability, advanced PoE support and reliable connectivity. It ensures efficient power distribution and seamless data transmission,

Features

1. IEEE 802.3at/af/bt PoE Standards: This switch supports the latest PoE standards, delivering efficient power to connected devices such as IP cameras, access points and VoIP phones. It eliminates the need for additional power supplies, reducing infrastructure costs.

2. High-Speed 1GbE Downlink Ports: Equipped with 24 Gigabit Ethernet ports, the switch offers high-speed connectivity for multiple devices.

3. 4 Gigabit Uplink SFP Slots: The 4 SFP uplinks provide flexible fiber optic connections. They ensure long-distance data transmission and smooth integration with higher-level network infrastructures.

4. Power over Ethernet (PoE): With PoE (Power over Ethernet) functionality, the switch powers devices directly through Ethernet cables, simplifying deployment and reducing wiring complexity.

5. Layer 2 Switching Performance: Operating at Layer 2 of the OSI model, it ensures efficient packet forwarding, VLAN segmentation and improved network management

NETWORK PORT  24*10/100/1000Base-TX PoE Port

Port 1~2 support PoE (single port power MAX 90W)

Port 3~24 support PoE (single port power MAX 30W)

4×1G SFP/ RJ45 (Combo Ports)

1x Console RJ45 Port

RESET KEY  1x Reset Key
ENVIRONMENT DETECTION  1 group of input detection of environment temperature and humidity
PORT SPECIFICATION  1-24 port 10/100/1000BaseT(X)auto detection
TRANSMISSION MODE  Store and Forward (full wire speed)
BANDWIDTH  56Gbps
PACKET FORWARDING  41.67Mpps
BUFFER  Fully integrated 4.1 Mbit packet buffer
TRANSMISSION DISTANCE  10BASE-T : Cat3,4,5 UTP(≤250 meter)

100BASE-TX : Cat5 or later UTP(≤100 meter)

1000BASE-TX : Cat6 or later UTP(≤1000 meter)

1000BASE-SX:62.5μm/50μm MMF(2m~550m)

1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

FLASH   2GB
RAM   4GB
WATT  720W
LED INDICATOR  PWR: Power LED(Over-power LED)

SYS:(System LED)

1~24:(Link LED=10/100M Link、1000M=Gigabit Link)

25~28:(SFP)

POWER INPUT  Built-in power AC 100~240V 50/60HZ
OPERATING TEMPERATURE/HUMIDITY  -30 °C ~ + 60°C 5% 95% RH No coagulation
INGRESS PROTECTION  IP30
LIGHTNING PROTECTION LEVEL  6KV
WEIGHT  3.6kg/4.4kg
DIMENSION  440mm*290mm*45mm

515mm*375mm*95mm

CX-NPA-24GS4D-L2 Datasheet Download
