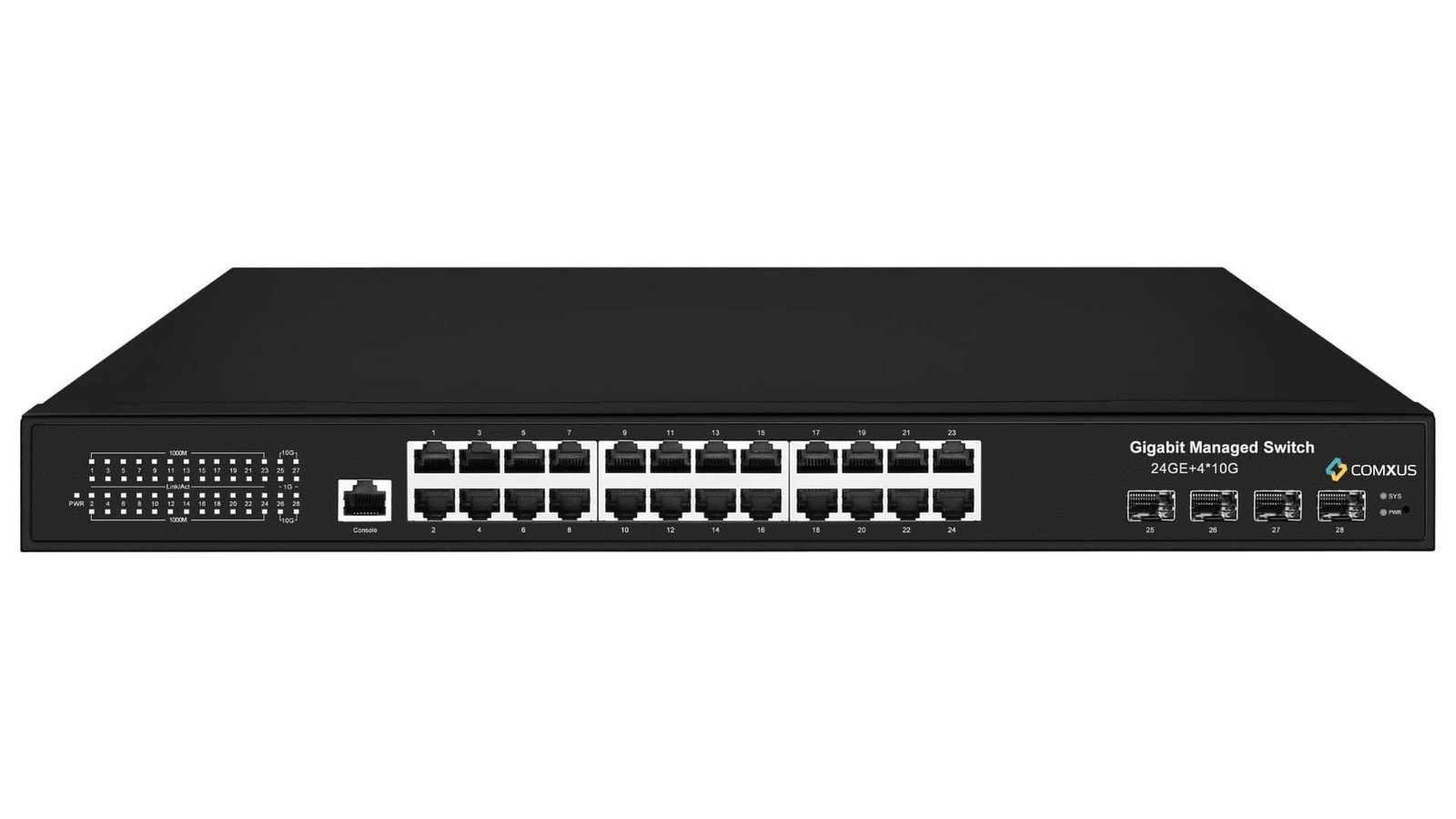

24 Port Managed Switch With 4 10G Uplink SFP

24 Port Managed Switch With 4 10G Uplink SFP

CX-NA-24GS40S2-L2

  • Layer 2 Switching
  • High Port Density
  • 10G Uplink SFP Ports
  • Quality of Service (QoS)
  • Redundancy and Reliability
Get A Quote

Certifications:

CE

The Comxus CX-NA-24GS40S2-L2 is a high-performance Layer 2 Managed switch engineered to provide robust and scalable network solutions for demanding challenging environments. With its advanced features and durable design, this switch ensures optimal network performance and reliability.

  • Layer 2 Switching: Provides efficient data forwarding with VLAN support, STP, and MAC address learning for optimized network segmentation and traffic management.
  • High Port Density: Equipped with 24 Gigabit Ethernet ports, offering ample connectivity for various industrial devices and applications.
  • 10G Uplink SFP Ports: Includes 2 10G SFP+ uplink ports, providing high-speed backbone connectivity and seamless integration with existing network infrastructure.
  • Enhanced Security: Features comprehensive security protocols such as ACLs, 802.1x authentication, and
    port security to protect against unauthorized access and ensure data integrity.
  • Quality of Service (QoS): Advanced QoS mechanisms prioritize critical traffic, ensuring smooth and reliable performance for latency-sensitive applications.
  • Redundancy and Reliability: Supports redundant power inputs and ring network topology, ensuring uninterrupted network operation and minimizing downtime.
  • User-Friendly Management: Offers an intuitive web interface, SNMP support, and CLI for simplified configuration, monitoring, and maintenance.
NETWORK PORT  24×10/100/1000Mbps 1000Base-TX RJ45 Ports

4×10G SFP Ports

1x Console RJ45 Port
RESET KEY  1x Reset Key
ENVIRONMENT DETECTION  1 group of input detection of environment temperature and

humidity
PORT SPECIFICATION  1-24 port 10/100/1000BaseT(X)auto detection
TRANSMISSION MODE  Store and Forward (full wire speed)
BANDWIDTH  512Gbps
PACKET FORWARDING  95.23Mpps
BUFFER  12M
TRANSMISSION DISTANCE  10BASE-T . Cat3,4,5 UTP(≤250 meter)

100BASE-TX . Cat5 or later UTP(150 meter)

1000BASE-TX . Cat6 or later UTP(150 meter) SFP: 1000M single

and multimode optical

With maximum distance ≤ 120km (depending on the optical module)
FLASH  4GB
RAM  6GB


WATT

  Standby power consumption

Network full load power consumption≤25W Full load power

consumption ≤240W
LED INDICATOR  PWR: Power LED

SYS: System LED

1-24:10/100、1000M Network connection indicator

25-28:10G SFP connection indicator
POWER INPUT  2 sets of hot swappable redundant power supplies

AC：100-240Vac 50-60Hz 0.5A    65W / 1sets

Switch Full Load MAX 30W
OPERATING TEMPERATURE/HUMIDITY  -30 °C ~ + 60°C 5% 95% RH No coagulation
INGRESS PROTECTION  IP30
LIGHTNING PROTECTION LEVEL  6KV
WEIGHT  4.2kg/5.9kg
DIMENSION  440mm*345mm*45mm

515mm*403mm*95mm
