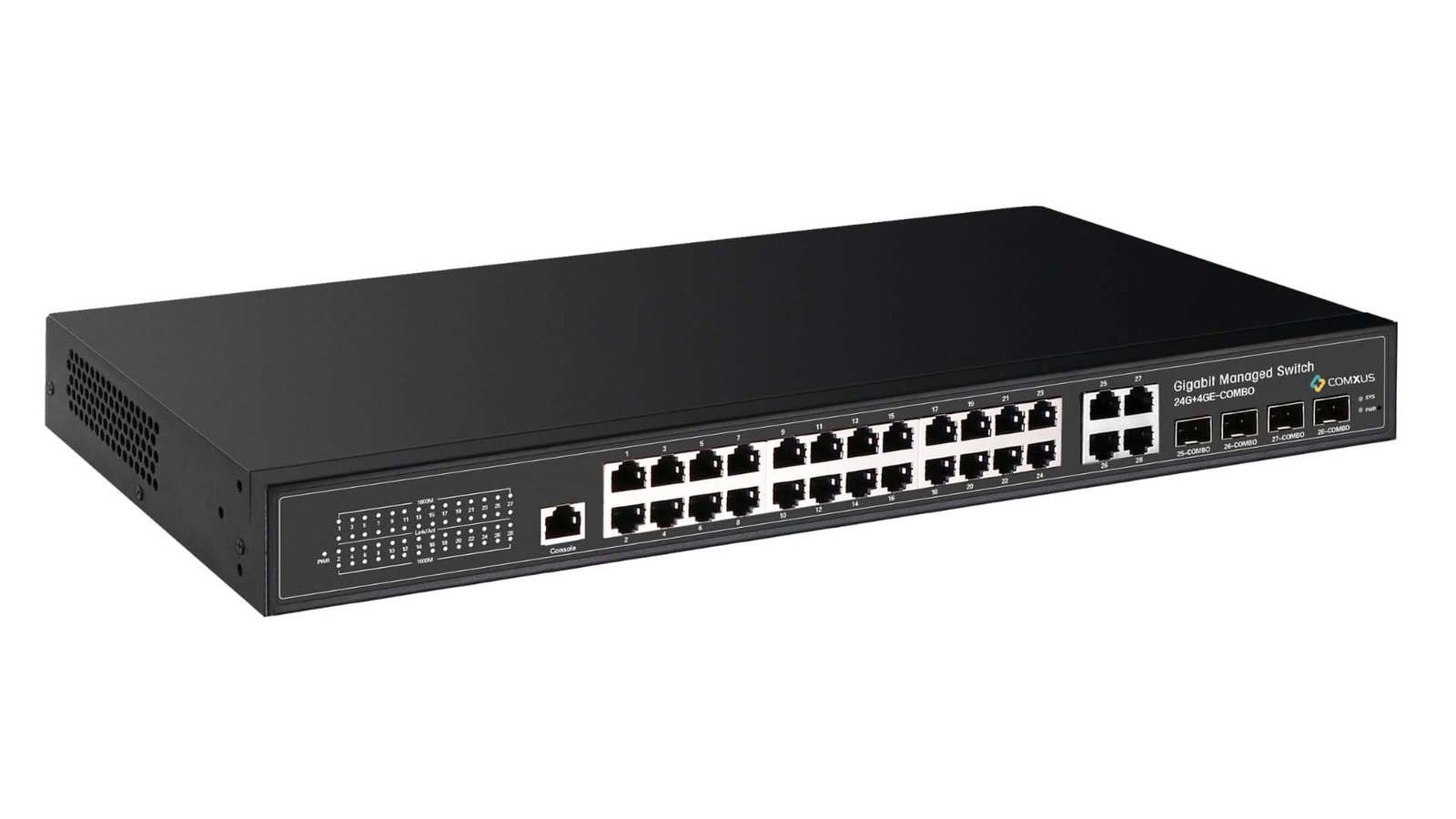

The Comxus CX-NA-24GS40D-L3 is a 24 Port L3 Managed Switch With 4 Giga 10G Uplink SFP. It is designed for demanding industrial environments. This switch combines high performance, strong security and scalability. It ensures reliable data transmission and uninterrupted connectivity.
1. Layer 3 Switching: The switch supports static and dynamic routing. It enables smooth inter-VLAN communication. Network traffic is managed with high efficiency.
2. High Port Density: It includes 24 Gigabit Ethernet ports. These ports offer ample connectivity for multiple devices in large networks.
3. 10G Uplink SFP+ Ports: The switch has 4 x 10G SFP uplinks. These provide high-speed backbone connectivity. They also support long-distance fibre communication.
4. Industrial-Grade Design: The rugged metal body resists shock, vibration and dust. It works in extreme temperatures, ensuring stable performance.
5. Enhanced Security: Security features include ACLs, IEEE 802.1x, and port security. These protect against unauthorised access and keep data safe.
6. Quality of Service (QoS): QoS prioritises critical traffic. It ensures smooth handling of VoIP calls and video streams.
7. Redundancy and Reliability: The switch supports redundant power inputs. It also supports ring topology. This ensures network uptime and minimises downtime.
8. Easy Management: It offers a web interface, CLI and SNMP support. These tools simplify configuration and monitoring for IT teams.
The 24 Port L3 Managed Switch With 4 Giga 10G Uplink SFP delivers speed, security and scalability. It is ideal for the oil & gas, manufacturing, power and transportation industries. With high availability and durability, it ensures long-term reliability in critical networks.
| NETWORK PORT | 24×10/100/1000Mbps 1000Base-TX RJ45 PoE Ports Port 1~2 support 24V/48V PoE (single port power MAX 90W) Port 3~24 support PoE (single port power MAX 30W) 4×10G SFP Ports 1x Console RJ45 Port |
| RESET KEY | 1x Reset Key |
| ENVIRONMENT DETECTION | 1 group of input detection of environment temperature and humidity |
| CPU | 400MHz ARM® Cortex™-A9 |
| DDR | 2G DDR3 1333MHz |
| PORT SPECIFICATION | 1-24 port 10/100/1000BaseT(X)auto detection |
| TRANSMISSION MODE | Store and Forward (full wire speed) |
| BANDWIDTH | 512Gbps |
| PACKET FORWARDING | 95.23Mpps |
| BUFFER | 12M |
| TRANSMISSION DISTANCE | 10BASE-T: Cat3,4,5 UTP (≤250 meter) 100BASE-TX: Cat5 or later UTP (≤100 meter) 1000BASE-TX: Cat6 or later UTP (≤1000 meter) |
| FLASH | 4GB |
| RAM | 8GB |
| WATT | Standby power consumption Network full load power consumption≤25W Full load Power consumption ≤240W |
| LED INDICATOR | PWR: Power LED SYS: System LED 1-24:10/100、1000M Network connection indicator 25-28:10G SFP connection indicator |
| POWER INPUT | Built-in power AC：100-240Vac 50-60Hz 5A max 415W |
| OPERATING TEMPERATURE/HUMIDITY | -30 °C ~ + 60°C 5% 95% RH No coagulation |
| INGRESS PROTECTION | IP30 |
| LIGHTNING PROTECTION LEVEL | 6KV |
| WEIGHT | 3.0kg/3.2kg |
| DIMENSION | 440mm*200mm*45mm 515mm*375mm*95mm |
