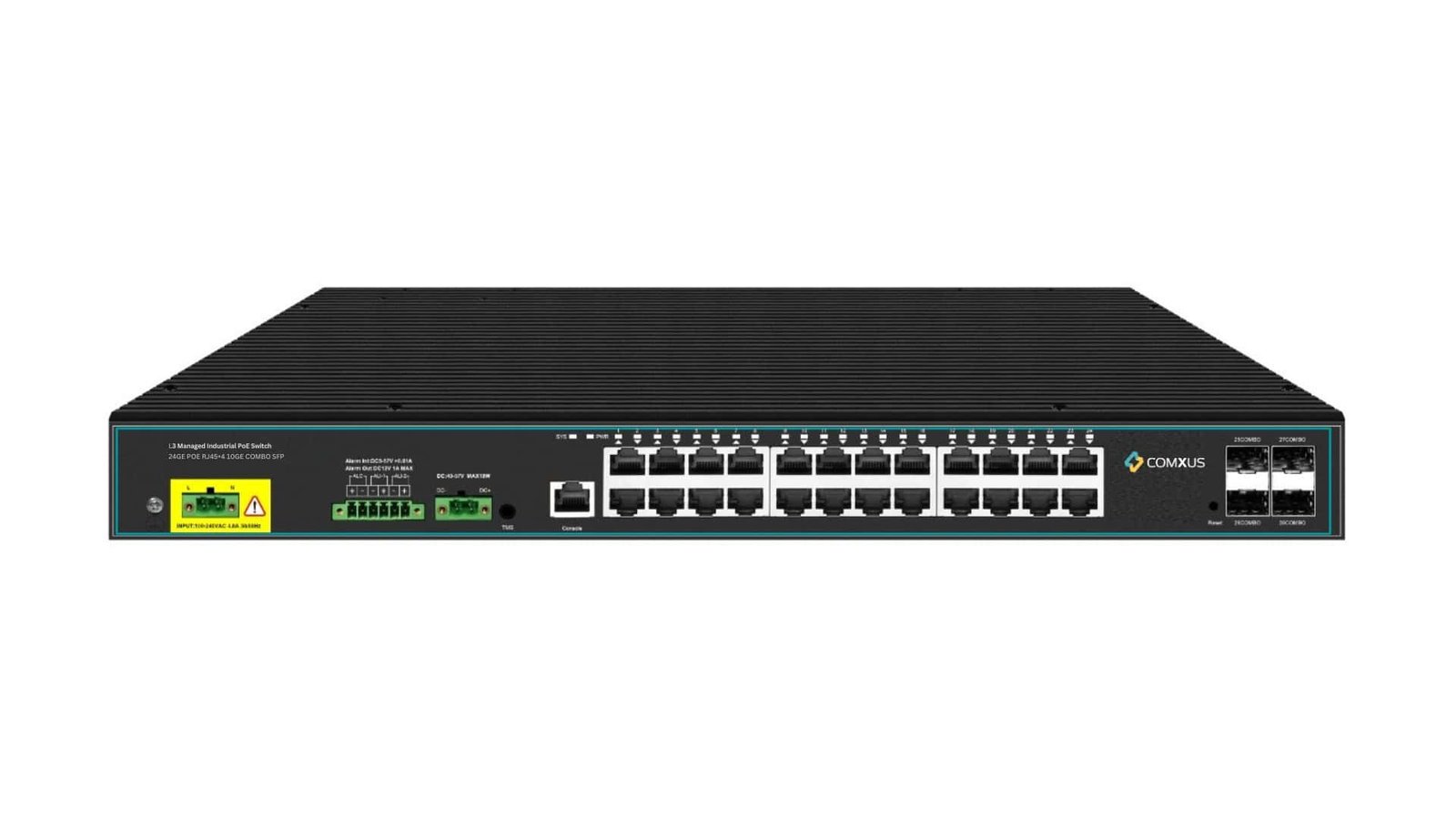

The Comxus CX-NPA-24GS40I-L3 Industrial-Grade Layer 3 Managed Switch is a powerful and scalable networking solution designed for core and aggregation layers in demanding industrial environments. Built to handle high traffic loads, complex routing, and mission-critical operations, this industrial Layer 3 managed switch delivers exceptional performance, security, and reliability.
With 24 Gigabit Ethernet ports, 4 high-speed 10G SFP+ uplinks, and stackable architecture, this switch is ideal for large-scale industrial networks that require seamless data flow, intelligent routing, and future-ready scalability.
This 24 port industrial Ethernet switch provides high-capacity connectivity for multiple devices across industrial environments. It supports:
Its high port density makes it suitable for large industrial deployments and centralized network architectures.
As a Layer 3 industrial managed switch, it enables intelligent and efficient traffic handling through:
These features are critical for complex industrial networks, multi-site connectivity, and real-time applications.
Equipped with 4 high-speed 10G SFP+ uplink ports, the switch provides ultra-fast fibre connectivity for backbone and aggregation layers. This ensures:
It is ideal for smart city projects, power utilities, oil & gas operations, and large industrial campuses.
The stackable industrial switch design allows multiple units to operate as a single logical switch, providing:
This makes it a future-ready solution for expanding industrial Ethernet networks.
Built for harsh environments, this industrial network switch features a robust metal enclosure and industrial-grade components. It offers:
This ensures stable operation in factory floors, outdoor installations, and heavy industrial zones.
With support for IEEE 802.3af/at/bt PoE standards, the switch can deliver both power and data over a single cable. It efficiently powers:
This reduces infrastructure complexity and improves deployment efficiency in industrial automation and surveillance networks.
The Comxus CX-NPA-24GS40I-L3 is built for organizations that require high-performance, scalable, and secure industrial networking solutions.
It is an ideal solution for system integrators, industrial network architects, and enterprises managing complex industrial Ethernet networks.
| NETWORK PORT | 24×10/100/1000Mbps 1000Base-TX RJ45 PoE Ports
Port 1~2 support 24V/48V PoE (single port power MAX 90W) Port 3~24 support PoE (single port power MAX 30W) 4*100/1000/2500/10000M SFP 1x Console RJ45 Port |
| RESET KEY | 1x Reset Key |
| ENVIRONMENT DETECTION | 1 group of input detection of environment temperature and humidity |
| CPU | MIPS-34Kc 800GHz |
| DDR | 2G DDR3 |
| PORT SPECIFICATION | 1-24 port 10/100/1000BaseT(X)auto detection |
| TRANSMISSION MODE | Store and Forward (full wire speed) |
| STACKING BANDWIDTH | 128Gbps |
| PACKET FORWARDING | 95.23Mpps |
| BUFFER | 12M |
| TRANSMISSION DISTANCE | 10BASE-T ： Cat3,4,5 UTP(≤250 meter)
100BASE-TX ： Cat5 or later UTP(150 meter) 1000BASE-TX ： Cat6 or later UTP(150 meter)yyyy SFP: 100M/1G/10G single-mode multi-mode optical module, the maximum distance is ≤120km (depending on the optical module) |
| FLASH | 4GB |
| RAM | 8GB |
| WATT | 800W |
| LED INDICATOR | PWR: Power LED
SYS: System LED 1-24:10/100、1000M Network connection indicator 25-28:10G SFP connection indicator |
| POWER INPUT | DCIN:
SW: 12-57V POE: 44-57V |
| OPERATING TEMPERATURE/HUMIDITY | -40° C +85° C; 5%~95% RH |
| INGRESS PROTECTION | IP30 |
| LIGHTNING PROTECTION LEVEL | 6KV |
| WEIGHT | 3kg/3.2kg |
| DIMENSION | 440mm*200mm*45mm , 515mm*375mm*95mm |
