24 PORT 10G MANAGED STACKABLE SWITCH WITH 2 QSFP

CX-ND-0GSF24S20-L3

  • Layer 3 Switching
  • High Port Density
  • 100G Uplink QSFP Ports
  • Enhanced Security
  • Quality of Service (QoS)
  • User-Friendly Management

Certifications:

CE

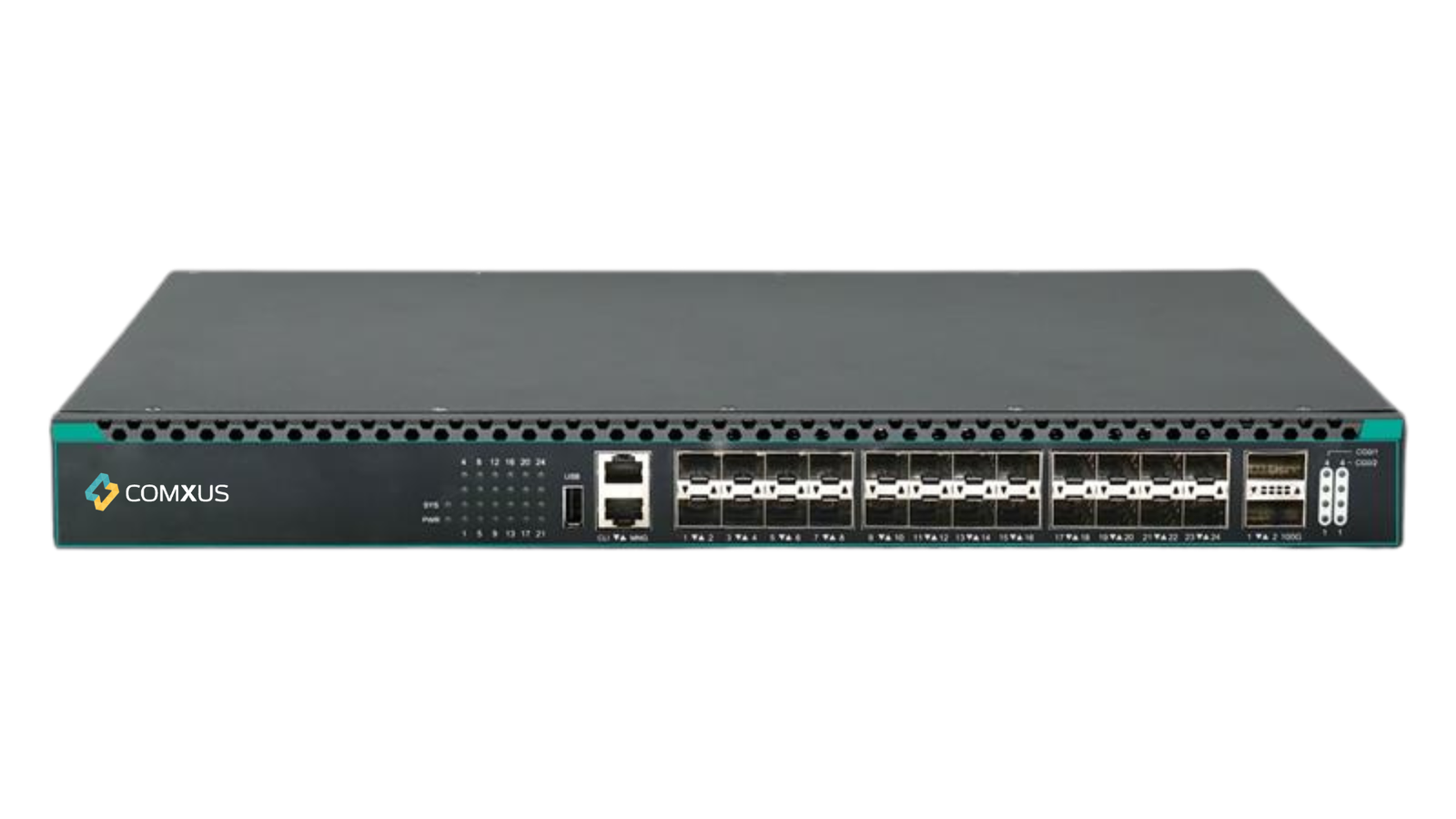

The Comxus CX-ND-0GSF24S20-L3 is a high-performance Layer 3 Managed Stackable Core Switch engineered to provide robust and scalable network
solutions for demanding various environments. With its advanced features and durable design, this switch ensures optimal network performance and
reliability.

  • Layer 3 Switching: Supports advanced routing capabilities, including static and dynamic routing protocols, enabling efficient traffic management and
    network segmentation.
  • High Port Density: Equipped with 24 10G fiber ports, offering ample connectivity for various devices and applications.
  • 100G Uplink QSFP Ports: Includes 2 100G QSFP uplink ports, providing high-speed backbone connectivity and seamless integration with existing network
    infrastructure.
  • Enhanced Security: Features comprehensive security protocols such as ACLs, 802.1x authentication, and port security to protect against unauthorized
    access and ensure data integrity.
  • Quality of Service (QoS): Advanced QoS mechanisms prioritize critical traffic, ensuring smooth and reliable performance for latency-sensitive applications.
  • User-Friendly Management: Offers an intuitive web interface, SNMP support, and CLI for simplified configuration, monitoring, and maintenance.
NETWORK PORT  24-Port 10G SFP+ (Base T Ports Optional)

2-Port 100G QSFP28 ,1* RJ45 Console Port, 1*RJ45 Management Port, 1*USB 2.0 Port

RESET KEY  1x Reset Key
ENVIRONMENT DETECTION  1 Group of Input Detection of Environment

Temperature and Humidity

CPU  Multi-Core
DDR  DRAM
PORT SPECIFICATION  1-24 port 100/1000/10000SFP (X) auto detection
TRANSMISSION MODE  Store and Forward (Full Wire Speed)
BANDWIDTH  2.56Tbps
PACKET FORWARDING  920Mpps
BUFFER (6/12MBIT)  2 GB DRAM and 6Mbits Buffer
TRANSMISSION DISTANCE  100BASE-TX: Cat5 or later UTP (150 meter) 1000BASE-

TX: Cat6 or Later UTP (150 meter)

SFP & QSFP: 100M/1G/10G/100G Single-Mode Multi-Mode &

Optical Module, The Maximum

Distance Is   ≤120km (Depending on The Optical Module)

FLASH  4GB
RAM  2GB
WATT  Standby Power Consumption

Network Full Load Power Consumption≤45W Full Load

Power Consumption ≤70W

LED INDICATOR  PWR: Power LED

SYS: System LED

1-24:10/1001000/10000M Network Connection Indicator 25-

26:100G QSFP Connection Indicator

POWER INPUT  Hot-Swappable

Redundant AC: 100V-

240V, 50Hz±10%

DC: -36V~-72V

FAN SLOT  4 (built-in)
OPERATING TEMPERATURE/HUMIDITY  -10°C +50°C, 10%-90% non-condensing
INGRESS PROTECTION  IP30
LIGHTNING PROTECTION LEVEL  6KV
WEIGHT  6.1kg
DIMENSION  440*300*44mm
