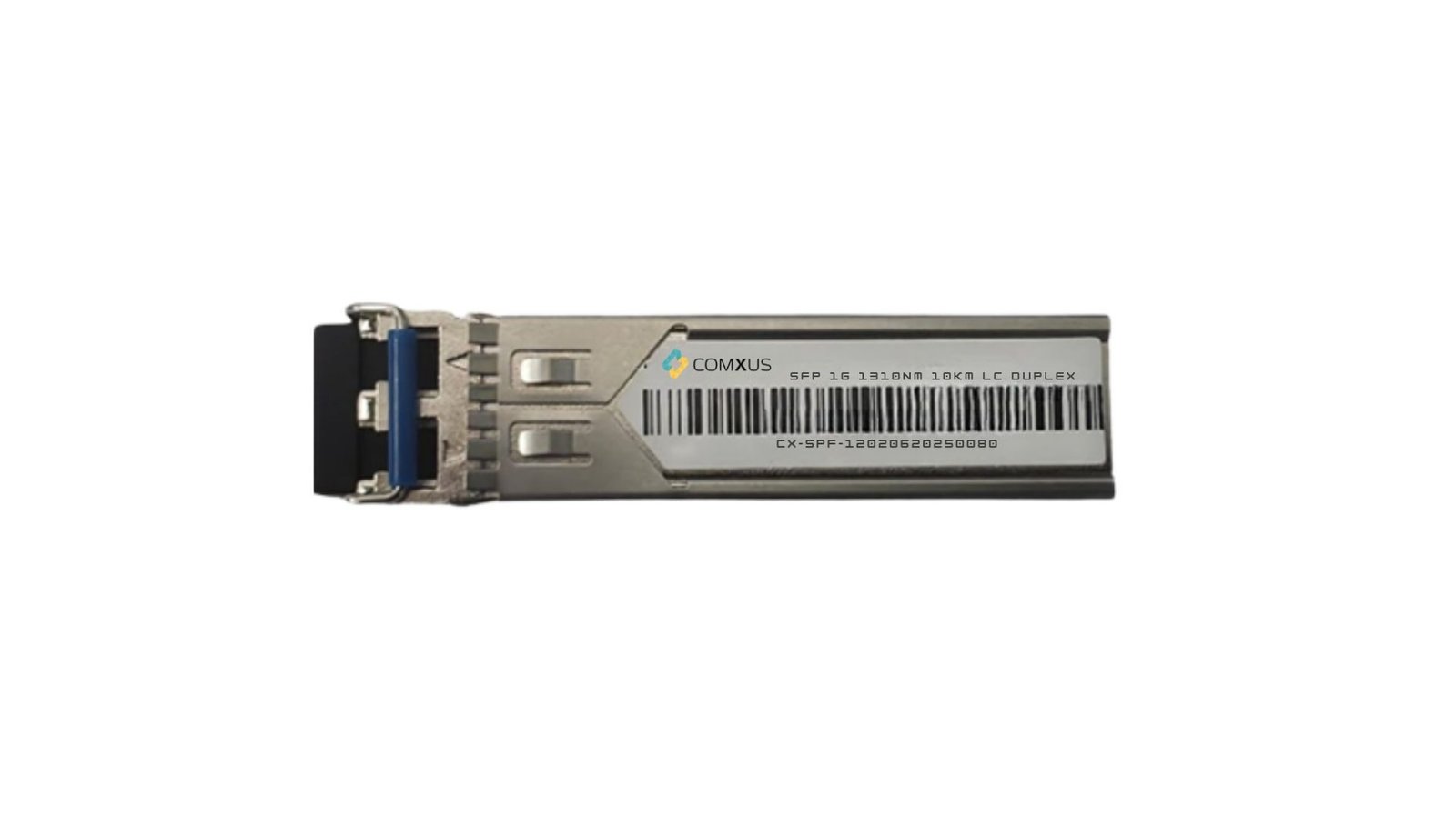

1G SFP Module

CX-SFP-1

  • Dual data-rate of 1.25Gbps/1.063Gbps operation
  • 1310nm FP laser and PIN photodetector for 20km transmission
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic Monitoring.
  • Internal Calibration or External Calibration.
  • Compatible with SONET OC-24-LR-1

Certifications:

CE

CX-SFP-1 is a high-performance SFP transceiver module designed for long-distance optical communication. The robust design ensures durability and reliability in harsh environments, while the low power consumption improves overall system performance.

  • Dual data-rate of 1.25Gbps/1.063Gbps operation
  • 1310nm FP laser and PIN photodetector for 20km transmission
  • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
  • Digital Diagnostic Monitoring.
  • Internal Calibration or External Calibration.
  • Compatible with SONET OC-24-LR-1
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature:
    Standard: 0 to +70°C
    Industrial: -40 to +85°
Transceiver Type SFP
Fiber Media Support Single-Mode (Multi-Mode Optional)
Speed 1.25 Gbps
Distance 10 km
Compliant Standard IEEE802.3z 1000BASE-LX
Connector Duplex LC connector
Single/Bi Direction Single-direction
Wavelength 1310 nm
Cable Type Single-mode 9 um fiber
Power Supply 3.3 V

CX-SFP-1 Datasheet Download
