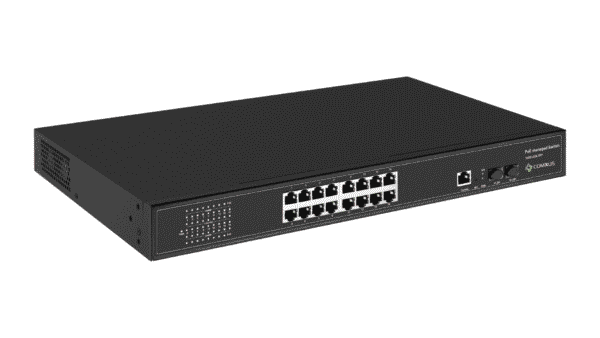

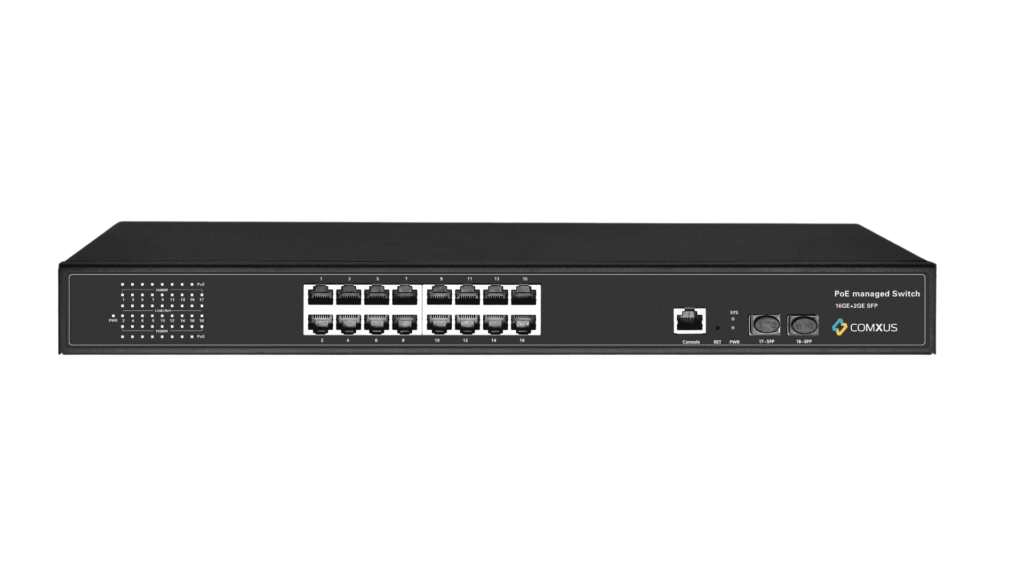

The Comxus CX-NPA-16GS2D-L2 is a rugged and high-performance 16 Port Network Managed PoE Switch with 2 Gigabit Uplink SFP. It is designed for modern industrial networks. This switch combines efficient power delivery with seamless data transmission. It is built to handle the demands of harsh environments while ensuring long-term reliability.
With support for advanced PoE standards and Gigabit connectivity, it powers multiple devices such as IP cameras, access points and industrial controllers. Its Layer 2 switching features, combined with web-based management, make it an ideal solution for businesses seeking stability, scalability and easy control.
1. IEEE 802.3at/af/bt Compliance: This switch supports the latest PoE standards, ensuring efficient power delivery to connected devices without the need for extra cabling.
2. 16 x 1GbE Downlink Ports: Equipped with sixteen Gigabit downlink ports, it offers high-speed connectivity for multiple industrial and enterprise devices.
3. 2 x Gigabit Uplink Ports + SFP Slots: The 2 Gigabit uplink SFP slots provide flexible fibre connectivity and smooth integration with higher-level network infrastructures.
4. Power over Ethernet (PoE): Delivers both power and data through a single cable, reducing infrastructure costs and simplifying deployments.
5. Layer 2 Switching: The device supports efficient packet forwarding, VLAN management, and traffic optimisation, ensuring smooth data flow in mission-critical applications.
6. Rugged Industrial Design: The CX-NPA-16GS2D-L2 is engineered to withstand extreme temperatures, vibrations, and electrical interference, making it reliable in tough environments.
The 16 Port Network Managed PoE Switch with 2 Gigabit Uplink SFP offers more than just connectivity. It delivers power efficiency, easy scalability and advanced network management. With its durable build and intelligent features, it is the perfect choice for oil & gas, manufacturing, transportation and automation sectors where uptime is essential.
| NETWORK PORT |
16×10/100/1000Mbps 1000Base-TX RJ45 PoE Ports Port 1-2 support 24V/48V PoE (single port power MAX 90W) Port 3~16 support PoE (single port power MAX 30W) 2×1G SFP Ports 1x Console RJ45 Port
|
| ENVIRONMENT DETECTION | 1 group of input detection of environment temperature and humidity |
| PORT SPECIFICATION | 1-16 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X |
| TRANSMISSION MODE | Store and Forward (full wire speed) |
| BANDWIDTH | 56Gbps |
| PACKET FORWARDING | 41.67Mpps |
| BUFFER | 4.1M |
| TRANSMISSION DISTANCE | 10BASE-T. Cat3,4,5 UTP (≤250 meter)
100BASE-TX. Cat5 or later UTP (150 meter) 1000BASE-TX. Cat6 or later UTP (150 meter) SFP: 1000M single and multimode optical module with maximum distance ≤ 120km (depending on the optical module) |
| FLASH | 4GB |
| RAM | 8GB |
| WATT | Standby power consumption≤15W
Full-load power consumption≤20W |
| LED INDICATOR | PWR: Power LED
SYS: System LED 1-16:10/100、1000M Network connection indicator 17-18: SFP connection indicator |
| POWER INPUT | Built-in power AC：100-240Vac 50-60Hz 5.1A max 420W |
| OPERATING TEMPERATURE/HUMIDITY | -30 °C ~ + 60 °C 5% 95% RH No coagulation |
| INGRESS PROTECTION | IP30 |
| LIGHTNING PROTECTION LEVEL | 6KV |
| WEIGHT | 3.3kg/4.1kg |
| DIMENSION | 440mm*290mm*45mm
515mm*375mm*95mm |
