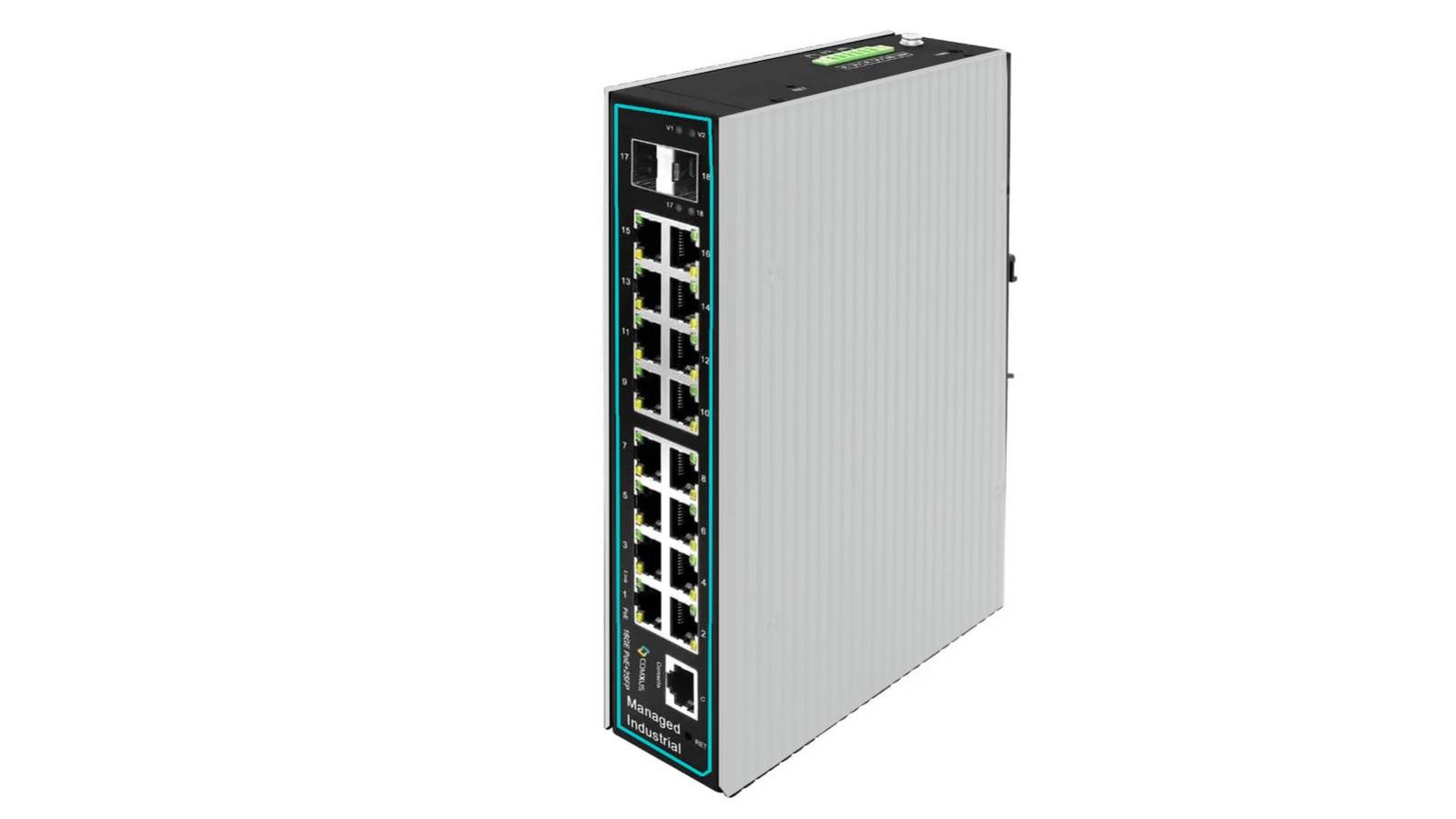

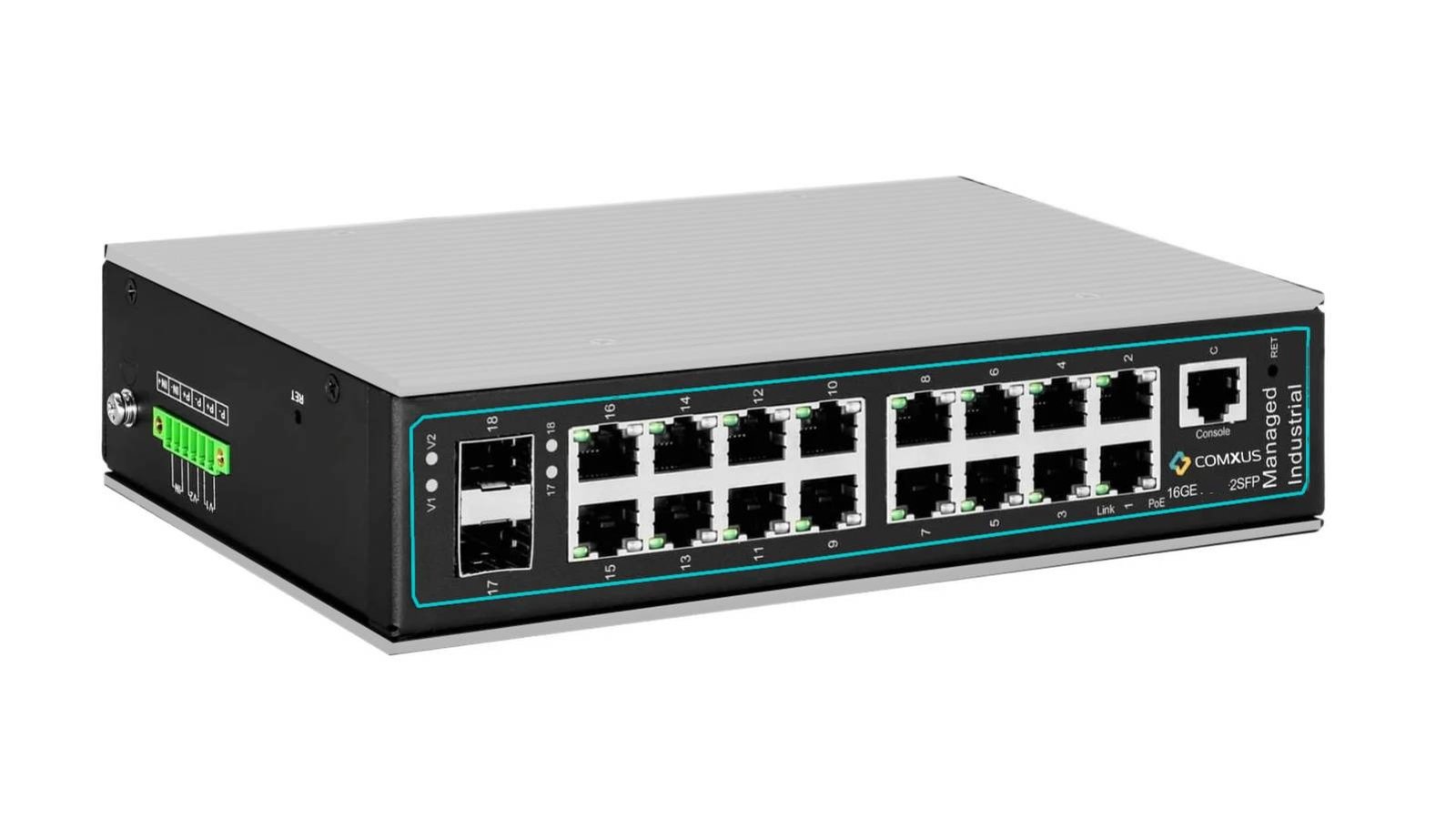

16 Port Network Industrial Managed Non-PoE Switch With 2 SFP Port

CX-NA-16GS2I-L2

  • Industrial-Grade Design
  • 1GbE Downlink Ports
  • 1GbE SFP Slots
  • Layer 2 Switching
  • Web-Based Management

Certifications:

CE

The Comxus CX-NA-16GS2I-L2 is an industrial-grade switch designed to deliver robust and reliable network performance. Featuring 1GbE ports and supporting 1GbE uplinks, this switch is engineered for industrial environments where high durability and performance are critical. The CX-NA-16GS2I-L2 provides efficient power distribution to connected devices while ensuring seamless data transmission, making it an ideal choice for demanding industrial applications.

  • Industrial-Grade Design: Built to withstand harsh industrial environments, ensuring reliable performance under extreme conditions.
  • 1GbE Downlink Ports: Equipped with multiple Gigabit downlink ports for high-speed network connectivity.
  • 1GbE: Offers reliable Gigabit uplink ports for seamless data transmission to higher-level network infrastructures.
  • 1GbE SFP Slots: Includes Gigabit SFP slots for flexible fiber optic connectivity options.
  • Layer 2 Switching: Operates at Layer 2 of the OSI model, ensuring efficient data packet forwarding and network management.
  • Web-Based Management: Features a web management interface for easy configuration and monitoring of network settings and performance.

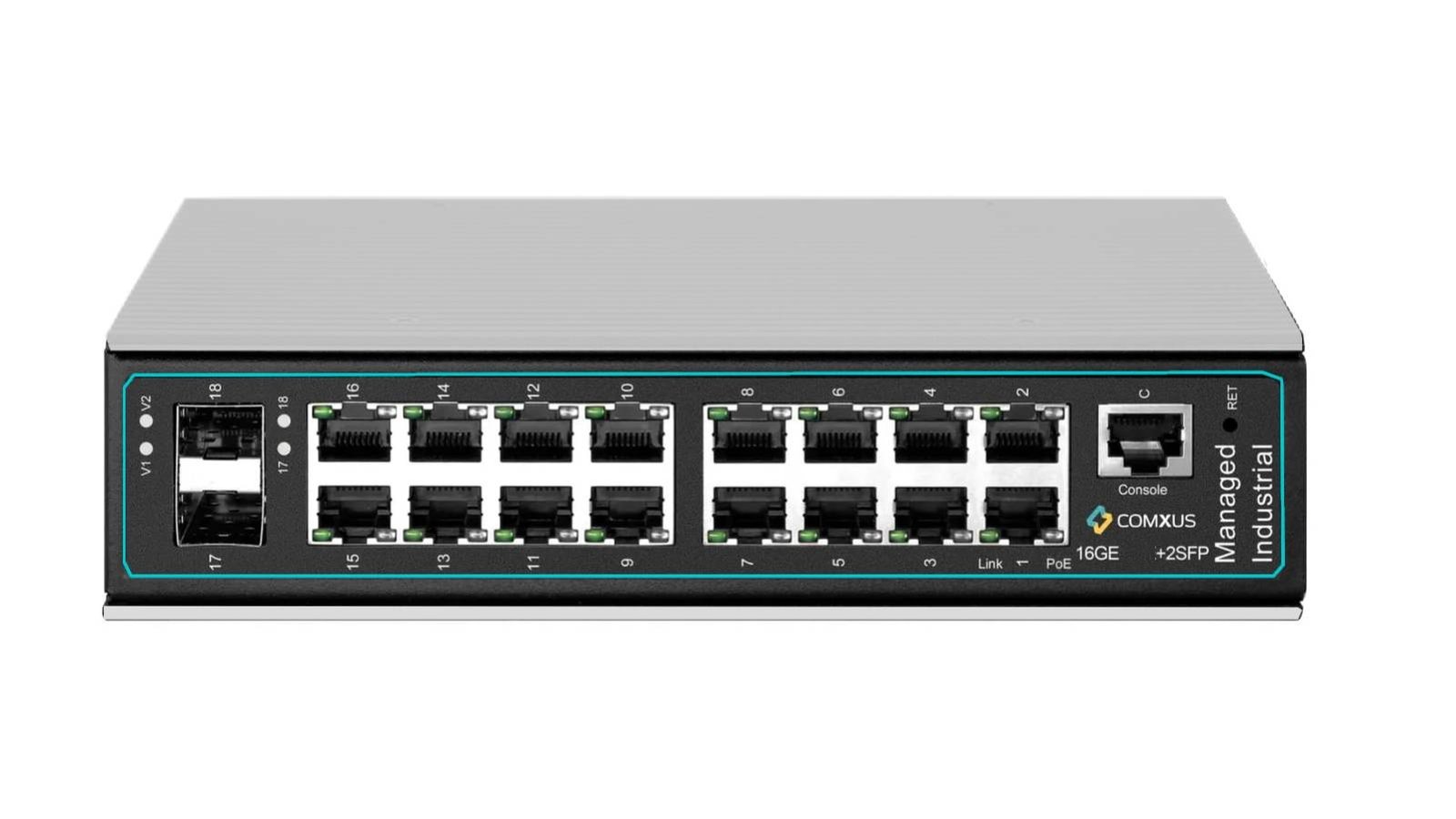

NETWORK PORT  16×10/100/1000Mbps 1000Base-TX RJ45 Ports

2x1G SFP Ports

1x Console RJ45 Port

ENVIRONMENT DETECTION  1 group of input detection of environment temperature and humidity
PORT SPECIFICATION  1-16 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X
TRANSMISSION MODE  Store and Forward (full wire speed)
BANDWIDTH  128Gbps
PACKET FORWARDING  40.32Mpps
BUFFER  4.1M
TRANSMISSION DISTANCE  10BASE-TX: Cat3,4,5 UTP (≤250 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

1000BASE-TX: Cat6 or later UTP (≤1000 meter)

1000BASE-SX: 62.5μm/50μm MMF(2m~550m)

1000BASE-LX: 62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

BIDI supported

FLASH  4GB
RAM  8GB
WATT  Full-load power consumption≤30W
LED INDICATOR  V1: main power indicator

V2: slave power indicator

17 18: (optical port connection indicator)

Port: (network connection indicator green / 100M + Orange / 1000M)

POWER INPUT  Built in AC: 100~240V 50/60HZ
OPERATING TEMPERATURE/HUMIDITY  -30°C ~ +85°C 5% 95% RH No coagulation
INGRESS PROTECTION  IP40
LIGHTNING PROTECTION LEVEL  6KV
Alarm  In/ Out (Optional)
WEIGHT  1.4kg/2.1kg
DIMENSION  295mm*195mm*45mm

410mm*275mm*95mm
