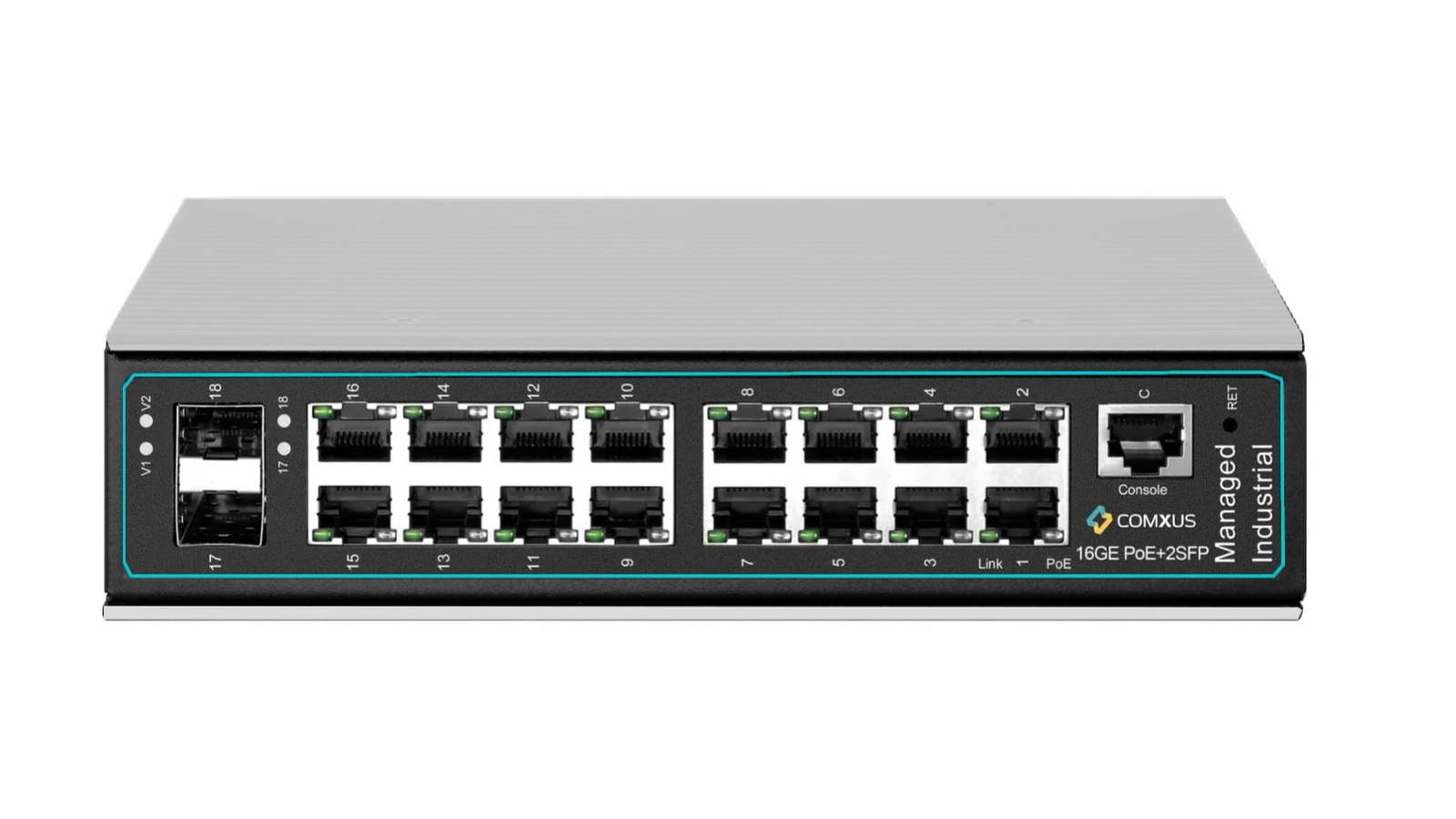

CX-NA-16GS2I-L2-FRONT IMAGE

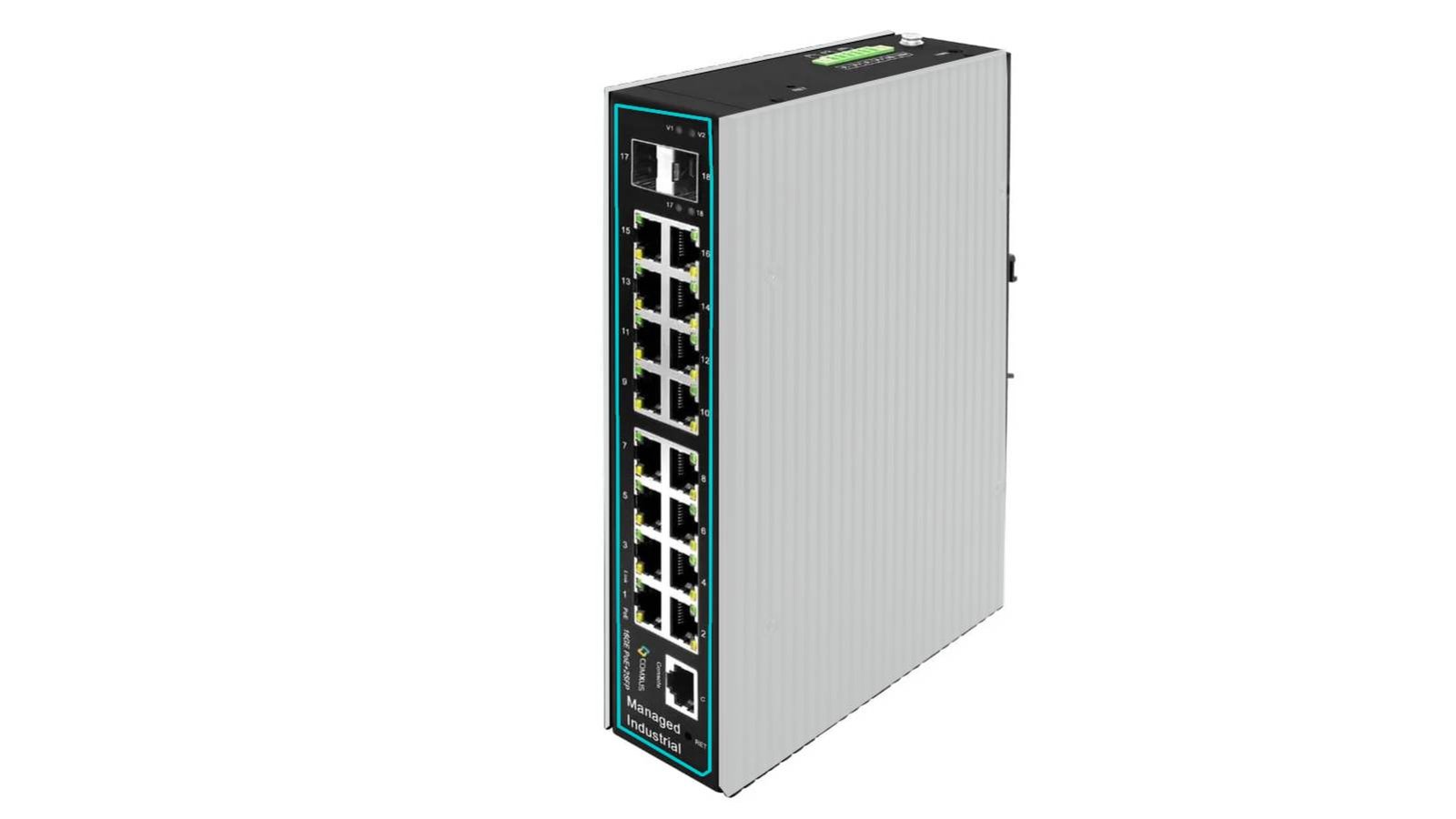

CX-NA-16GS2I-L2 tower

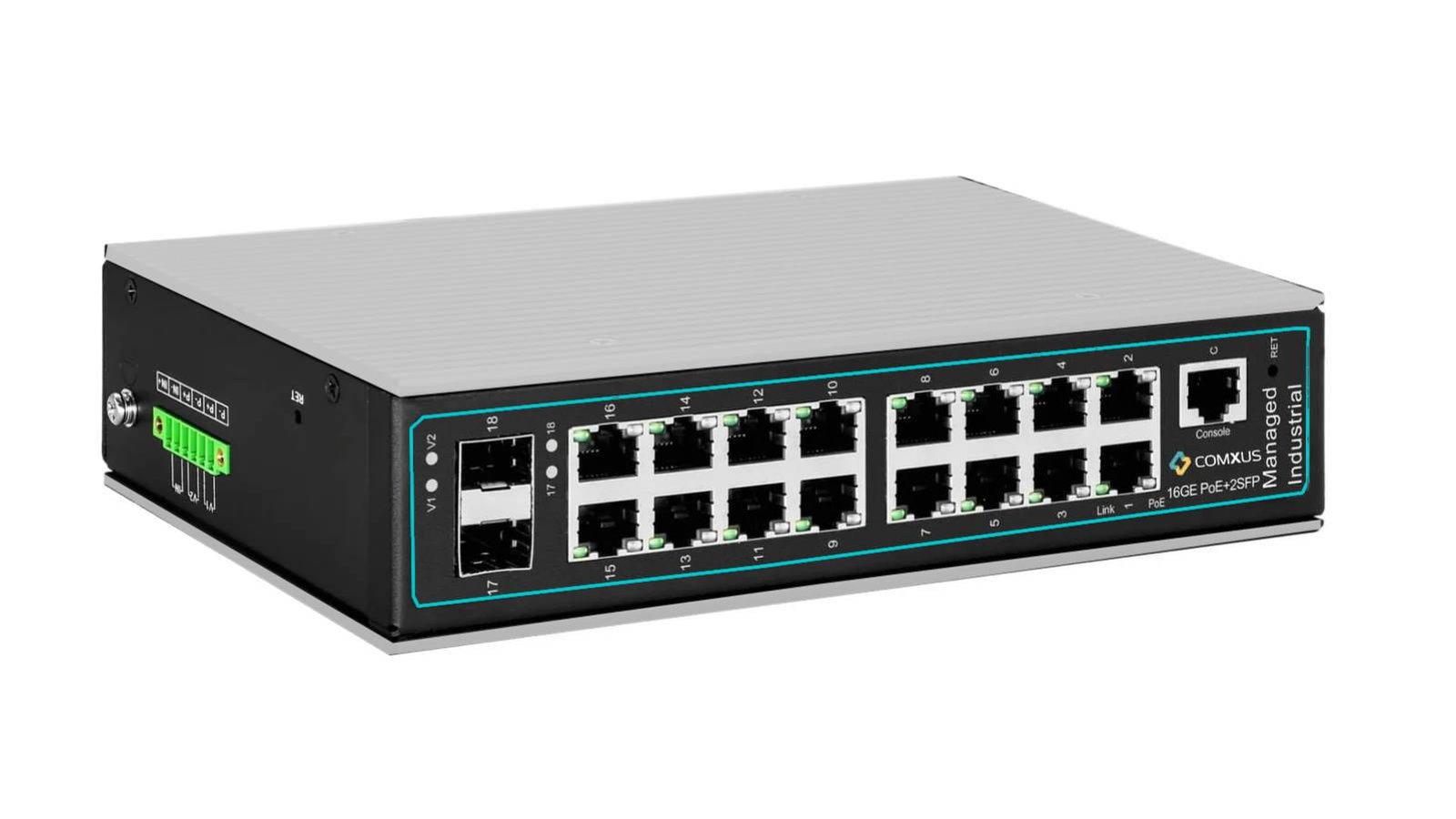

CX-NA-16GS2I-L2-SIDE-LOOK

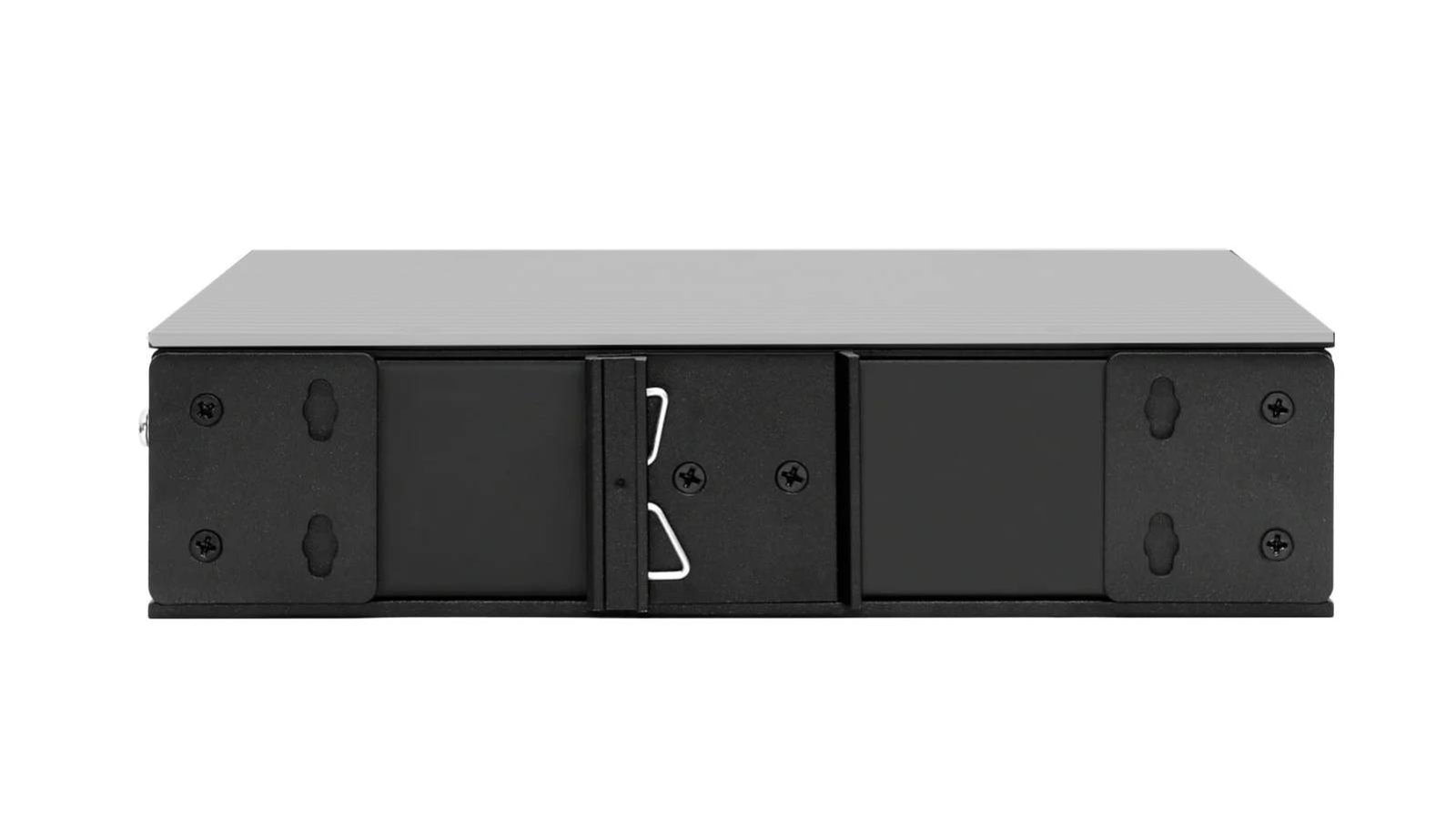

CX-NA-16GS2I-L2-BACK VIEW

16 Port Managed Industrial Grade Switch With 2 Giga Uplink SFP​

CX-NPA-8GS4I-L2

  • Industrial-Grade Design
  • IEEE 802.3at/af/bt Compliance
  • 1GbE Downlink Ports
  • 1GbE SFP Slots
  • Layer 2 Switching
  • Web-Based Management
Get A Quote

Certifications:

CE
16 Port Managed Industrial Grade Switch with 2 Giga Uplink SFP Ports is a high-capacity, feature-rich networking solution designed for industrial environments requiring scalability, reliability, and advanced management capabilities. Engineered to handle harsh conditions, this switch ensures robust performance for mission-critical applications.
  • Industrial-Grade Design: Built to withstand harsh industrial environments, ensuring reliable performance under extreme conditions.
  • IEEE 802.3at/af/bt Compliance: Supports IEEE 802.3at/af/bt PoE standards, providing efficient power delivery to connected devices.
  • 1GbE Downlink Ports: Equipped with multiple Gigabit downlink ports for high-speed network connectivity.
  • 1GbE: Offers reliable Gigabit uplink ports for seamless data transmission to higher-level network infrastructures.
  • 1GbE SFP Slots: Includes Gigabit SFP slots for flexible fiber optic connectivity options.
  • Layer 2 Switching: Operates at Layer 2 of the OSI model, ensuring efficient data packet forwarding and network management.
  • Web-Based Management: Features a web management interface for easy configuration and monitoring of network settings and performance.
  • Power over Ethernet (PoE): Provides efficient power distribution to connected devices, reducing the need for separate power supplies.
NETWORK PORT  16×10/100/1000Mbps 1000Base-TX RJ45

PoE Ports

Port 1~2support BT PoE (single port power

MAX 90W)

Port 3~16 support PoE (single port power

MAX 30W)

2x1G SFP Ports

1x Console RJ45 Port
ENVIRONMENT DETECTION  1 group of input detection of environment temperature and humidity
PORT SPECIFICATION  1-16 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X
AI FUNCTION  PoE dog auto execution when PoE is on; auto detection and fault device resetting.
TRANSMISSION MODE  Store and Forward (full wire speed)
BANDWIDTH  128Gbps
PACKET FORWARDING  40.32Mpps
BUFFER  4.1M
TRANSMISSION DISTANCE  10BASE-TX: Cat3,4,5 UTP (≤250 meter)

100BASE-TX: Cat5 or later UTP (≤100 meter)

1000BASE-TX: Cat6 or later UTP (≤1000 meter)

1000BASE-SX: 62.5μm/50μm MMF(2m~550m)

1000BASE-LX: 62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

BIDI supported
FLASH  4GB
RAM  8GB
WATT  Standby power consumption≤15W Full-load

power consumption≤25W Full-load power

with Poe ≤600W
LED INDICATOR  17-18:(SFP LED)

Port1-16:(Green=10/100/1000M : Orange=PoE on

PWR:(Power/system LED)

HW:(Ring network ON LED)
POWER INPUT  2 group of independent power input SW: DC 12-57V; PoE: DC 37-57V
OPERATING TEMPERATURE/HUMIDITY  -30°C ~ +85°C 5% 95% RH No coagulation
INGRESS PROTECTION  IP40
LIGHTNING PROTECTION LEVEL  6KV
Alarm  In/ Out (Optional)
WEIGHT  1kg
DIMENSION  160mm x 130mm x 45mm
