10G SFP Module

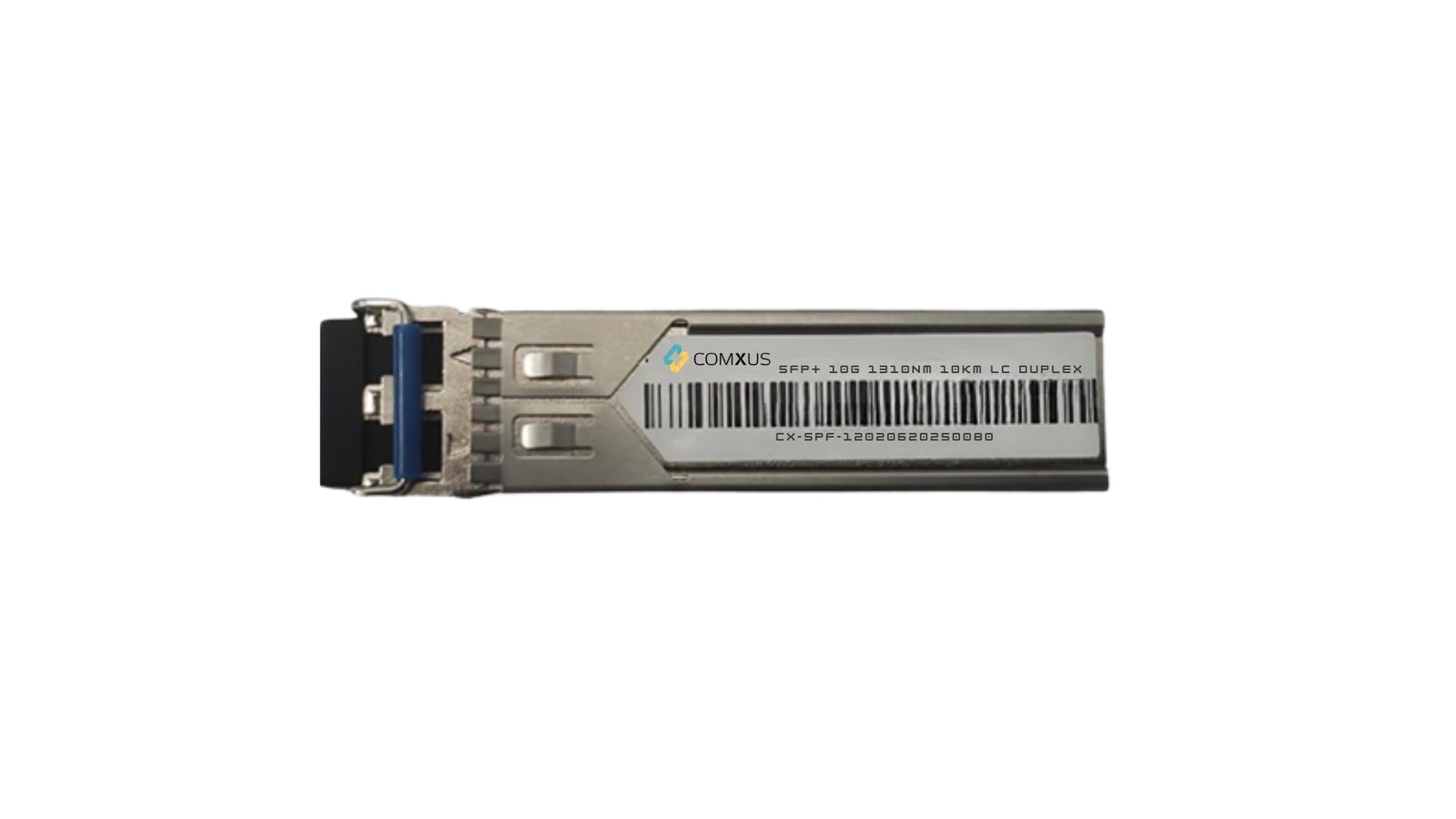

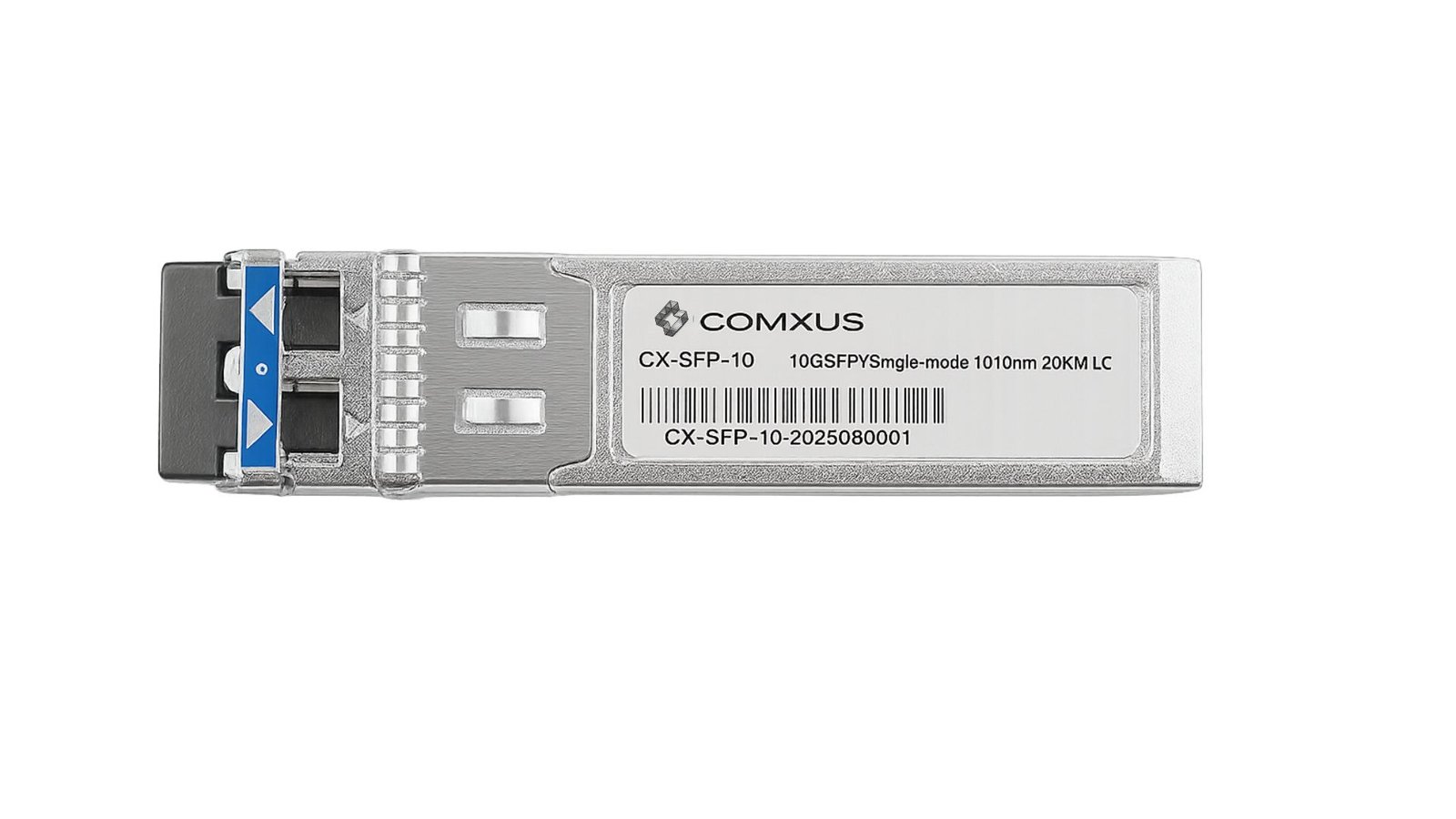

CX-SFP-10

  • 10G SFP+ module supporting 10GBASE-LR
  • 1310 nm FP/DFB laser for long-distance SMF transmission
  • Optical reach up to 10 km
  • Industrial temperature range: –40°C to +85°C
  • Duplex LC optical connector
  • Hot-pluggable SFP+ form factor
  • Low power consumption (<1.5 W)
  • All-metal housing for superior EMI performance
  • Digital Diagnostics Monitoring (DDM), compliant with SFF-8472
  • Fully compliant with IEEE 802.3ae and SFF-8431 standards
  • RoHS-6 compliant

Certifications:

CE

The CX-SFP-10 is a high-performance industrial-grade 10G SFP+ optical transceiver designed for harsh and mission-critical environments. It operates over single-mode fiber up to 10km using a 1310 nm laser and maintains reliable performance across an extended temperature range of –40°C to +85°C. With low power consumption, strong EMI shielding, and full Digital Diagnostic Monitoring (DDM/DOM), this module is ideal for industrial networks, outdoor telecom deployments, and long-reach 10G Ethernet applications.

Transceiver Type SFP+
Speed 10.3125 Gbps (10GBASE-LR)
Wavelength 1310 nm
Fiber Media Support Single-Mode Fiber (9/125 μm)
Maximum Distance 10 km
Connector Type Duplex LC connector
Operating Temperature 40°C to +85°C (Industrial)
Storage Temperature 40°C to +85°C
Operating Voltage 3.3 V
Power Consumption < 1.5 W



CX-SFP-10
