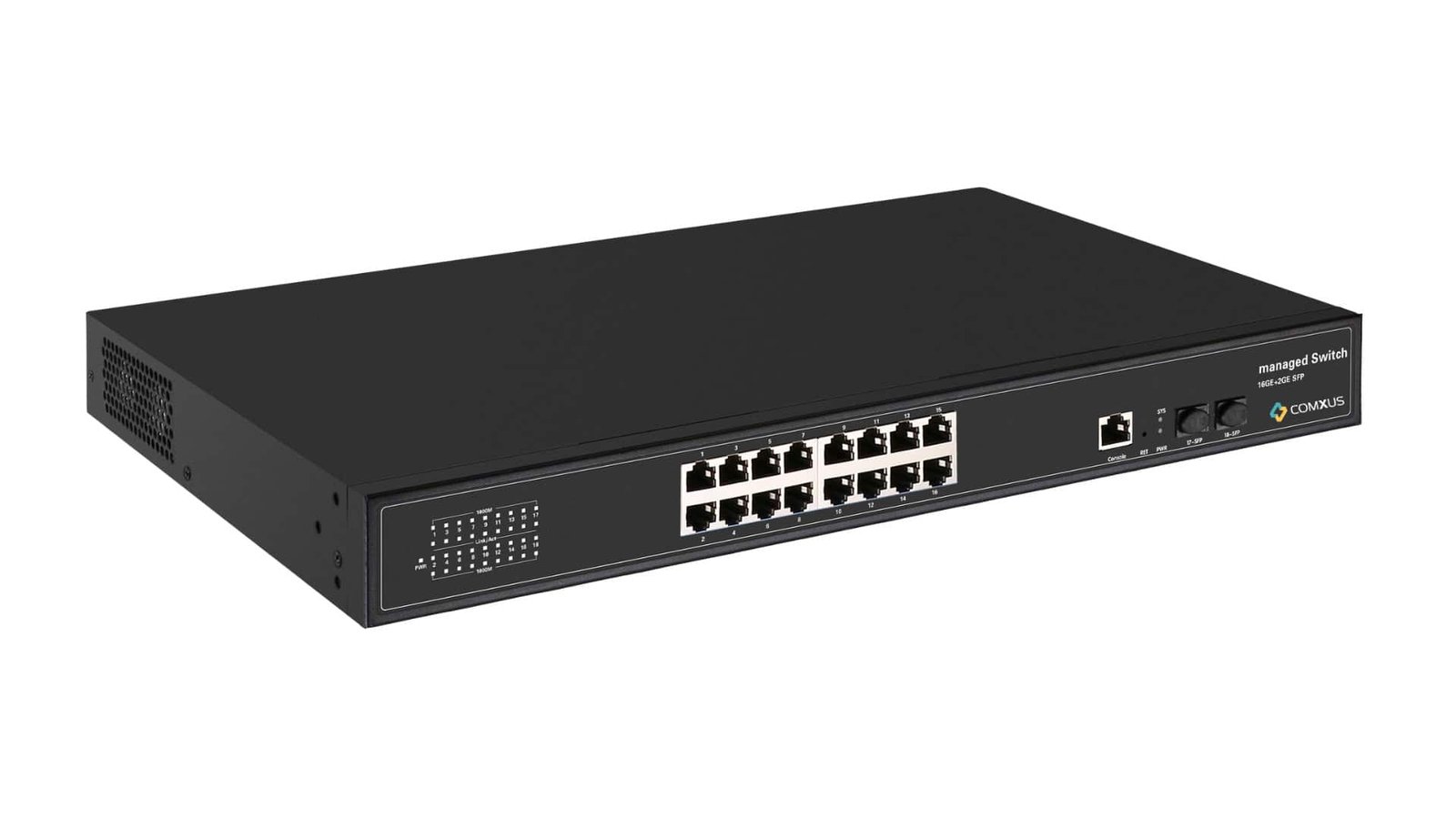

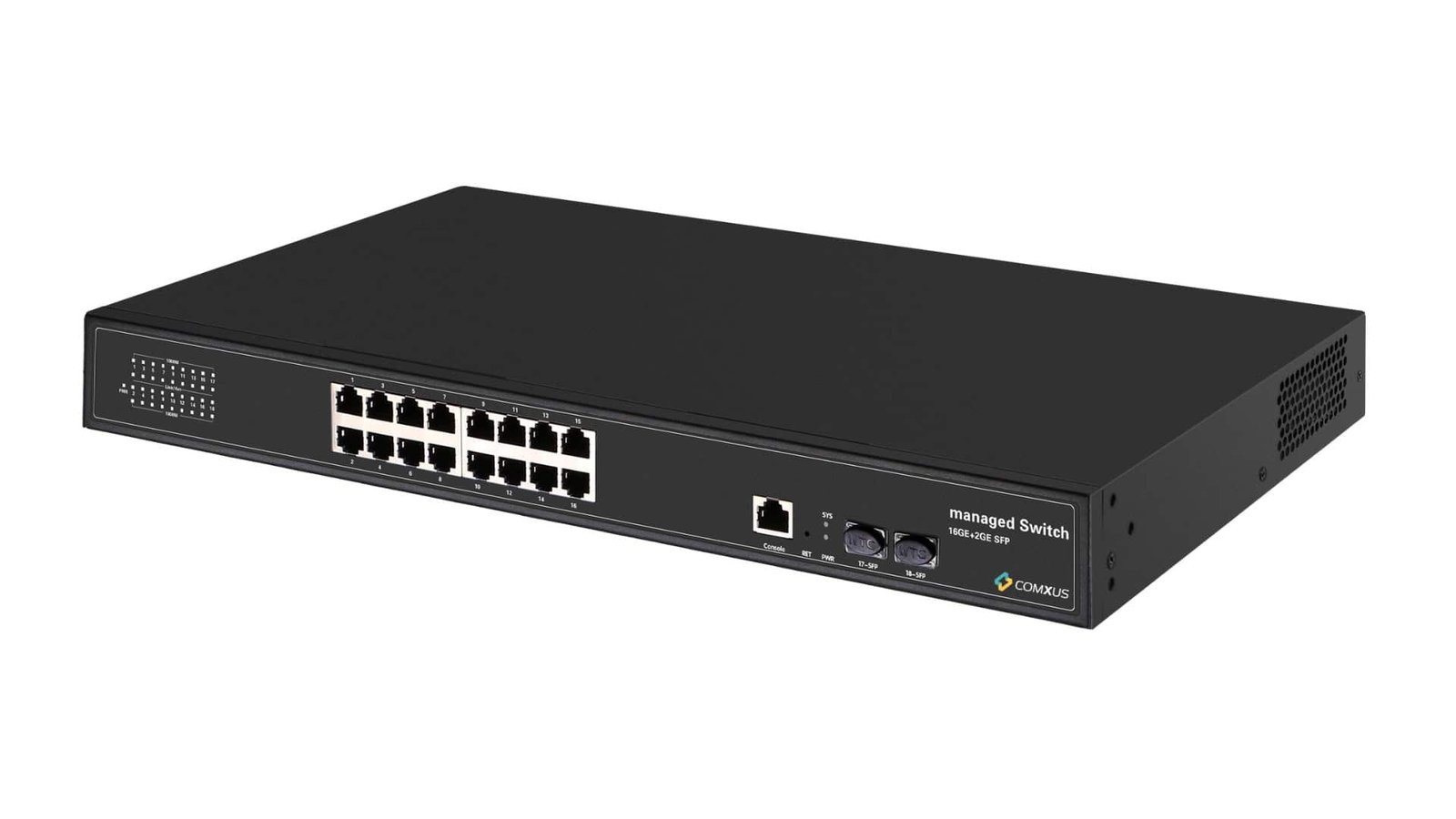

L2 16 PORT NETWORK MANAGED SWITCH WITH 2G Upink SFP
Perfect Compact Switch For your commercial networking needs
Product Features
• IEEE 802.3at Compliance: Supports IEEE 802.3at standards, providing efficient power delivery to connected devices.
• 1GbE Downlink Ports: Equipped with multiple Gigabit downlink ports for high-speed network connectivity.
• 1GbE: Offers reliable Gigabit uplink ports for seamless data transmission to higher-level network infrastructures.
• 1GbE SFP Slots: Includes Gigabit SFP slots for flexible fiber optic connectivity options.
• Layer 2 Switching: Operates at Layer 2 of the OSI model, ensuring efficient data packet forwarding and network management.
• Web-Based Management: Features a web management interface for easy configuration and monitoring of network settings and performance.
• High Availability: Designed for high availability to minimize downtime and ensure continuous network operation.
• Scalability: Supports high scalability to accommodate growing network demands and expanding industrial setups.
The Comxus CX-NA-16GS2D-L2 is designed to deliver robust and reliable network performance. Featuring 1GbE ports and supporting 1GbE uplinks, this switch is engineered for industrial environments where high durability and performance are critical. The CX-NPA-16GS2I-L2 provides efficient power distribution to connected devices while ensuring seamless data transmission, making it an ideal choice for demanding industrial applications.
| NETWORK PORT | 16x10/100/1000Mbps 1000Base-TX RJ45 Ports 2x1G SFP Ports 1x Console RJ45 Port |
| ENVIRONMENT DETECTION | 1 group of input detection of environment temperature and humidity |
| PORT SPECIFICATION | 1-16 port 10/100/1000BaseT(X)auto detection, AUTO-MDI/MDI-X |
| TRANSMISSION MODE | Store and Forward (full wire speed) |
| BANDWIDTH | 56G/128G Gbps |
| PACKET FORWARDING | 41.67Mpps |
| BUFFER | 4.1M |
| TRANSMISSION DISTANCE | 10BASE-T . Cat3,4,5 UTP(≤250 meter) 100BASE-TX . Cat5 or later UTP(150 meter) 1000BASE-TX . Cat6 or later UTP(150 meter) SFP: 1000M single and multimode optical module with maximum distance ≤ 120km (depending on the optical module) |
| FLASH | 128M |
| RAM | 128M |
| WATT | Standby power consumption≤15W Full-load power consumption≤20W |
| LED INDICATOR | PWR:Power LED SYS:System LED 1-16:10/100.1000M Network connection indicator 17-18:SFP connection indicator |

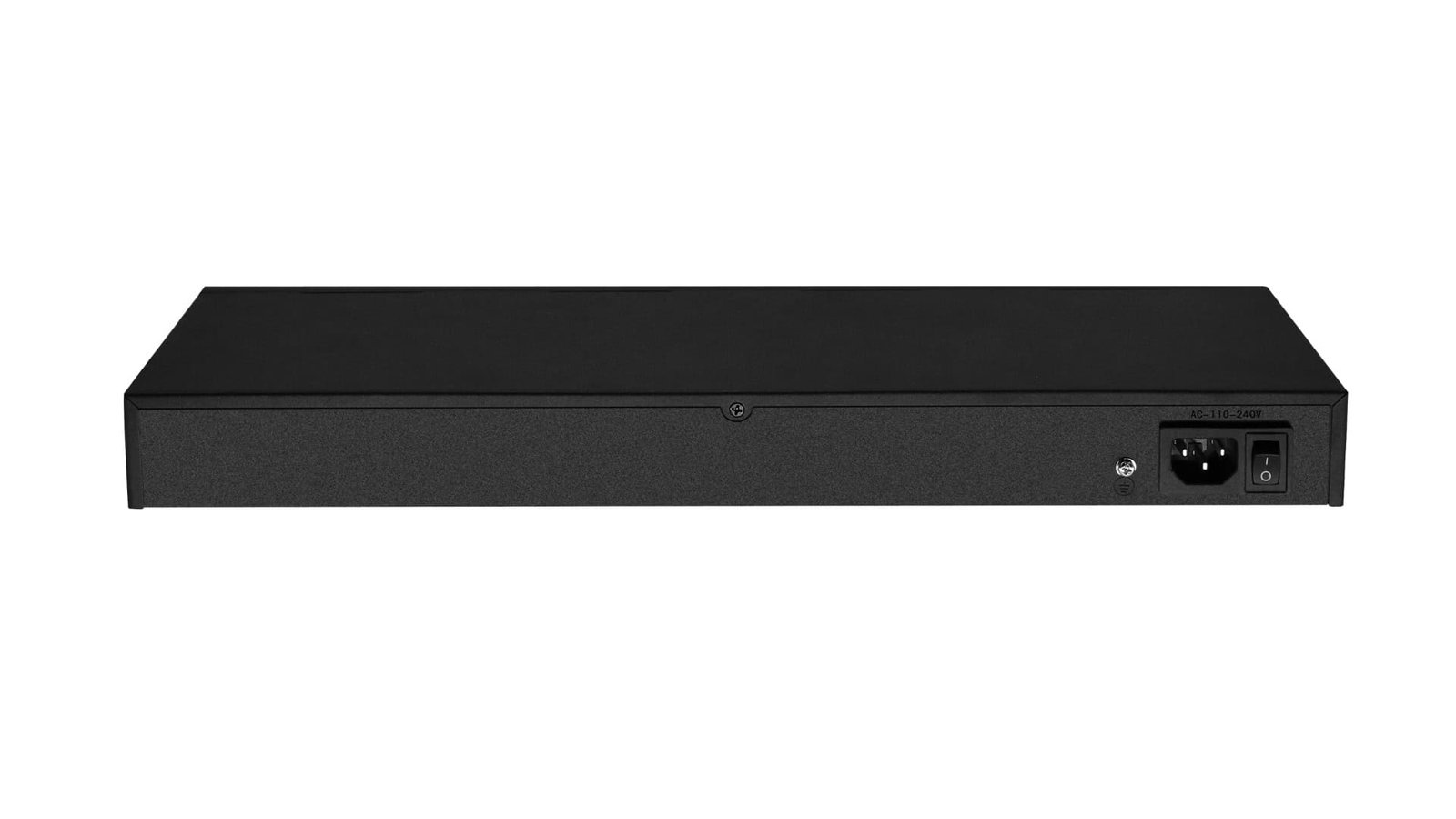

| POWER INPUT | Built-in power AC.100-240Vac 50-60Hz 0.3A max 20W |
| OPERATING TEMPERATURE/HUMIDITY | -40 +75° C; 5%~95% RH |
| INGRESS PROTECTION | IP30 |
| LIGHTNING PROTECTION LEVEL | 6KV |
| WEIGHT | 2.0kg/ 2.7kg |
| DIMENSION | 440mm*200mm*45mm 515mm*300mm*95mm |
| INSTALLATION | Rack-mount |
